VoIP Audio Management Server for Network PA & BGM Systems

  • High-Quality Audio Playback
    Supports up to 320 kbps HD MP3 audio files and streaming media for background music playback with real-time or scheduled loop tasks across single or multiple zones.
  • Flexible Zone & Group Management
    Unlimited grouping capability allows users to freely create and manage zones based on different sites, functions, or devices with a simple and intuitive system setup.
  • Advanced Task Scheduling
    Supports multiple task types, including Real-time tasks,Time-based rule tasks and Triggered tasks, enables loop playback within defined time periods for automated operation.
  • Third-Party System Integration*
    Supports SIP or IMS relay creation for connection with external SIP servers or telecom carriers, enabling inbound/outbound calling and centralized call control. * Working with VOlP-100 system manager
  • Stable Server-Grade Platform
    Powered by an Intel® Core™ processor and enterprise-class components to ensure stable, long-term operation in mission-critical environments.

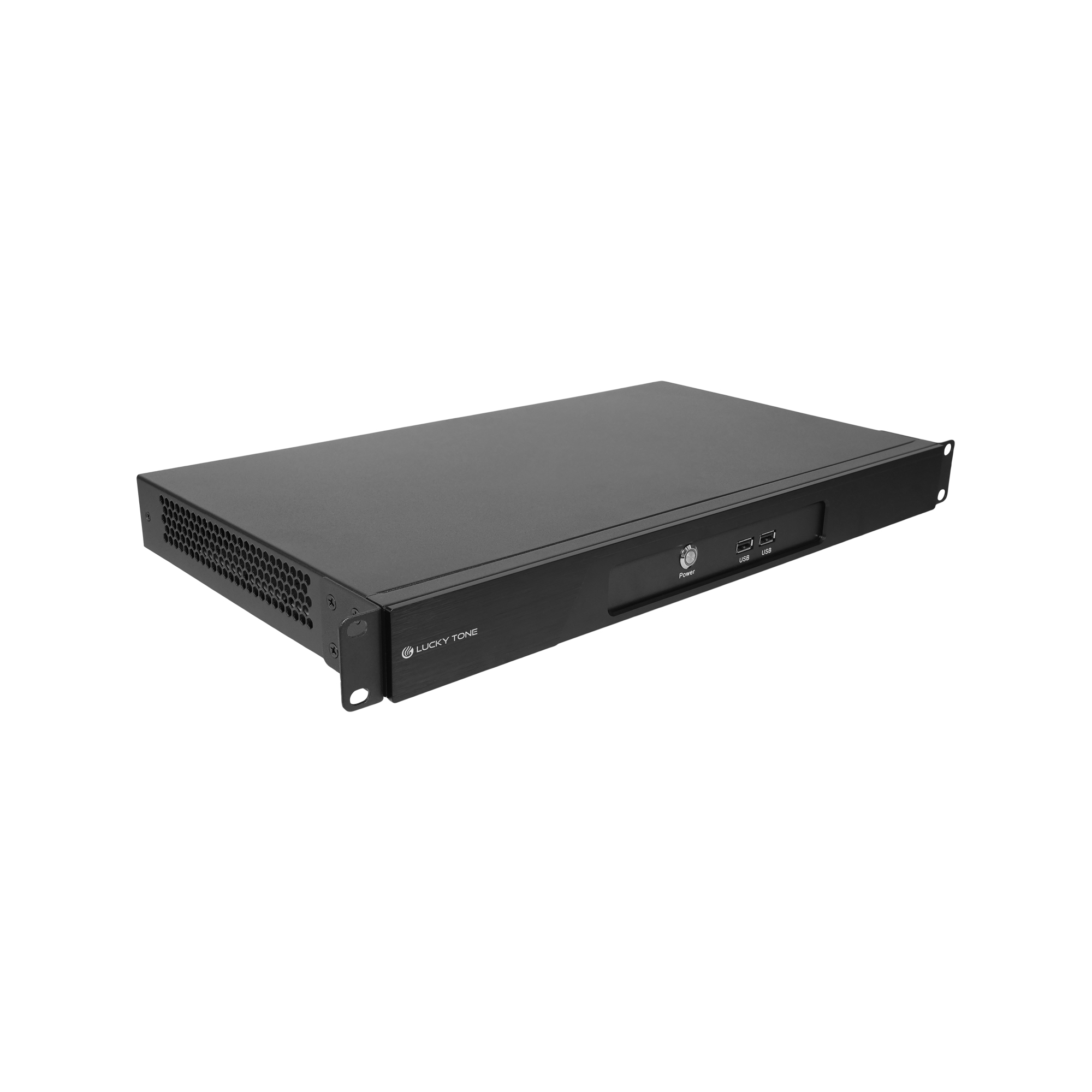

  • Compact 1U Rackmount Design
    Space-saving 1U chassis suitable for standard 19-inch racks, ideal for equipment rooms and data centers.
  • Reliable Network Connectivity
    Gigabit LAN interface ensures stable and secure data transmission for IP audio systems.
Model
VOIP-SMR
Power Supply
AC 110–240 V or DC 12 V, 5 A
Processor
Intel® Core™ i5-3317U (Dual-Core / 4 Threads, 1.7 GHz)
Graphics
Integrated Graphics
Memory
DDR3 DIMM, 4 GB installed
Storage
1× SATA 3.0 + 1× mSATA; 128 GB mSATA installed

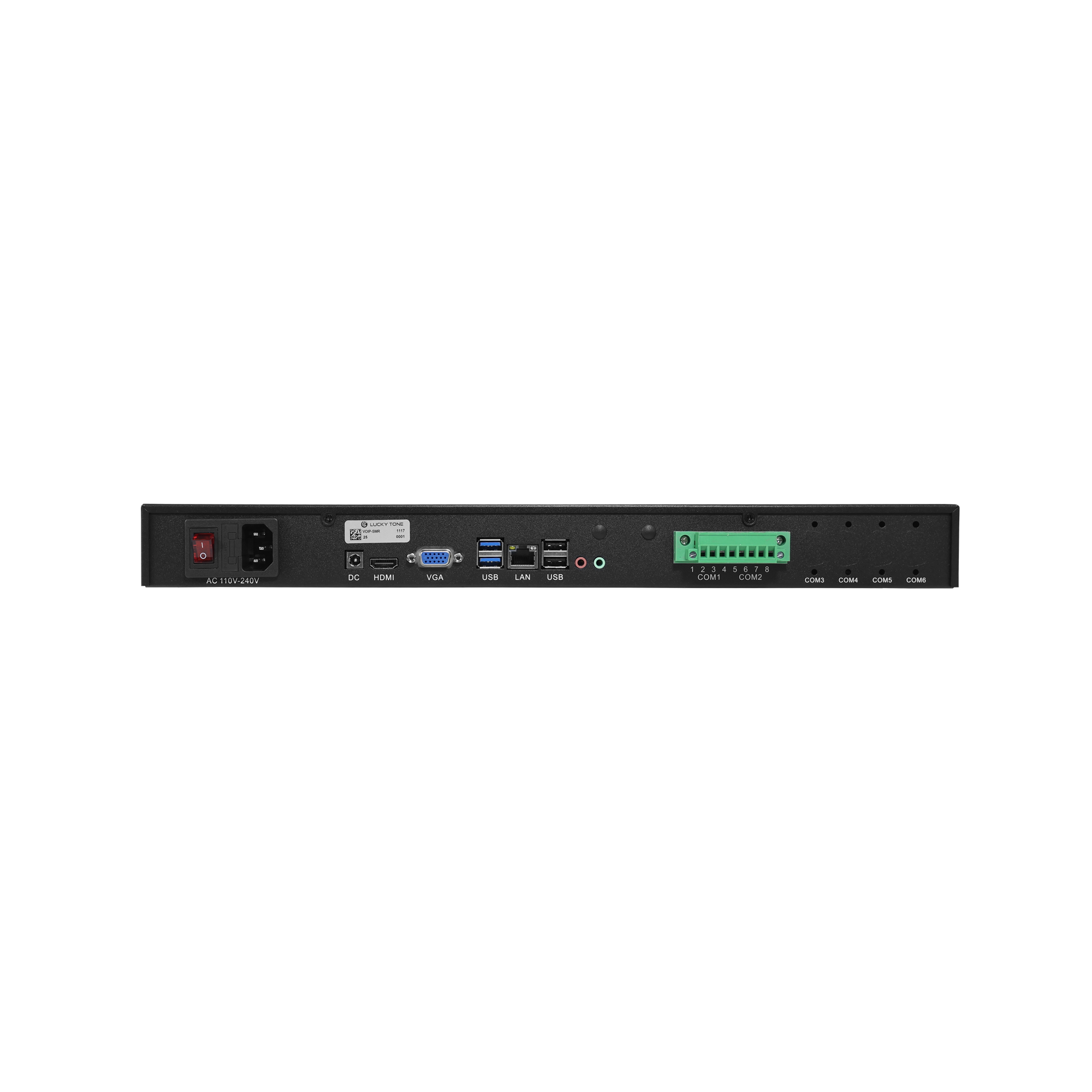

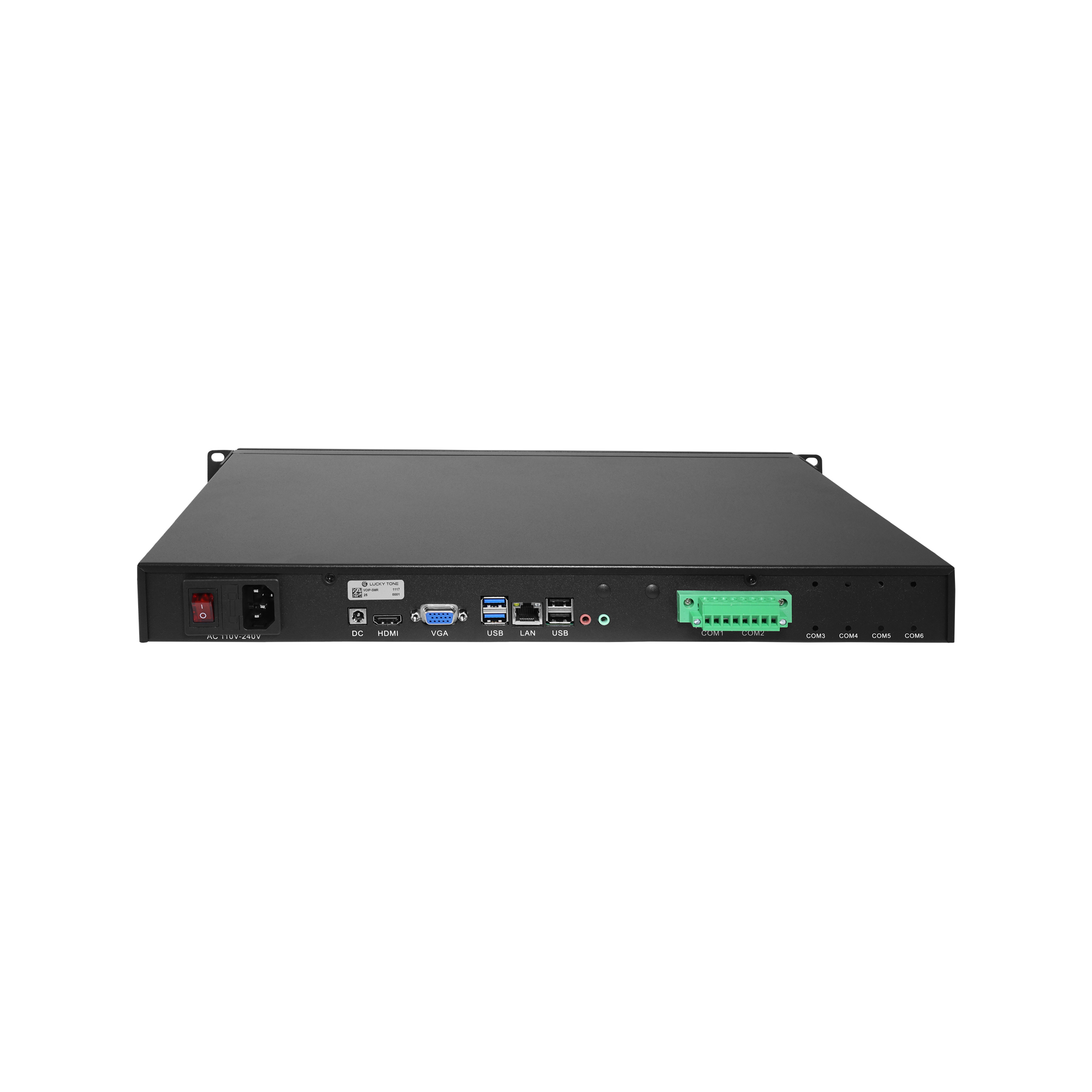

Rear I/O
2× USB 3.0, 2× USB 2.0, 1× Gigabit Ethernet, 1× HDMI, 1× VGA

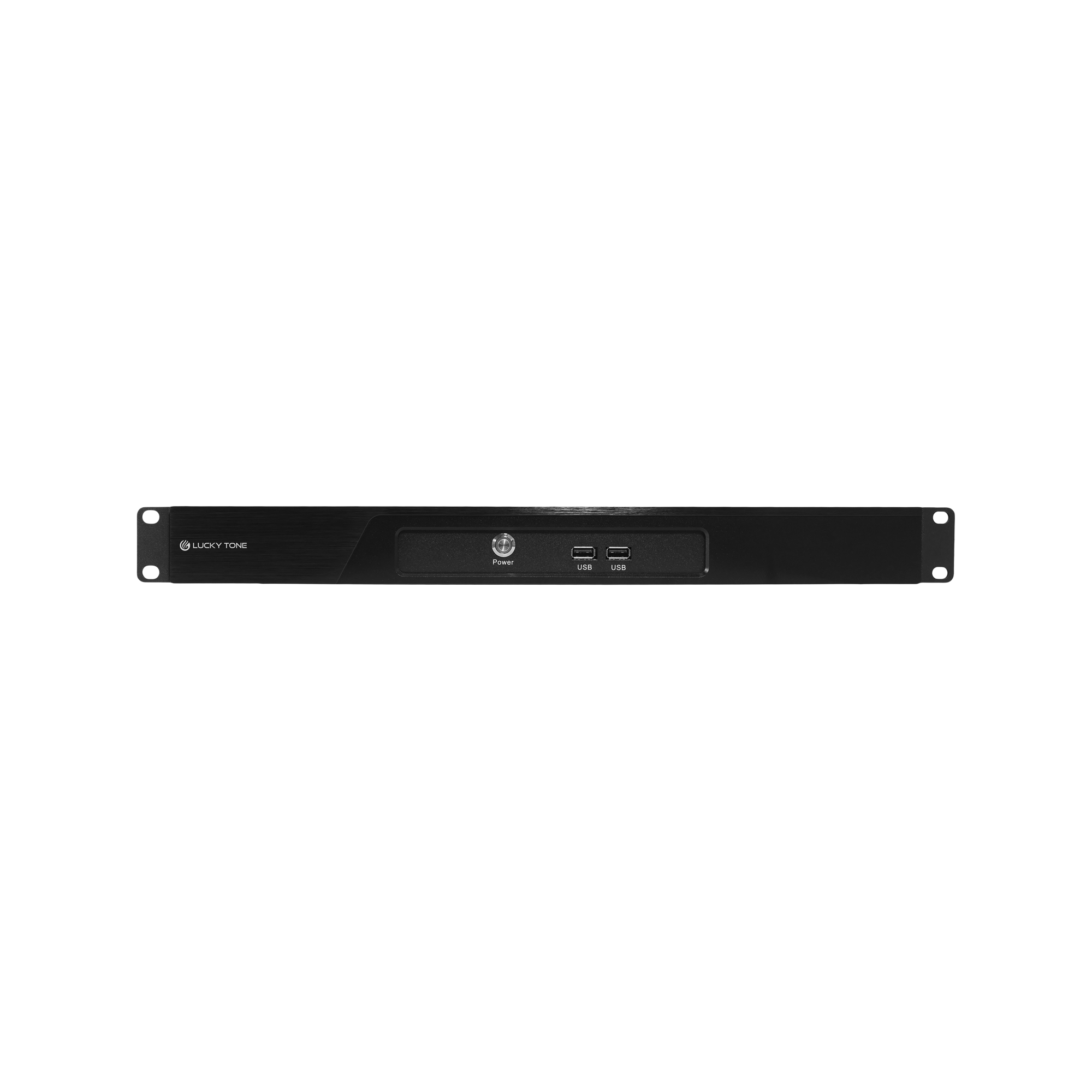

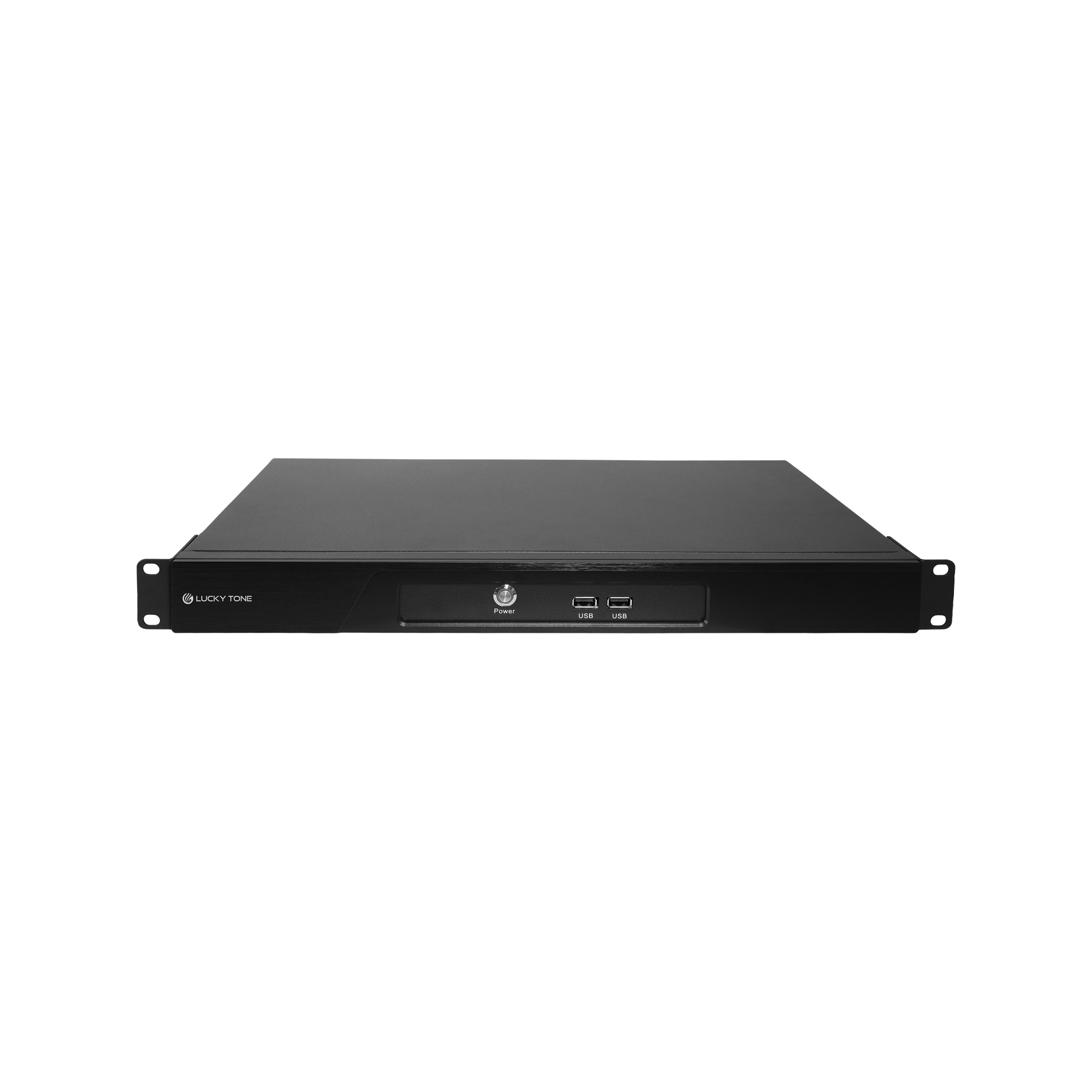

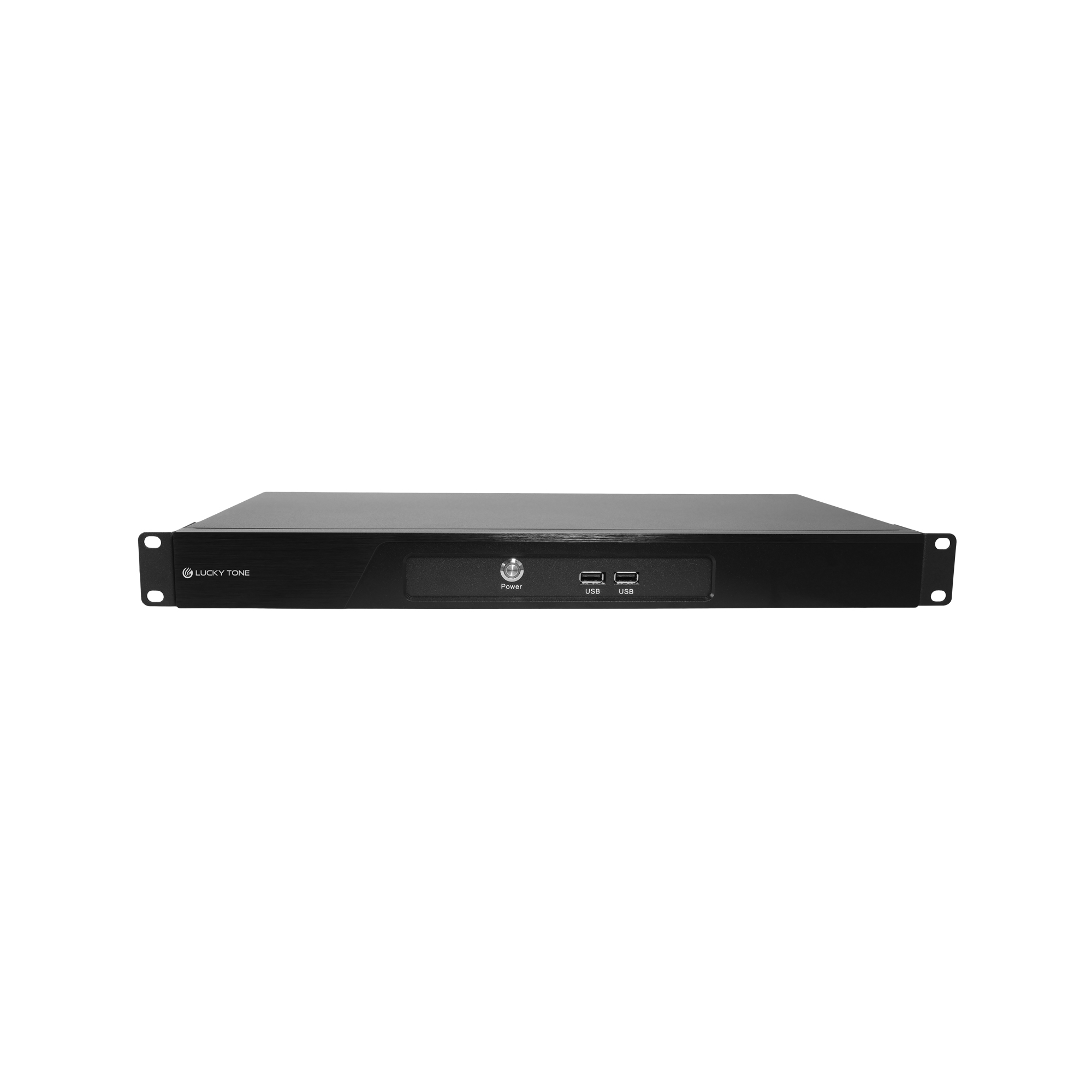

Front I/O
2× USB 2.0, Power Switch
Operating Temperature
0℃ to 50℃
Operating Humidity
-20% to 80% RH (Non-condensing)
Mounting
Rackmount or Desktop
Dimensions (W×D×H)
440 × 250 × 45 mm
Finish
Matt Black
Net Weight
3.24kg
