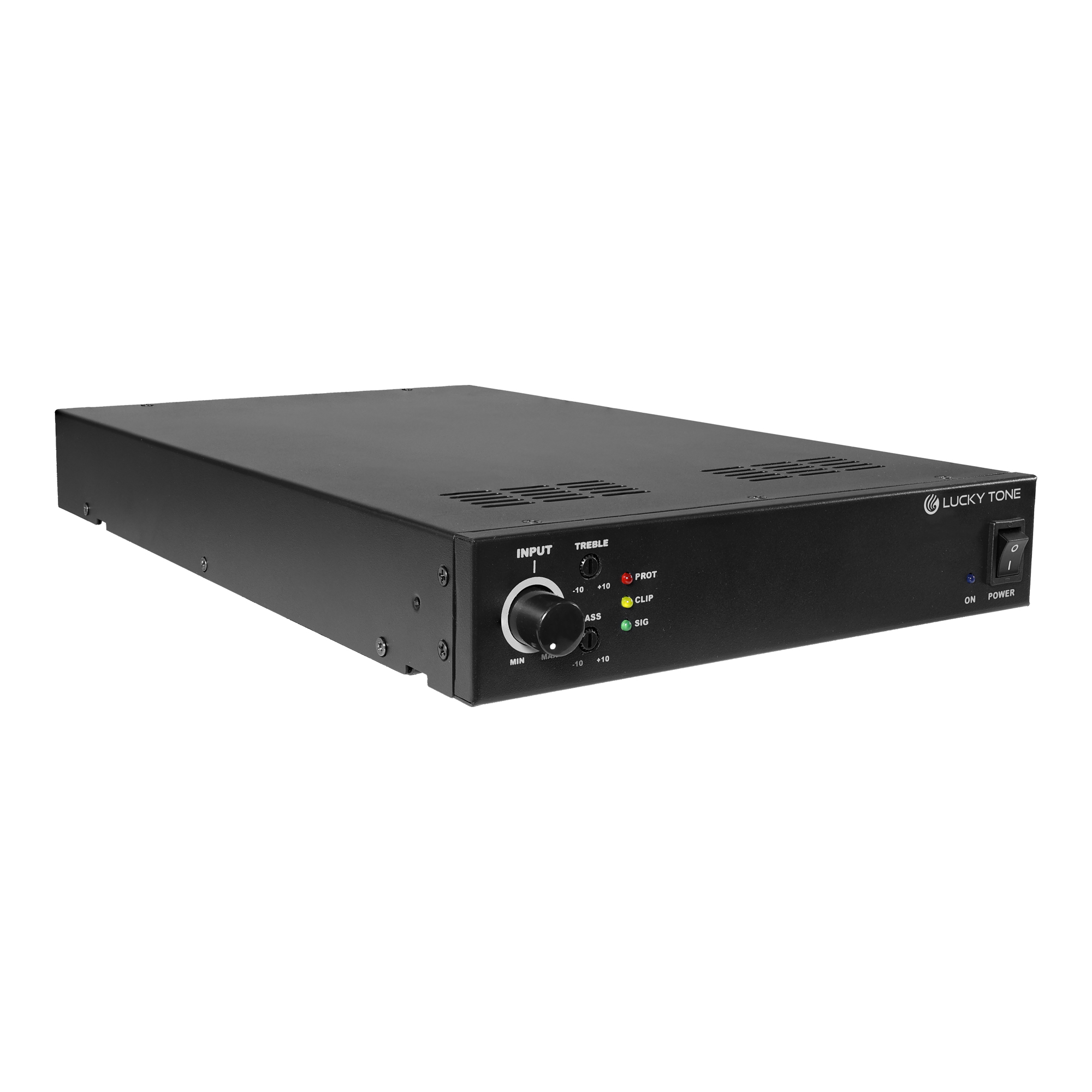

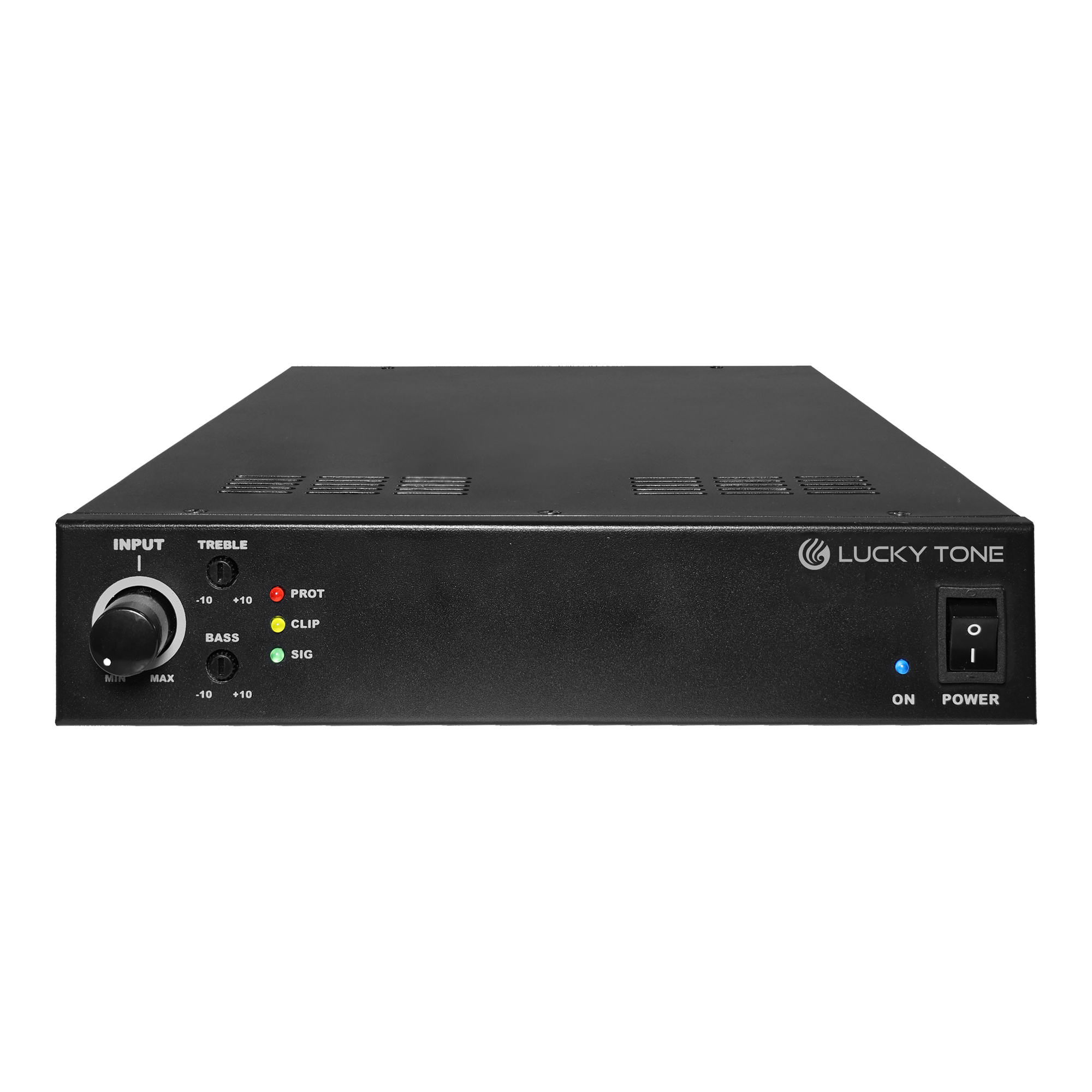

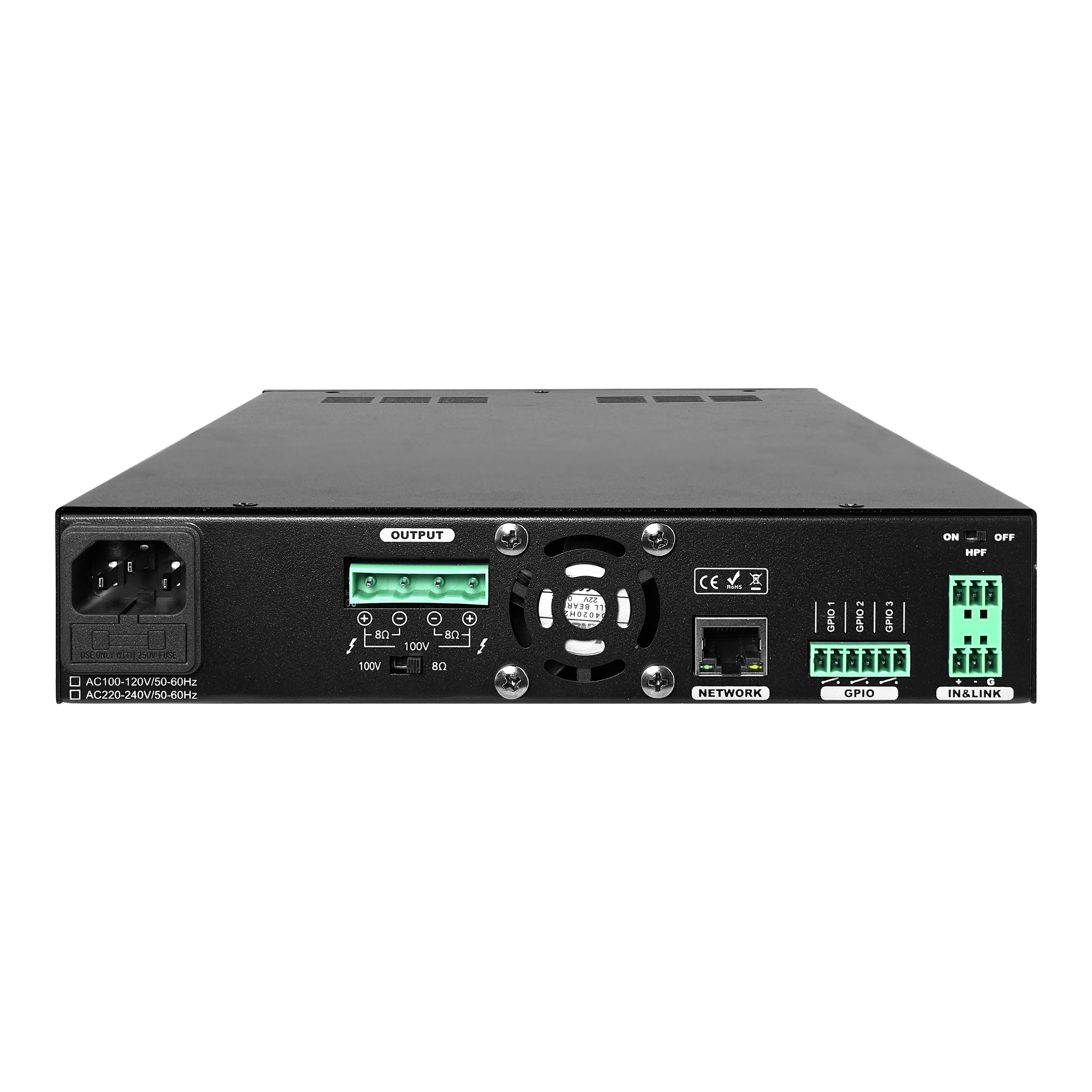

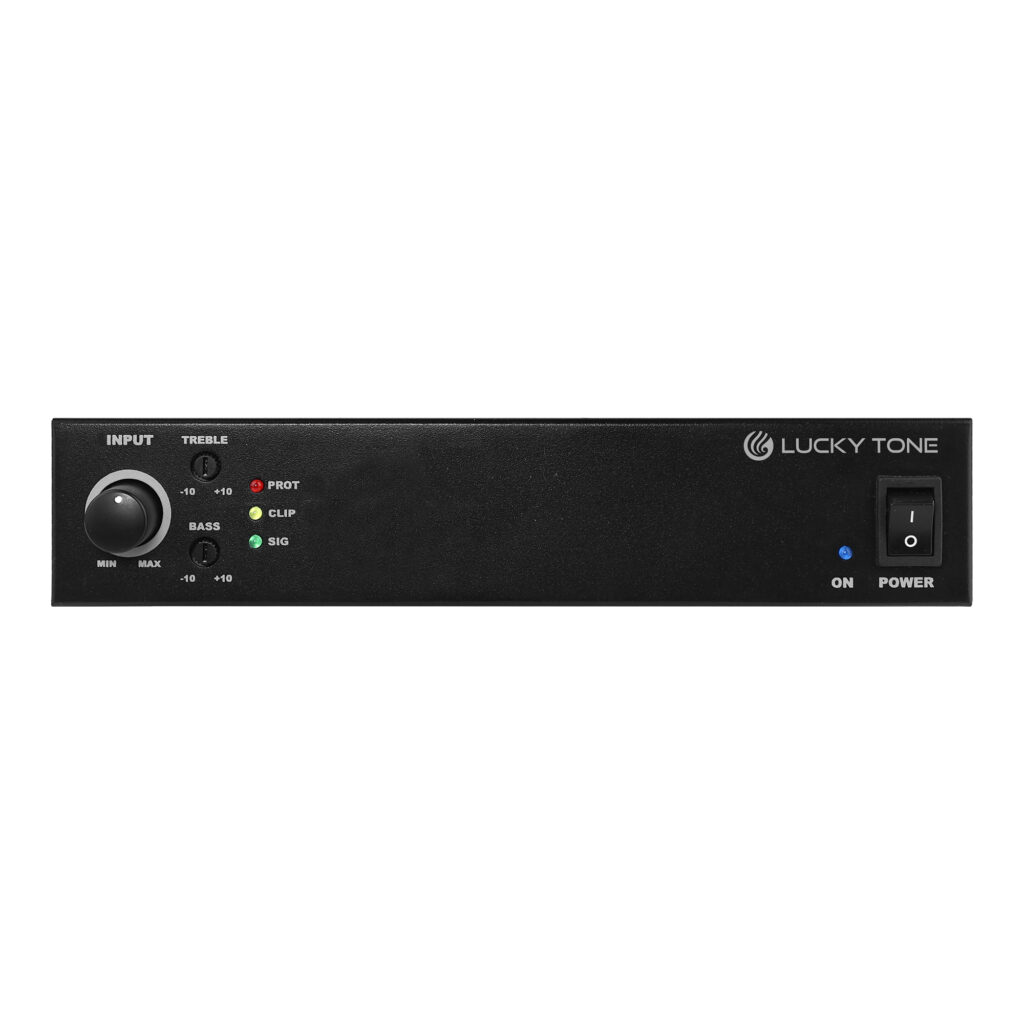

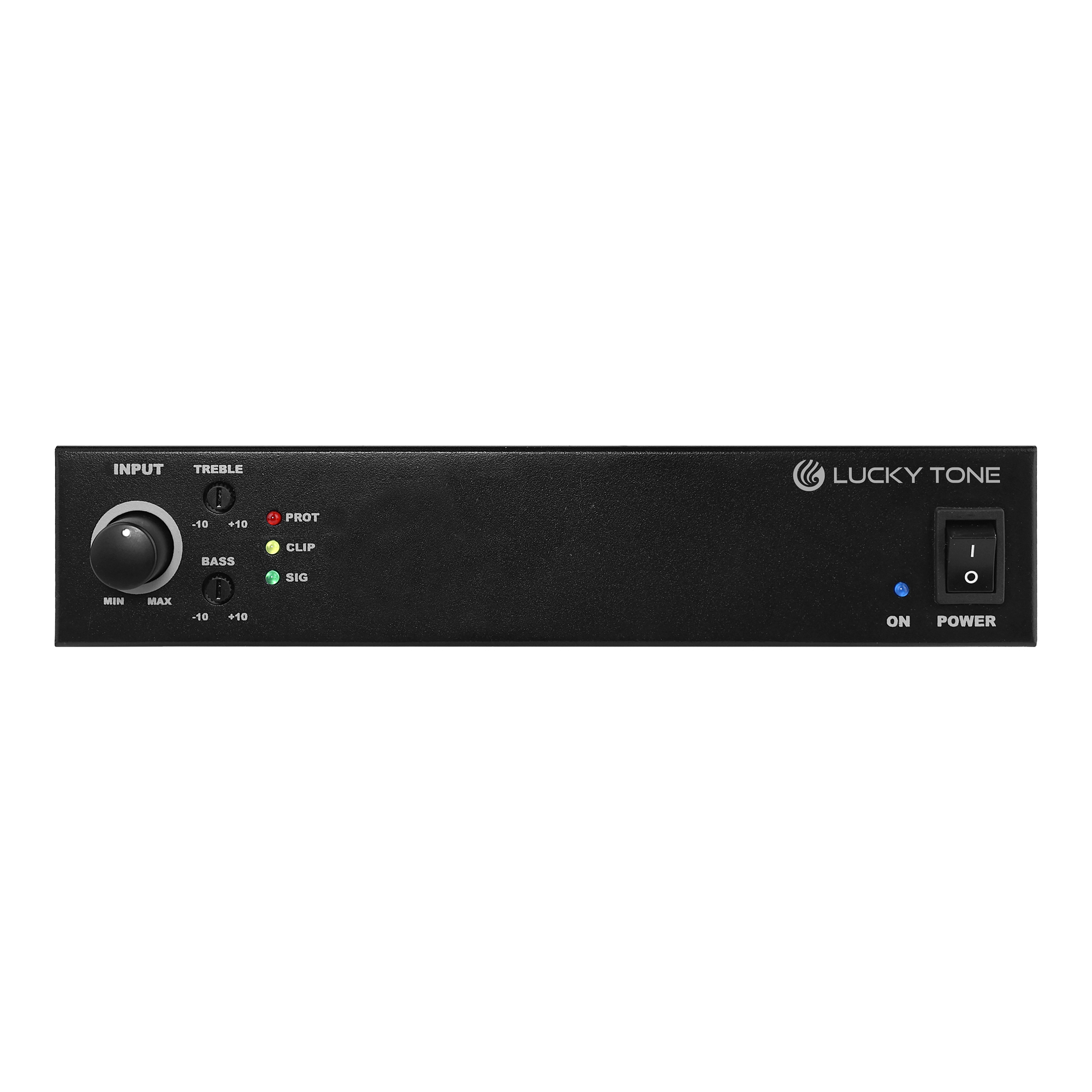

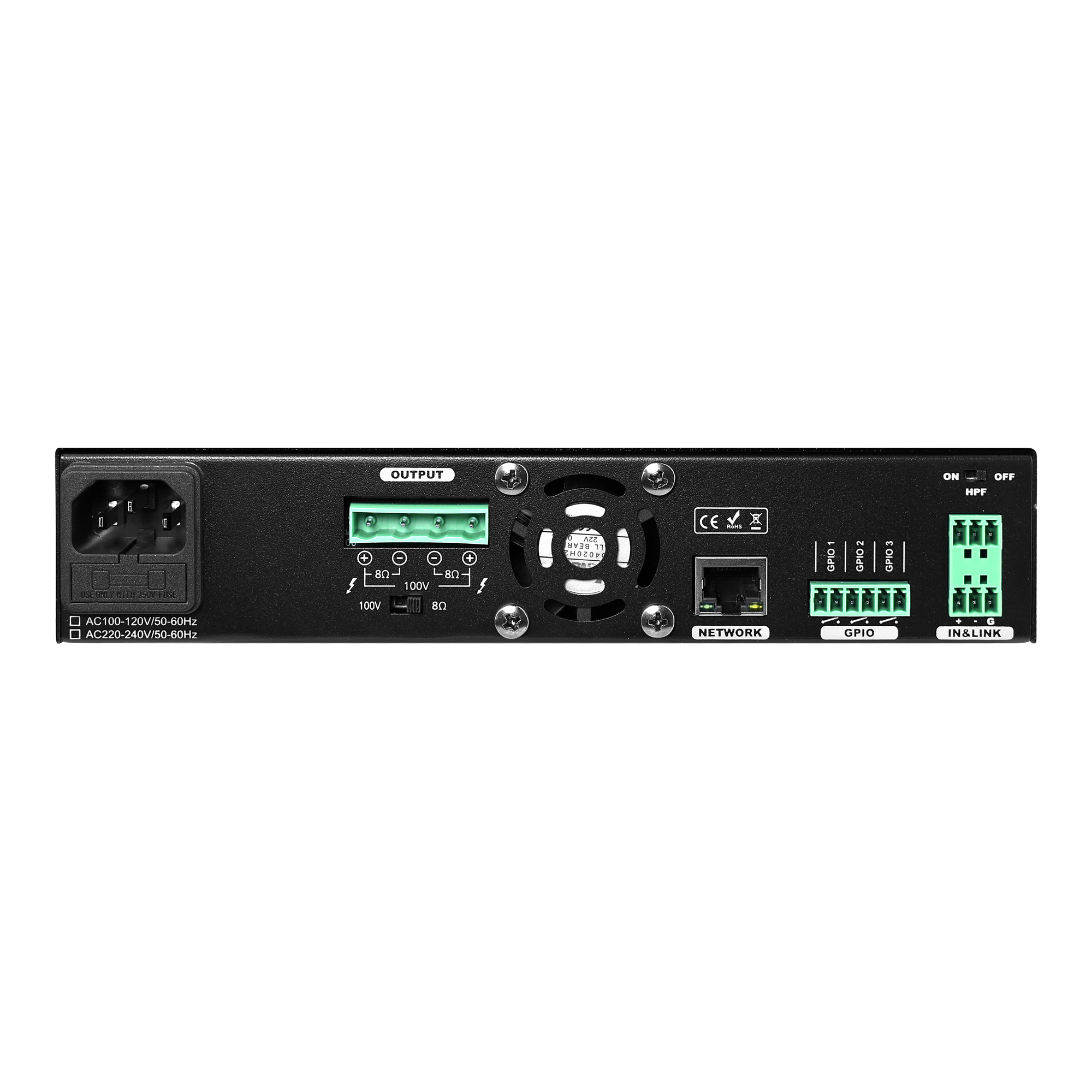

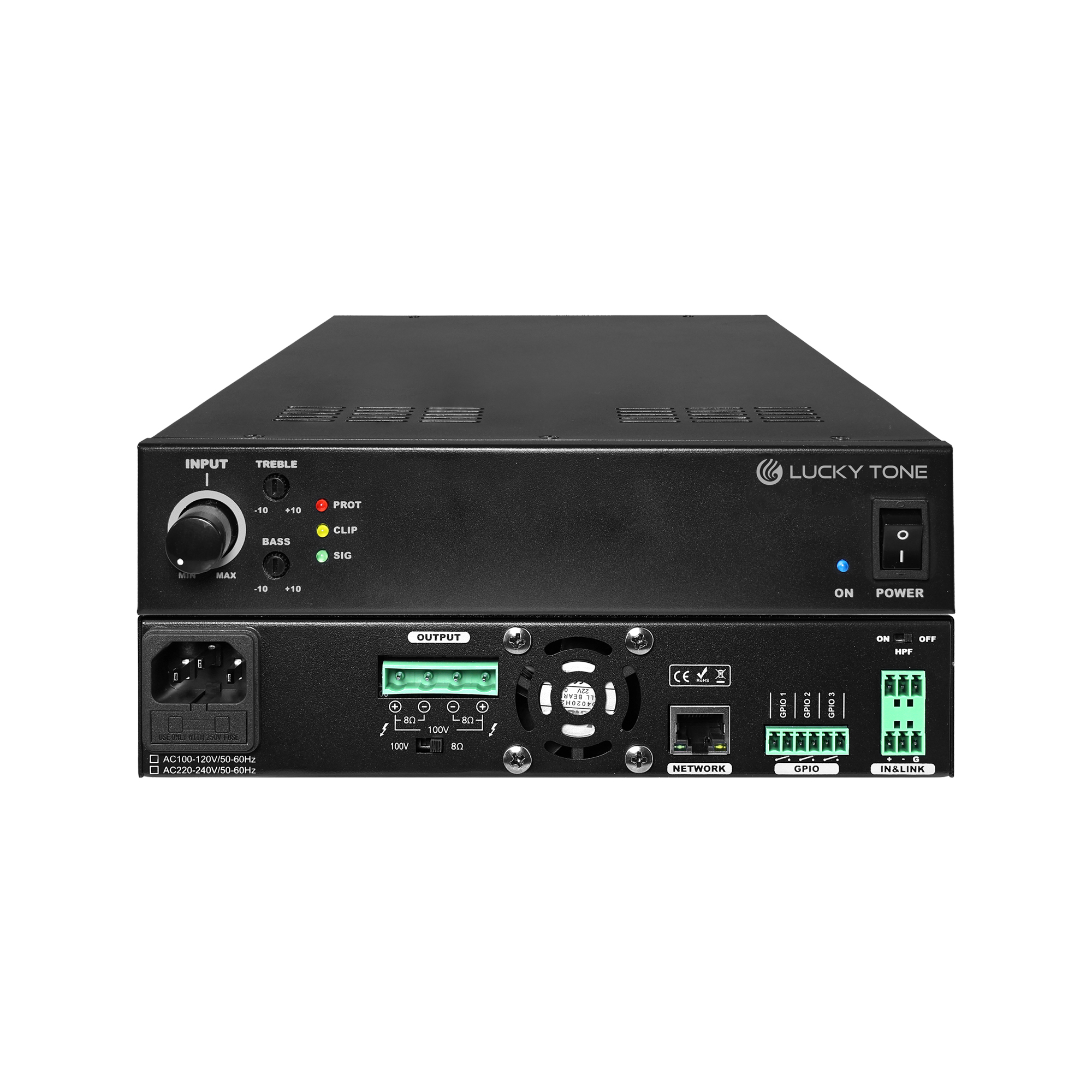

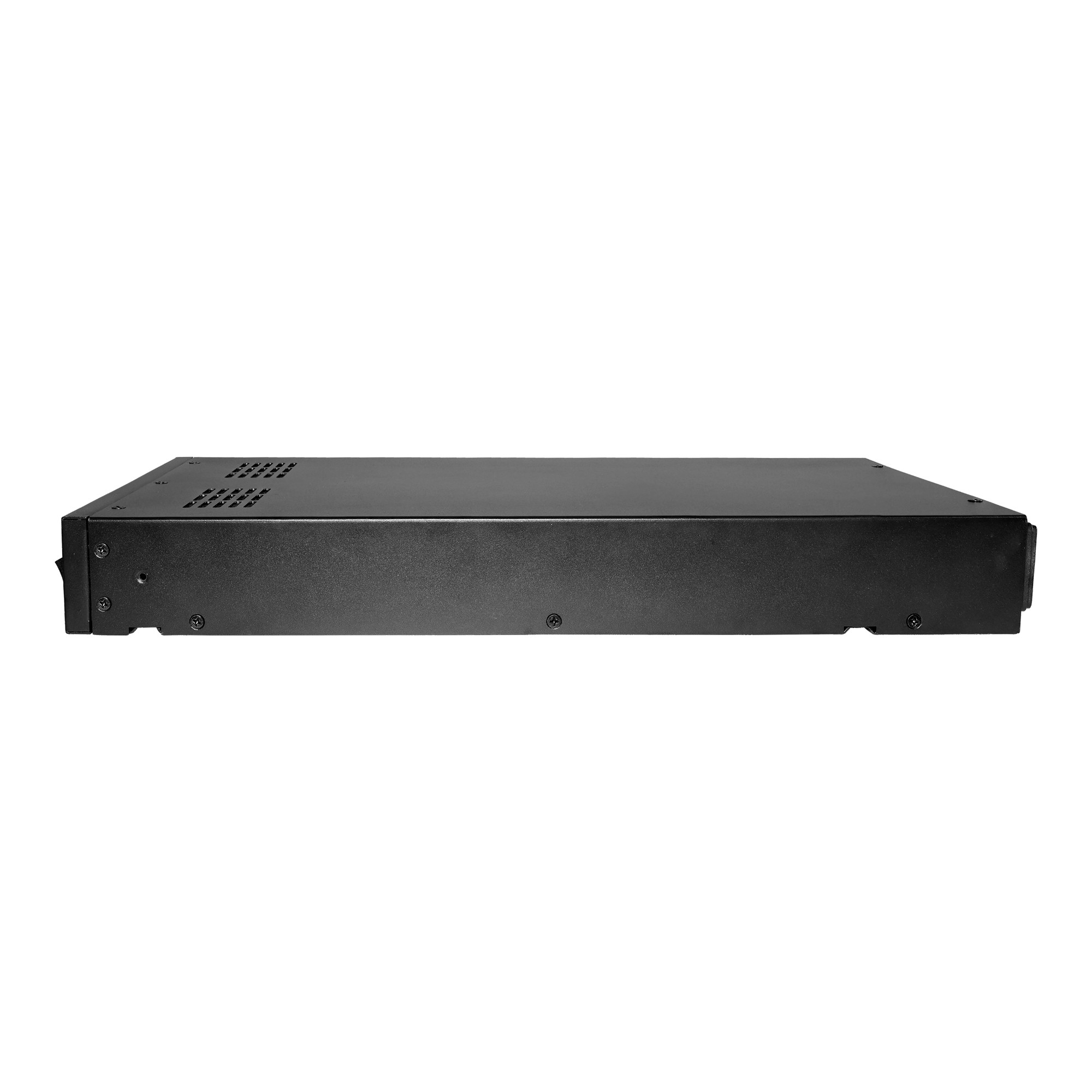

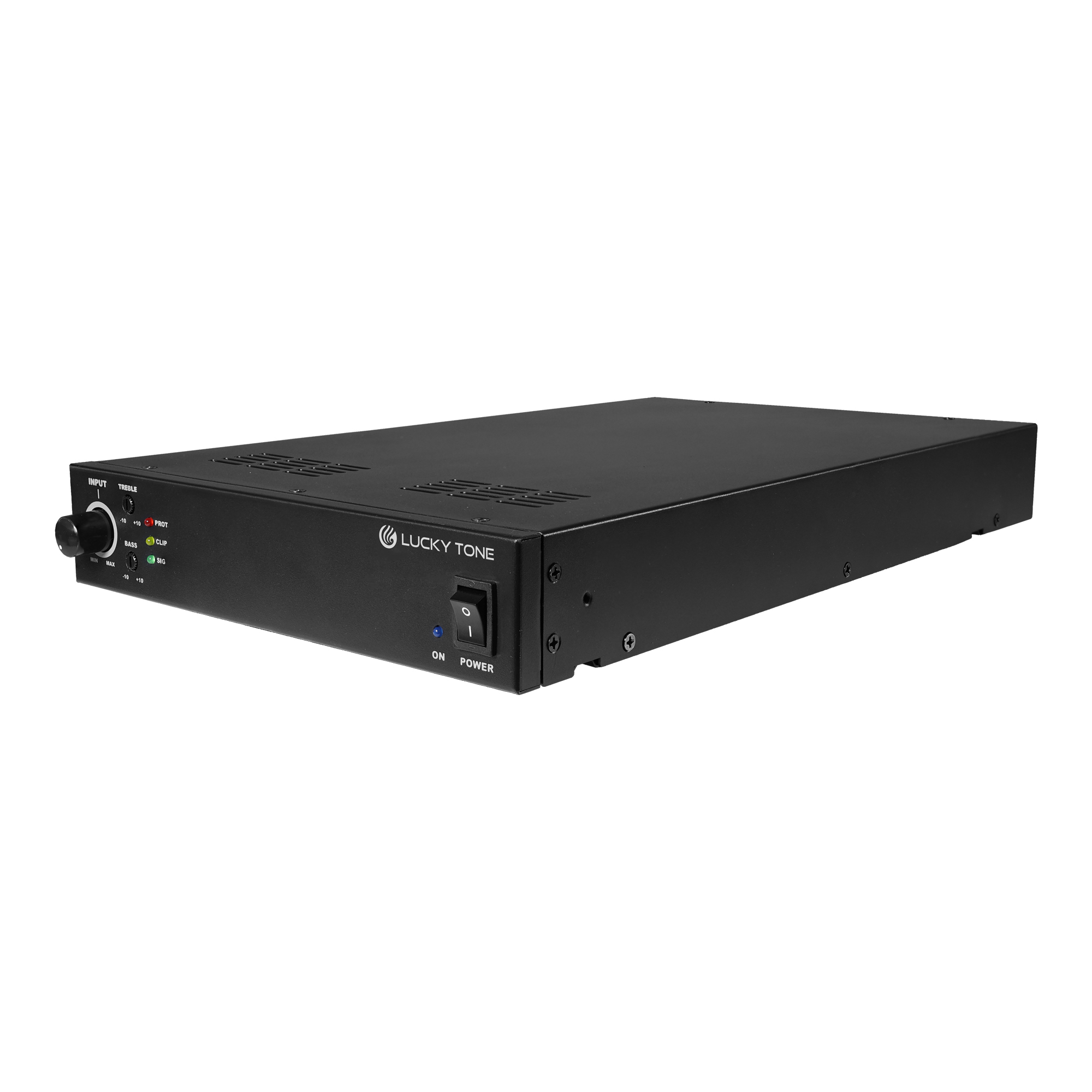

ONVIF Network Amplifier

Features

Support Both SIP & ONVIF – Reliable Connectivity for Paging, Monitoring & Emergency Use
Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade
Support MP3, WMA, WAV and more decoding
With a standard RJ45 network interface and supports online firmware upgrade from long distance
120Watts ~ 480Watts output
Advanced protection system includes current limiting, over current and thermal protections
Desktop type with rack mount bracket
Two bands tone controls
Low distortion and low noise level
Compact in Size and easy to install
Ideal commercial and industrial use

Model	HA-1120 ONVIF	HA-1250 ONVIF	HA-1500 ONVIF
Rated Power at 8ohm	2x60W	2x120W	2x240W
Bridged Power at 100V	120W	240W	480W
Power Consumption	195W	325W	588W
Network Communication Protocol	SIP, ONVIF
Decoding	MP3/WMA/WAV
Network Interface	10/100Base-TX，RJ45
Input sensitivity / Impedance	-0dBu/10kohm Unbalanced / Balanced
Power Supply Voltage	AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz
Speaker Output	100V / 8Ω
Frequency Response	80Hz~17KHz ( +1dB /-3dB )
S/N Ratio	>80dB (with A-Weight)
T.H.D	<1% (at rated power, 1kHz)
Working Humidity	90%
Tone Controls	Bass:100Hz(±10dB), Treble:10KHz(±10dB)
Working Temperature	0℃~+40℃
Product Dimension (WxHxD)	21544330 mm (Half-Rack)
Net Weight	3.3kg
