Pre-amplifier with Multi Versatile Input

Features:
● The AL-11P is a versatile mixer pre-amplifier with 4 microphone inputs, 3 auxiliary inputs, 2 emergency inputs (high priority) and mute function.
● MIC1, EMC1, EMC2 are priority inputs, automatically muting all other signal inputs. MIC1 has the highest priority, able to suppress all other inputs.
● With bass and treble control, automatic mute function for paging and individual gain control for all the inputs.

MODEL	AL-11P

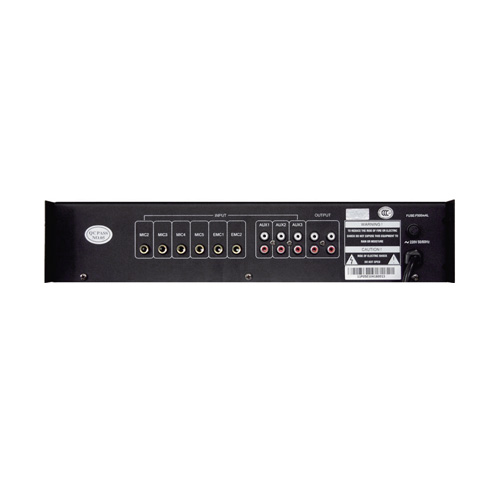

Input	MIC 1, 2, 3, 4: 600 ohms, 5mV, unbalanced, phone jack
	AUX 1, 2, 3: 10k ohms, 200mV, unbalanced, RCA jack
	EMC 1, 2: 10k ohms, 200mV, unbalanced, phone jack
Output	600 ohms, 775mV, 0 dB, RCA jack
Frequency Response	60Hz – 15kHz (+/- 3dB)
S/N Ratio	Better than 70dB
THD	Less than 0.1% at 1KHz
Tone Controls	BASS: 100 Hz (+/- 10dB), TREBLE: 12k Hz (+/- 10dB)
Muting Function	MIC1 overrides other input signals with 0~30 dB attenuation
Muting Function	EMC1 overrides other input signals except MIC 1
Power Requirement	220~240V AC, 50/60Hz
Dimensions	89(H) x 483(W) x 366(D) mm

Pre-amplifier with Multi Versatile Input
