Features:

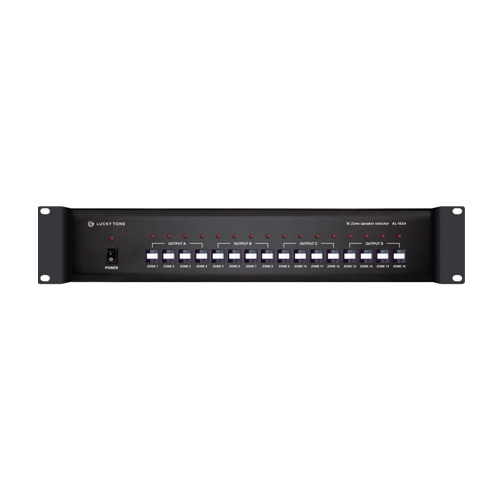

● This speaker selector controls up to 16 speaker outputs and 4 audio inputs.
● Flexible multi-input speaker selector arranged in a 4 x 4 matrix with priority override. 16 speaker zones are divided into 4 groups, each group can have a separate audio source.
A priority bus is provided to mute background music for zone paging and emergency alarms.
| MODEL | AL-16S4 |
| Input | 4 program and 1 priority channels, 70/100V audio signal |
| Speaker Output | 4 groups of 4 zones, 70/100V audio signal |
| Priority Bus | 16 channels, activated by 0V signal |
| Power Handling | 1.5KW total capacity, 375W per channel |
| Alarm Output | 0V signal |
| Controls | 16 pushbutton zone selectors, 1 power switch |
| Power Requirement | 110~120V or 220~240V AC, 50/60Hz; 24VDC |
| Dimensions | 89(H) x 483(W) x 366(D) mm |
