- Public Address and Commercial Audio Systems
Three line and two microphone inputs with Euro block and RCA jack.
Acceptable wide range input level.
30Watts(MPro-30) / 60Watts(MPro-60) / 120Watts(MPro-120) output.
Advanced protection system includeds current limiting, over current and thermal protections.
Desktop type
Two bands tone controls
Low distortion and low noise level
Compact size and light weight
Ideal commercial and industrial use
Functions
Controls

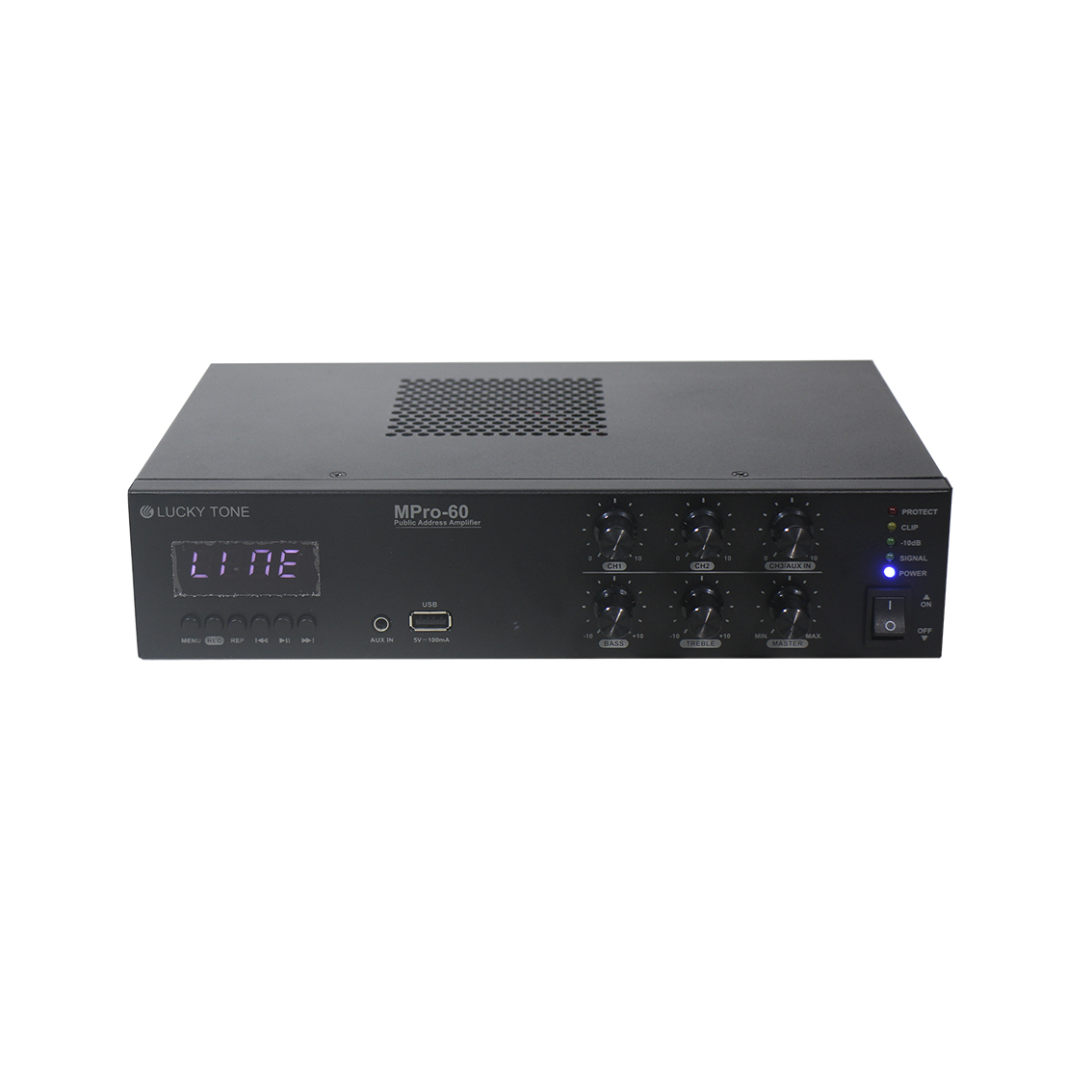

Front : 3 Channel Volume Control & Tone Control, Master Volume
Control.

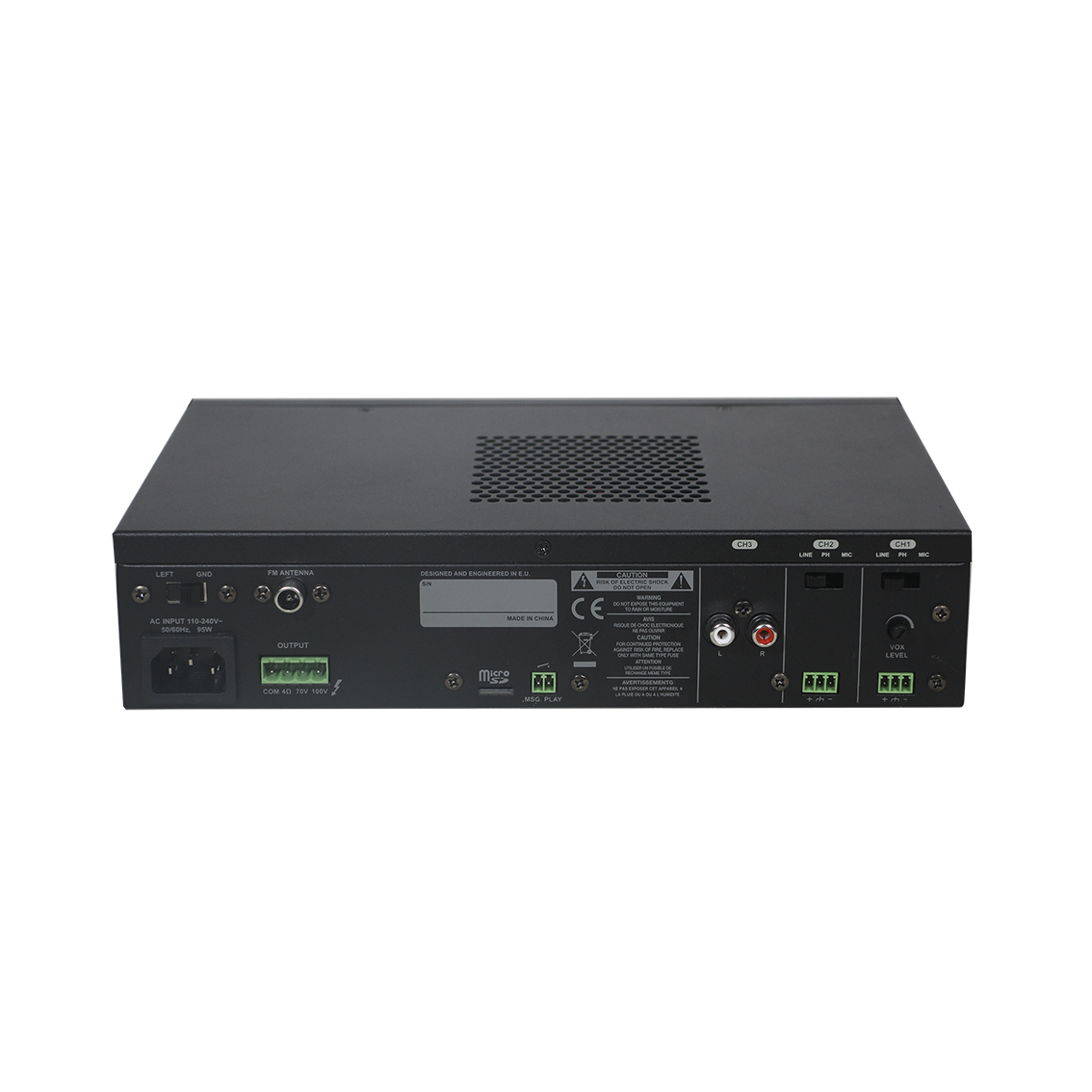

Rear : Line/MIC selector, Talkover level volume, Phantom Switch ,Ground lift Switch, Message play and stop.
Connectors
Euro Block for Channel 1-2 Input and USB.
RCA and AUX phone for Channel 3 Input.
Euro Block for Speaker Output and FM antenna input.
Message play : playback the recorded message with micro sd card on the rear panel.
Media Player : MP3 play, Record to USB memory, Bluetooth, FM.
Indicators : Power, Signal, -10dB, Clip and Protect.
Protection : Current Limiting, Thermal & DC Offset Protection.
Cooling : Convection Cooling.
| Model | Mpro-30 | Mpro-60 | Mpro-120 |
| Rated Output Power | 30W | 60W | 120W |
| Input sensitivity / Impedance | MIC: -50dB/600ohm Line: 6dB/10kohm | ||
| Power Supply Voltage | 100-240V 50/60Hz | ||
| Power Consumption | 65W | 95W | 165W |
| Speaker Output | 100V( 333Ω),70V( 163Ω), 4Ω(11V) ; 100V( 166Ω),70V( 82Ω),4Ω(15V) | ||
| Frequency Response | 80Hz-17KHz ( +1dB /-3dB ) | ||
| S/N Ratio | >80dB (with A-Weight) | ||
| T.H.D | ＜1 at rated power, 1kHz | ||
| Microphone input | -50dB/600Ω, unbalanced input | ||
| Auxiliary input | 0dBu/10KΩ, unbalanced input | ||
| Tone Controls | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | ||
| Mute Function | MIC over other inputs | ||
| Working Temperature | -10°C~+ 40° C | ||
| Product Dimension (WxHxD) | 280x60x200 mm | ||
| Net Weight | 2.1kg | 2.5kg | 3.3kg |
