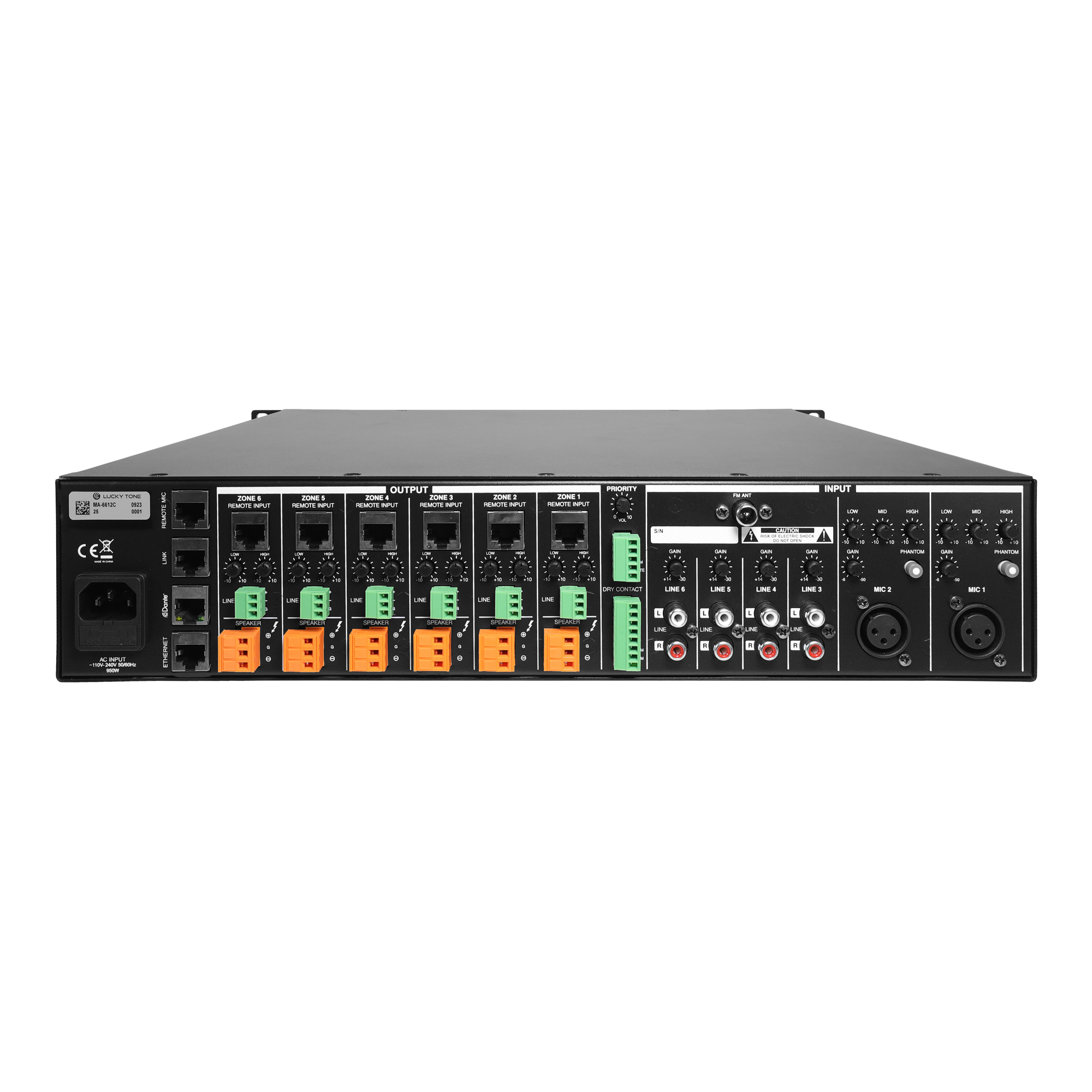

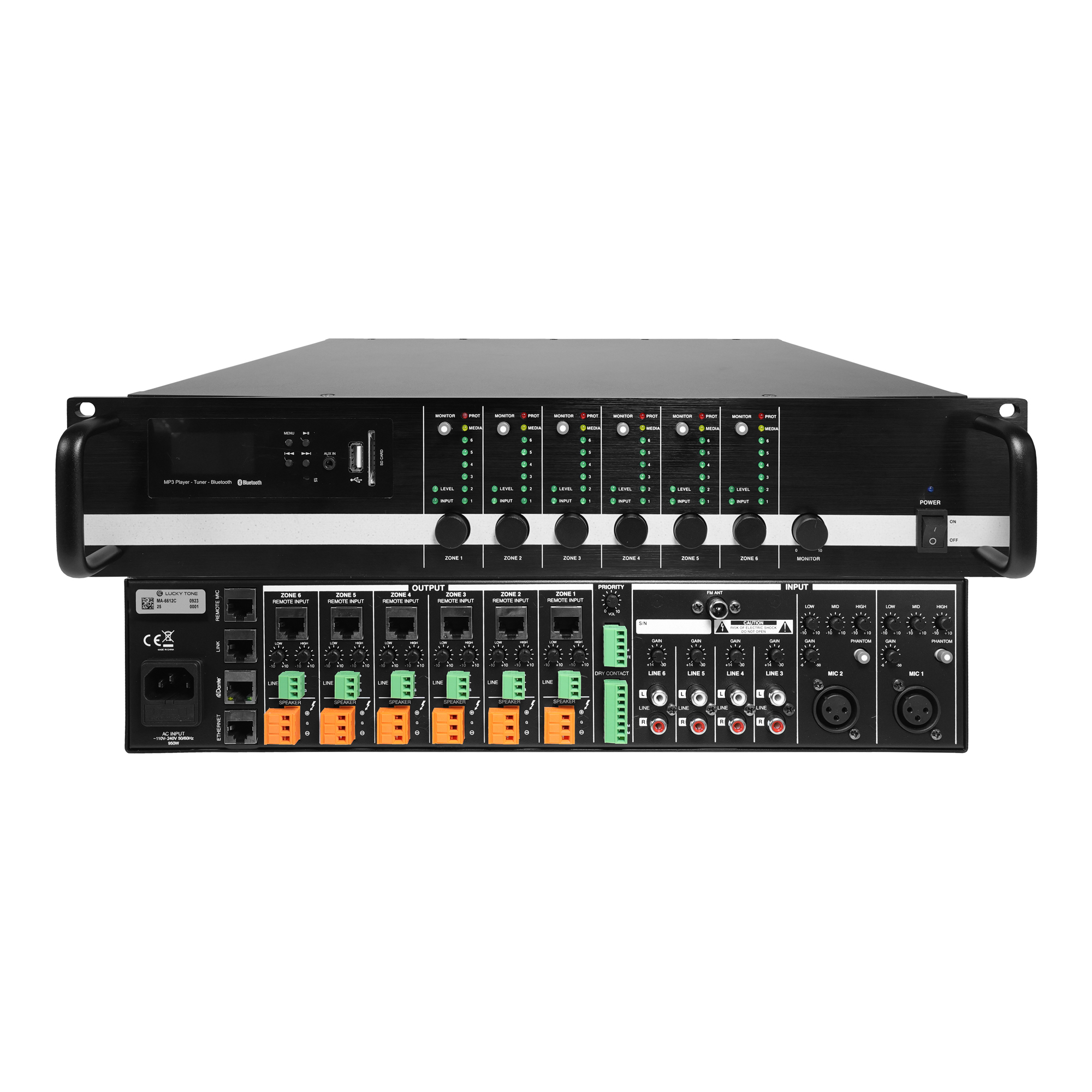

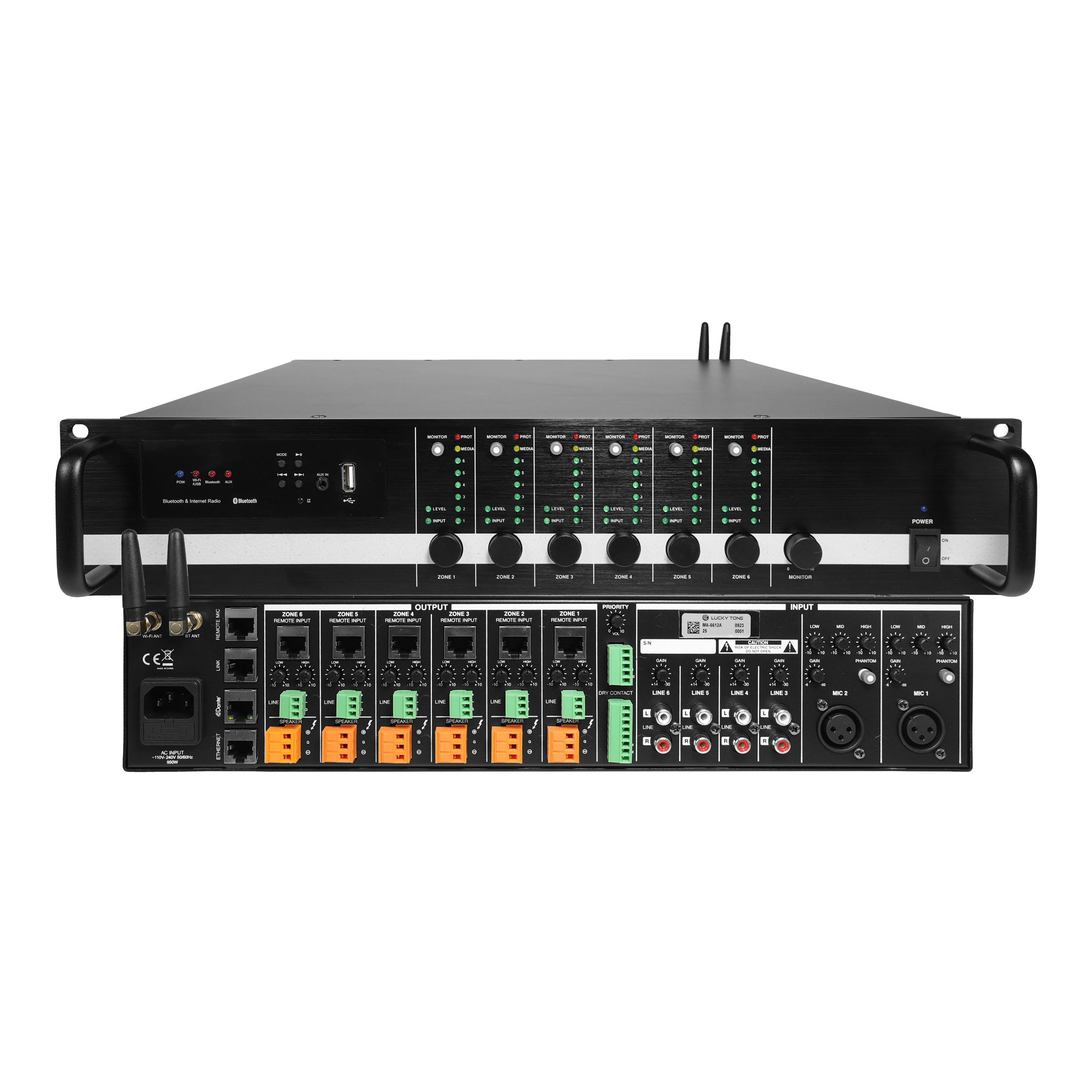

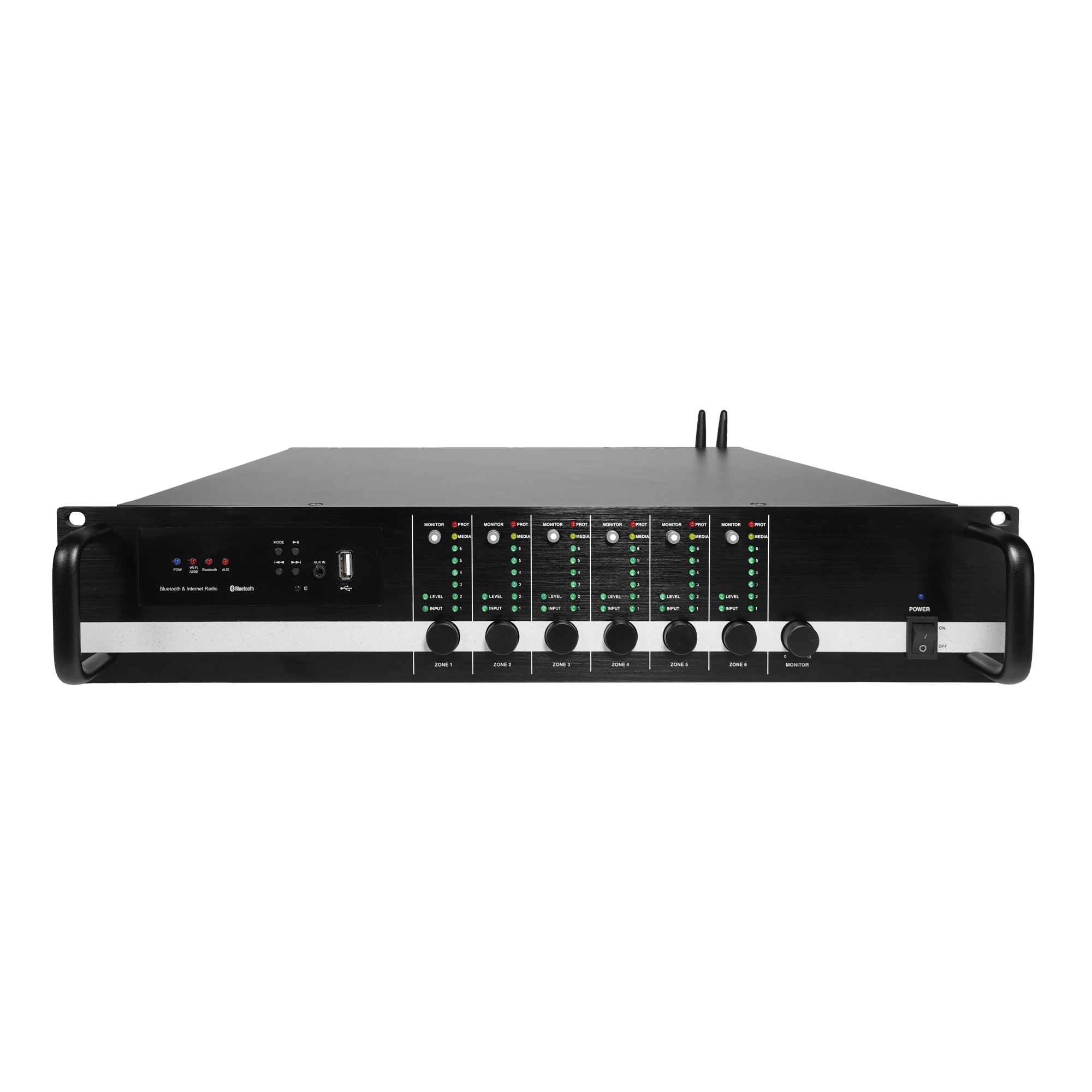

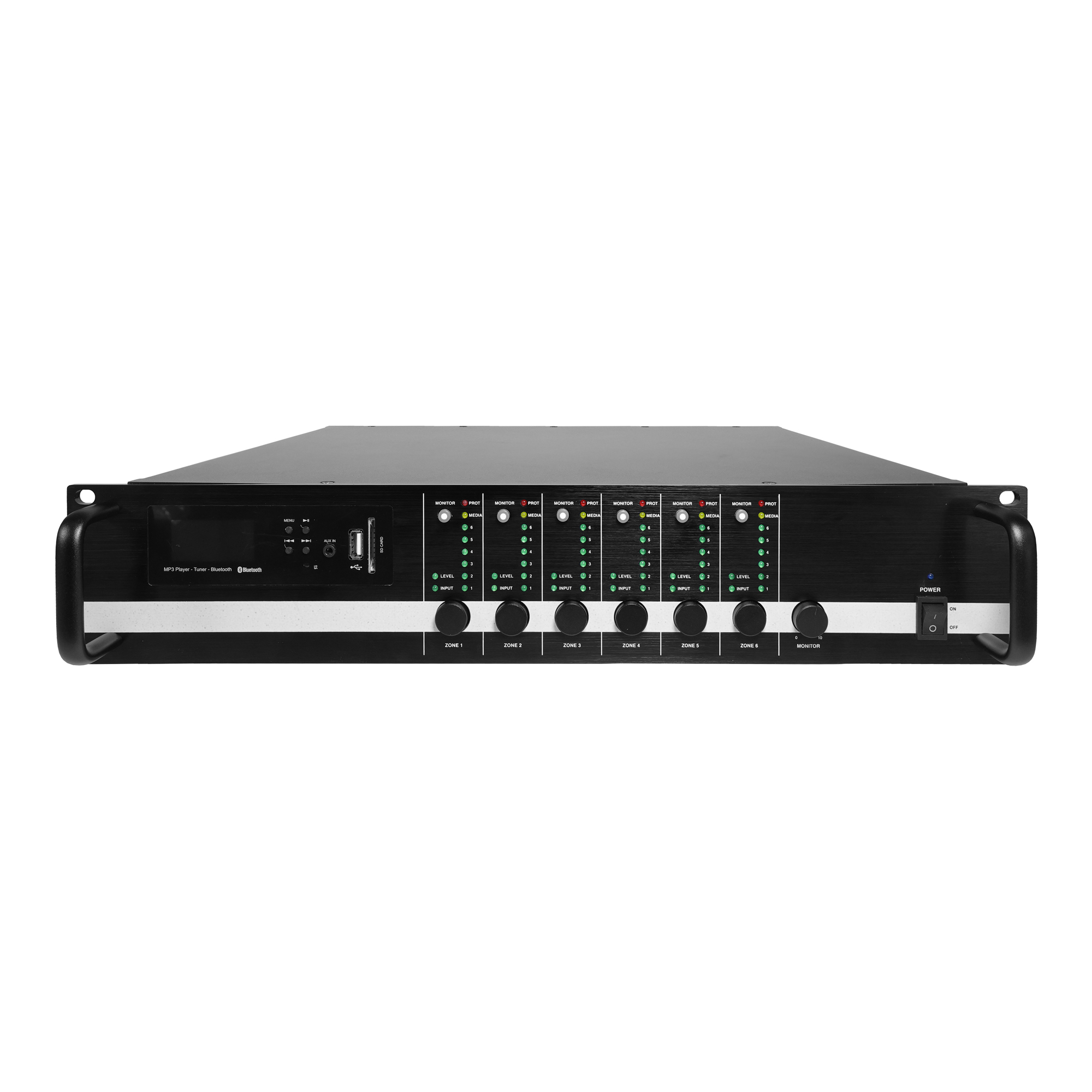

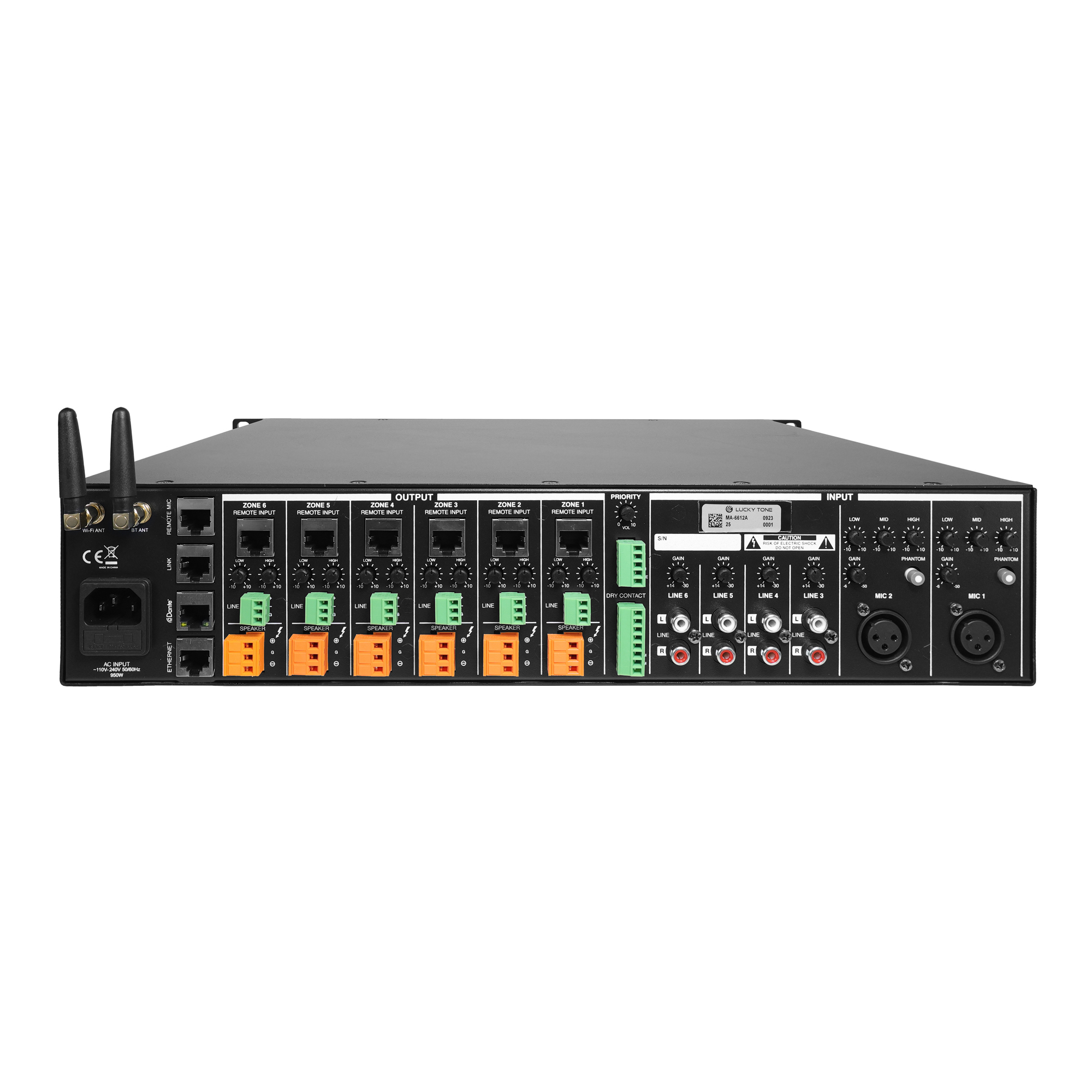

Matrix Amplifier with Dynamic Power Sharing

Features

Performance
– Dynamic Power Sharing across all channels
– Flexible power allocation within defined per-channel and total limits
– Built-in matrix for versatile routing and zoning
– Built-in media player (MP3, Bluetooth, Internet Radio, Wi-Fi Audio streaming e.g. Spotify, FM radio)
– Built-in monitor speaker for easy local monitoring
Integration
– 6-channel and 4-channel versions available
– Supports background music, paging, and emergency broadcast applications

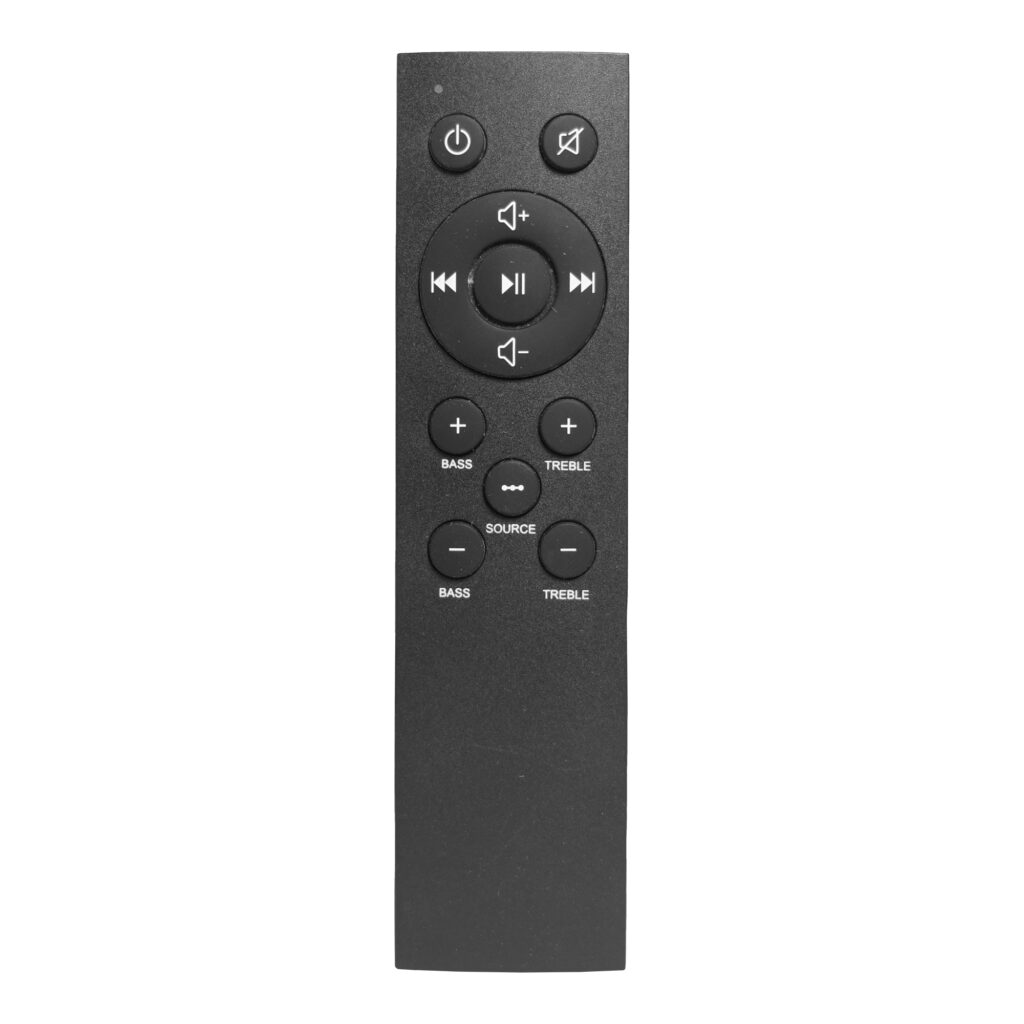

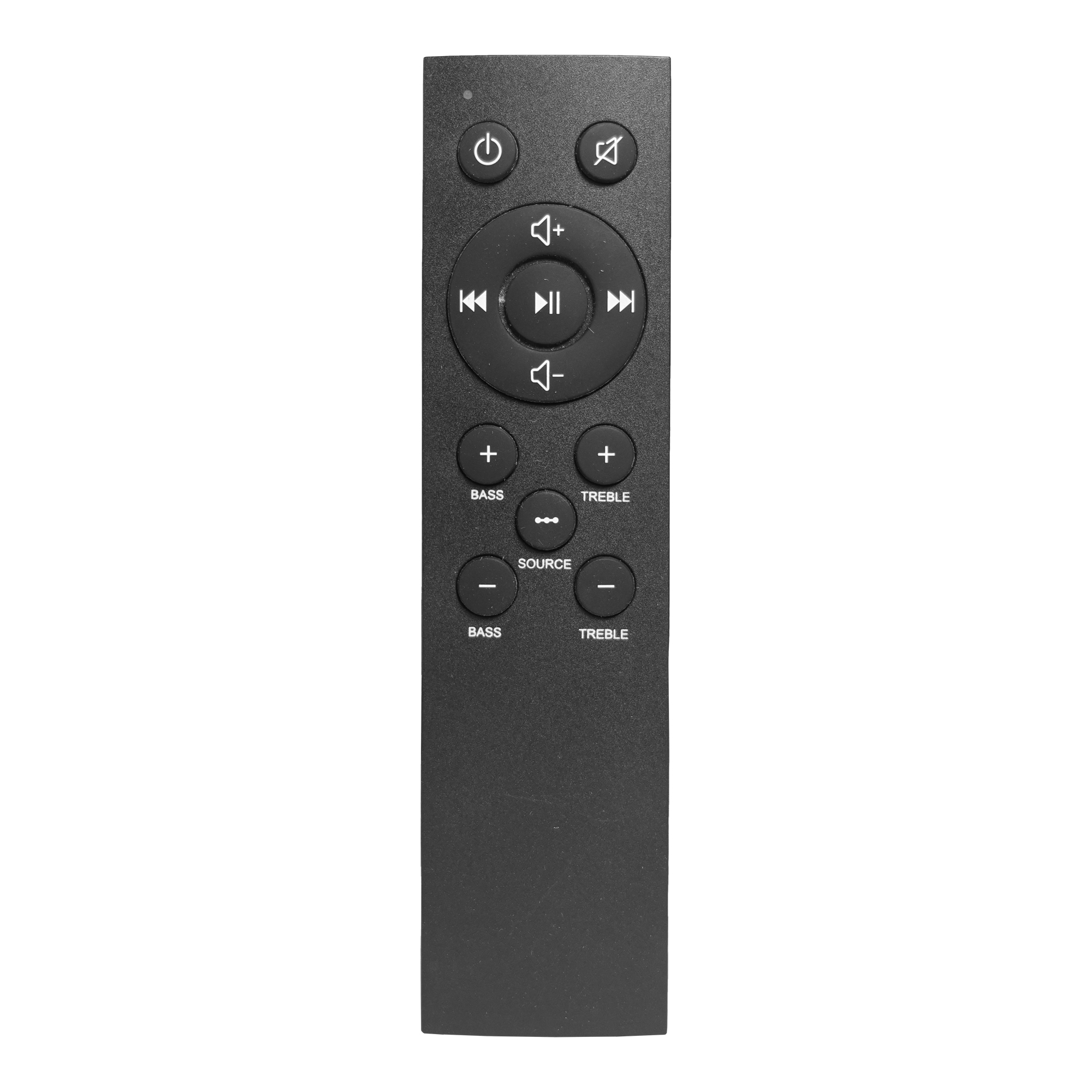

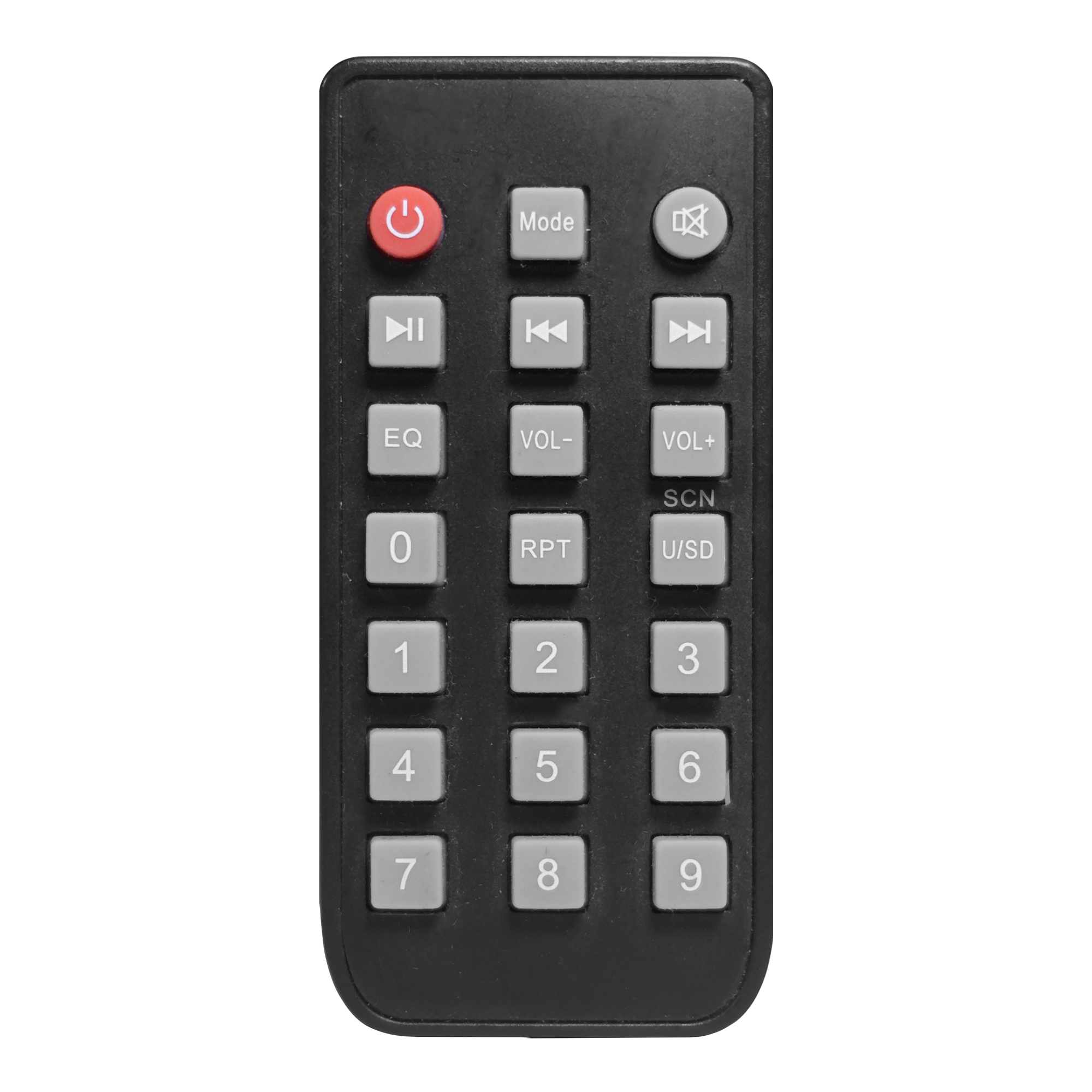

– Remote control ready (wall panels, paging stations)
Reliability
– Full protection: overload, short-circuit, overheating
– Low distortion and high S/N ratio

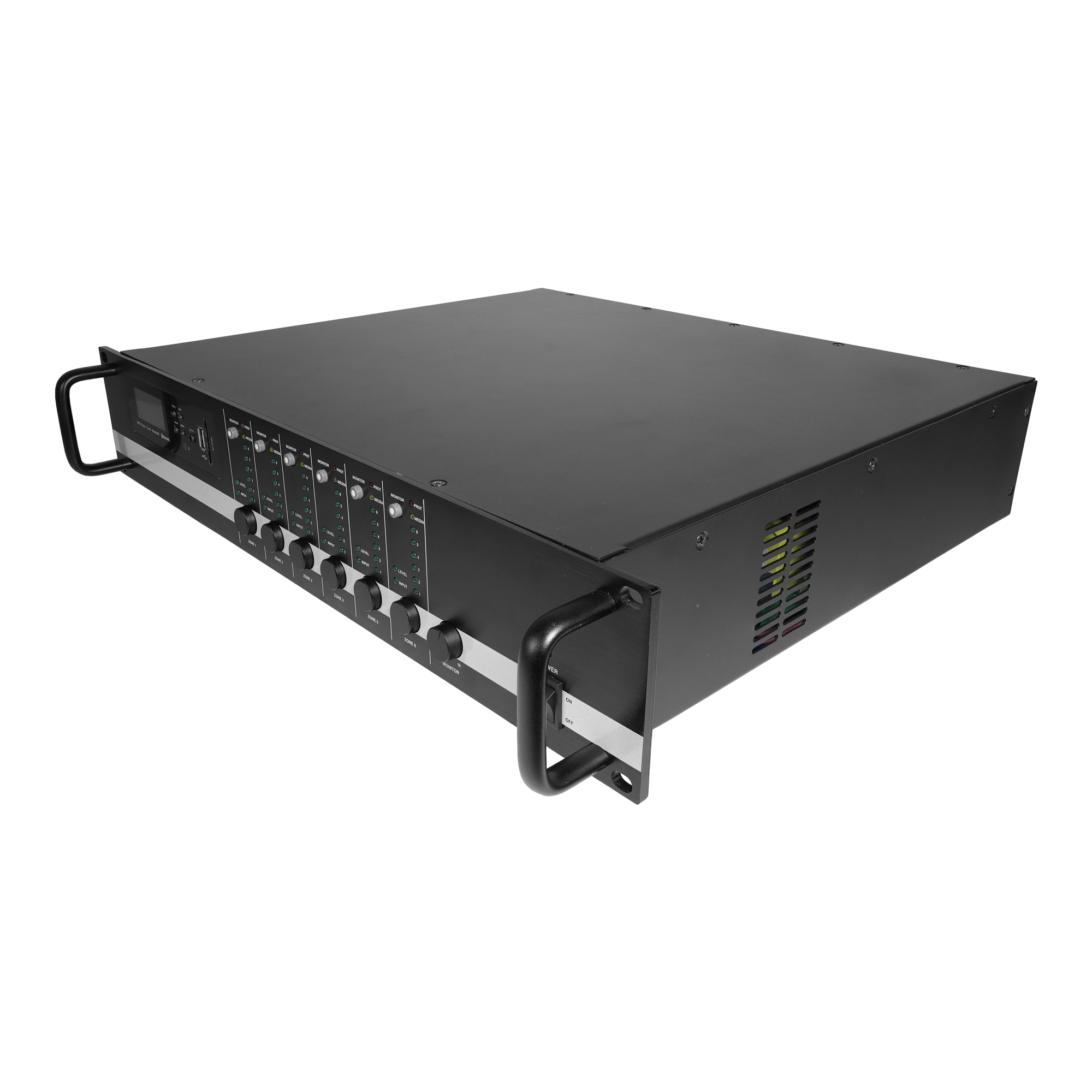

– 2U rackmount design for space efficiency

Model	MA-6612A/C	MA-6424A/C
Channel	6	4
Rated Power per Channel	500W or less	500W or less
Total Power	720W or less	960W or less
Output /Impedance	100V or 4ohm
Input sensitivity /Impedance	Mic Input-50dB to-6dB/600 Balanced Line Input -6dB to+14dB/20K Balanced Remote Input OdB/20K Balanced
Output level/Impedance	0dB/600 Ω Balanced
Frequency Response(-3dB)	70Hz-18kHz
T.H.D	<1.0%
Crosstalk	70 dB
Equalization	Input:High:12kHz±10 dB/Mid:2.5 kHz±10 dB/Low:80 Hz±10 dB Output:High:10 kHz±10 dB/Low:100 Hz±10 dB
S/N Ratio	>80 dB
Power Source	AC 115/230V,50 to 60Hz
Net Weight	10.5kg	10kg
Dimensions(W×H×D)	483×88×440mm
