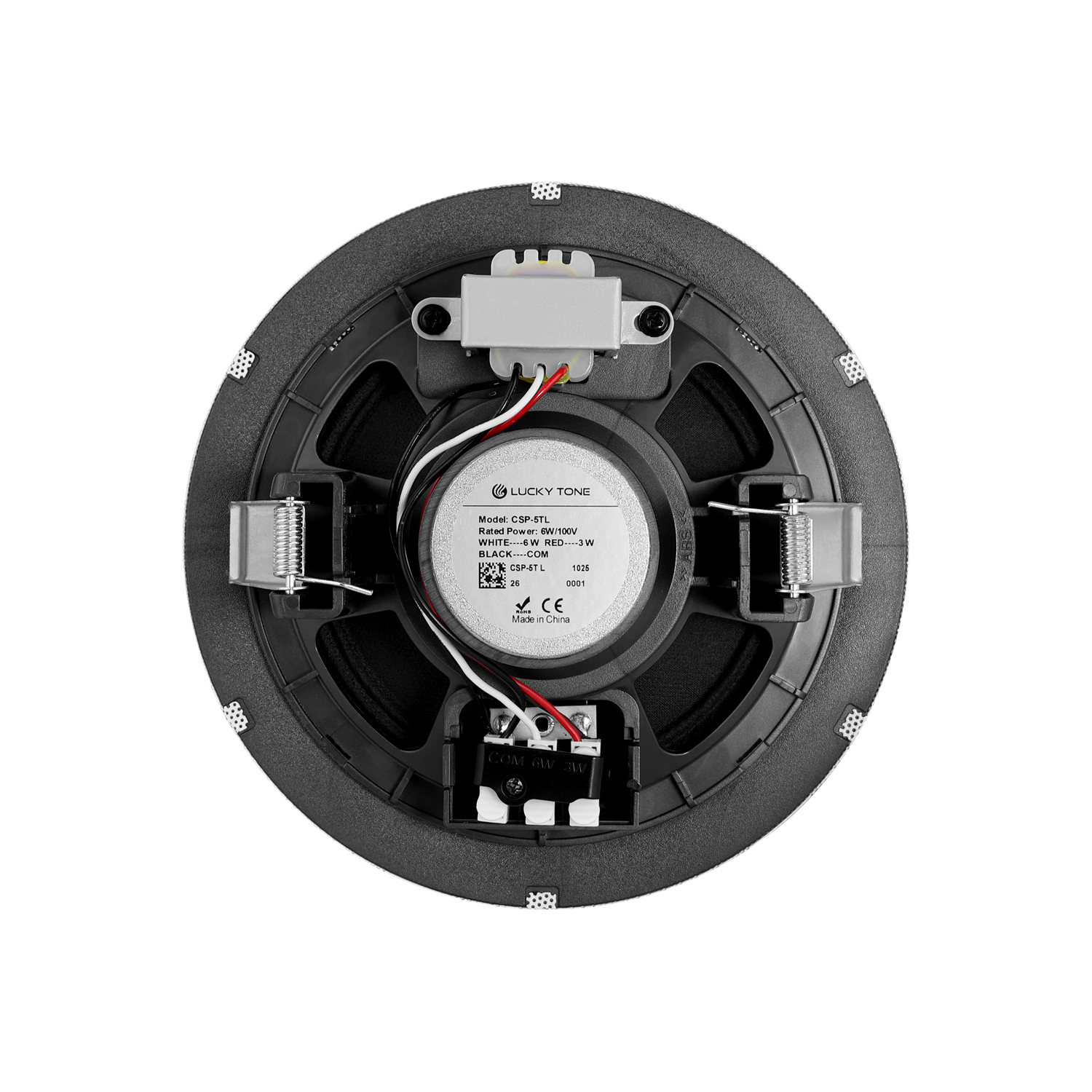

CSP-5TL-4
CSP-5TL-7
CSP-5-1
CSP-5L-1
CSP-5-3
CSP-5-4
CSP-5-7
CSP-5L-2
CSP-5L-4
CSP-5TL-4
CSP-5TL-7

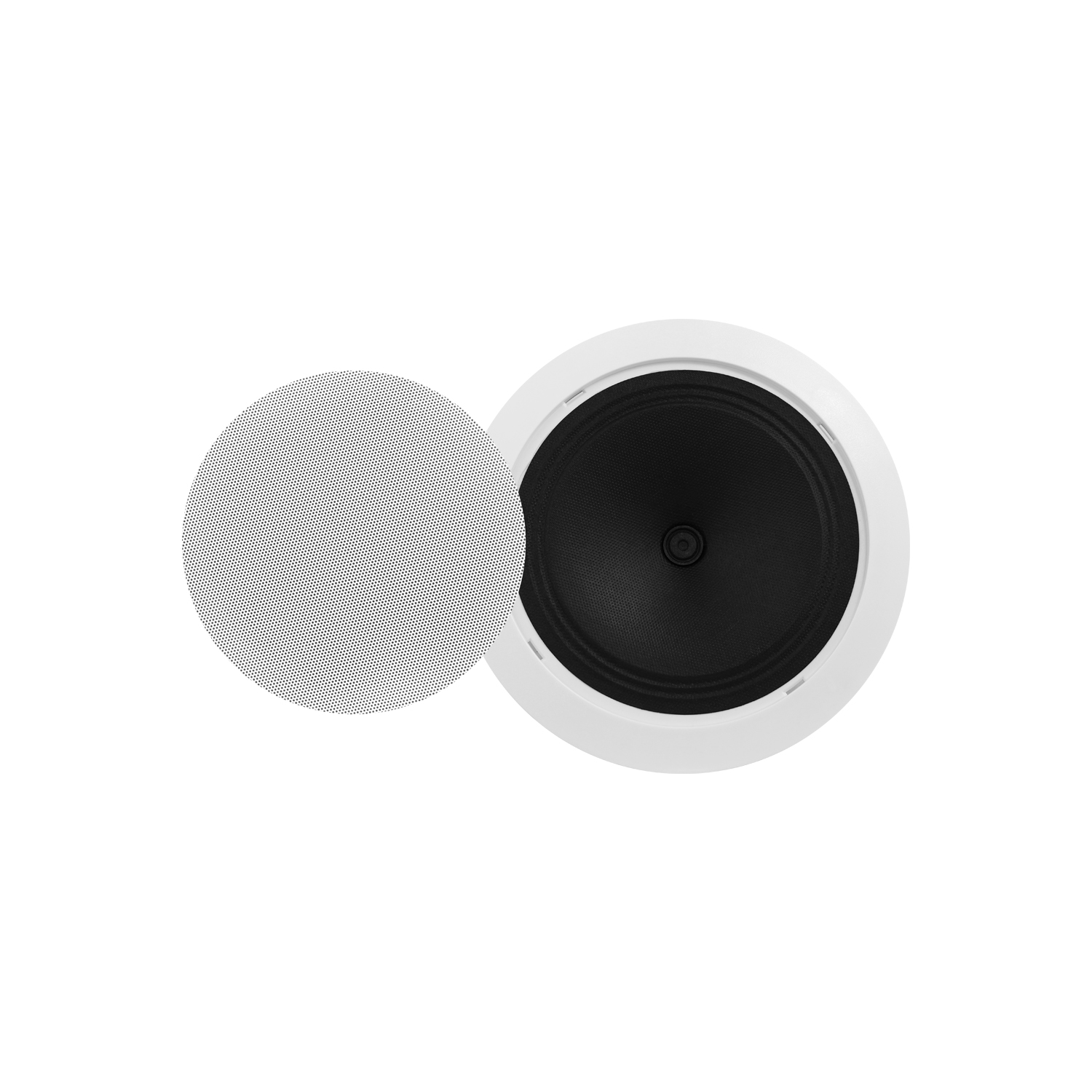

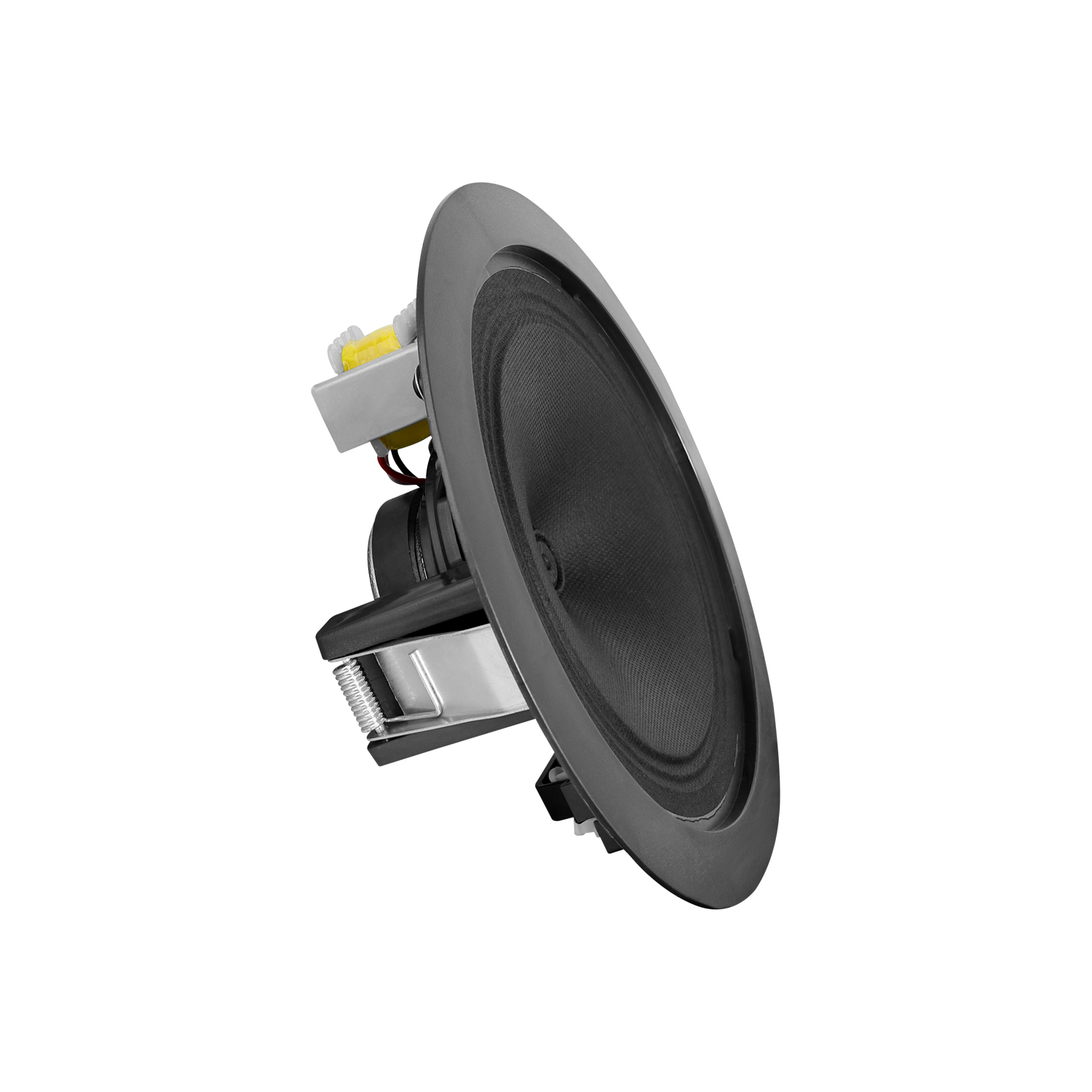

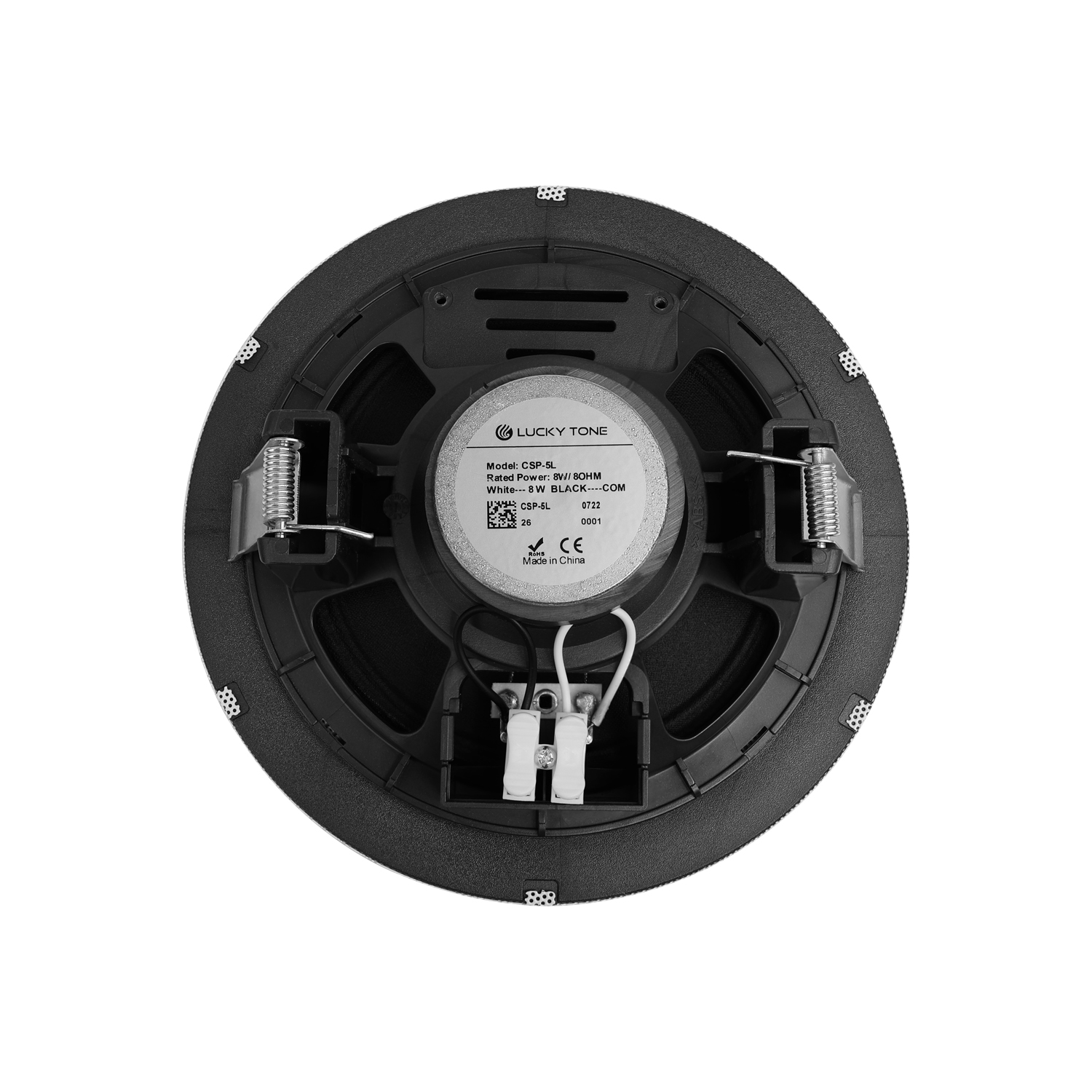

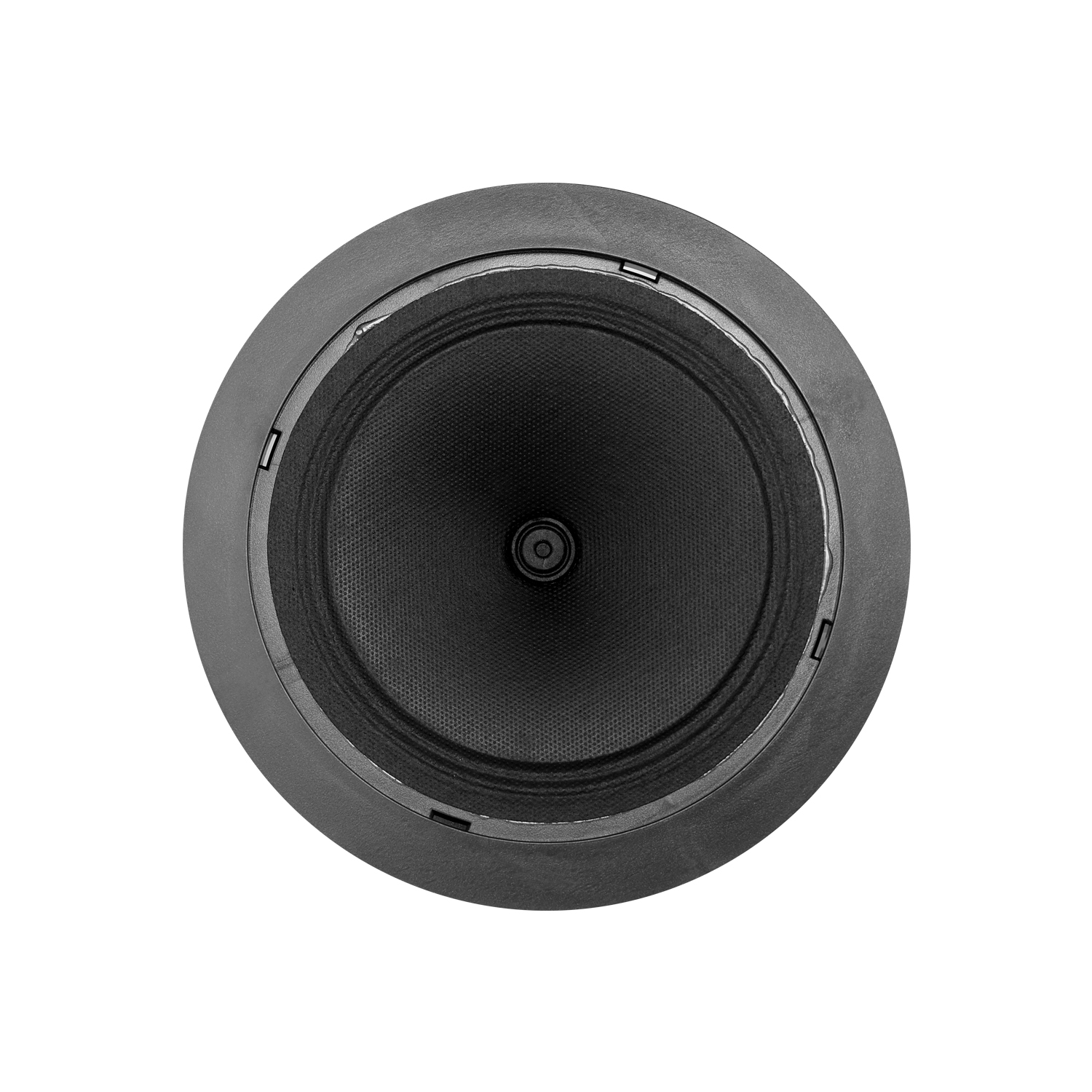

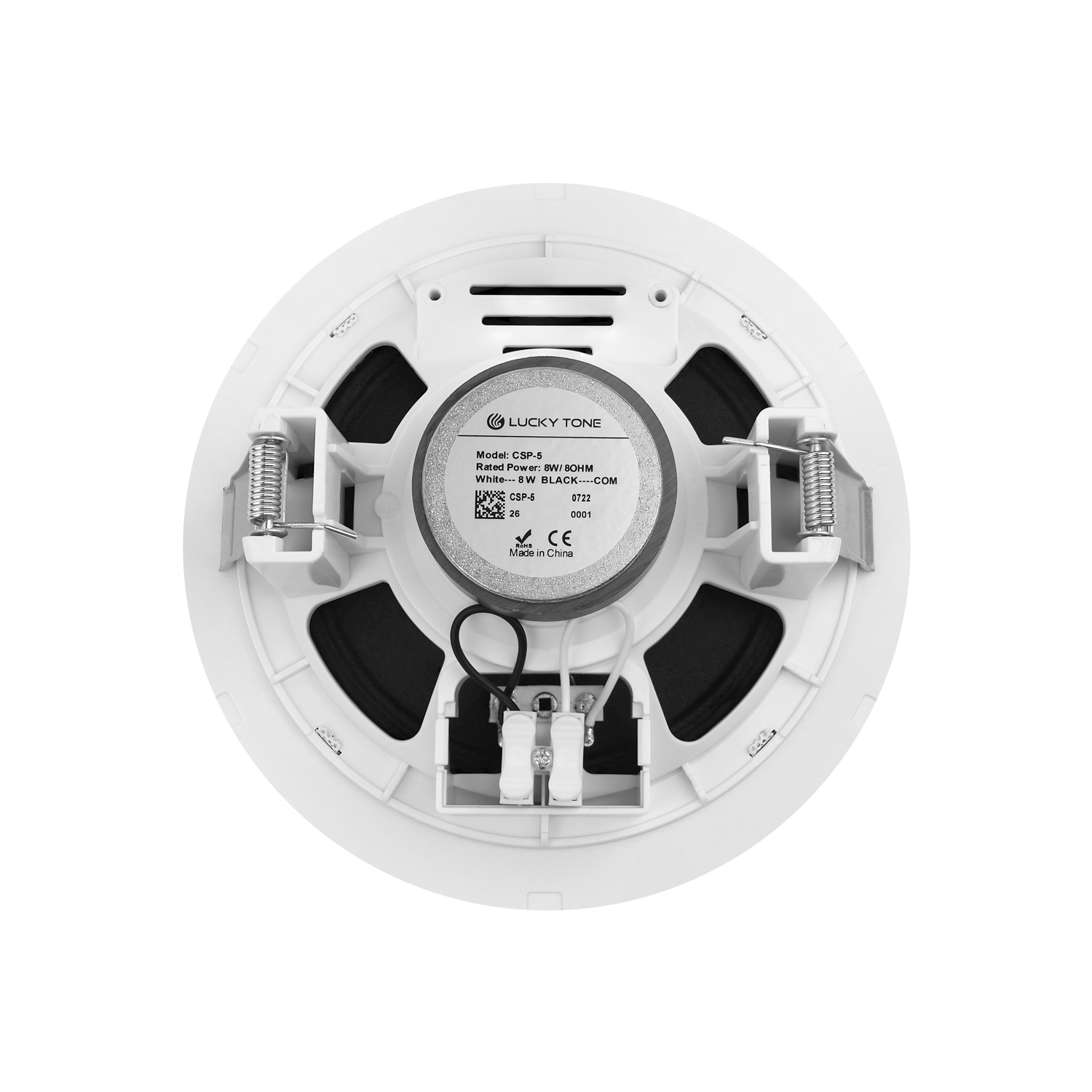

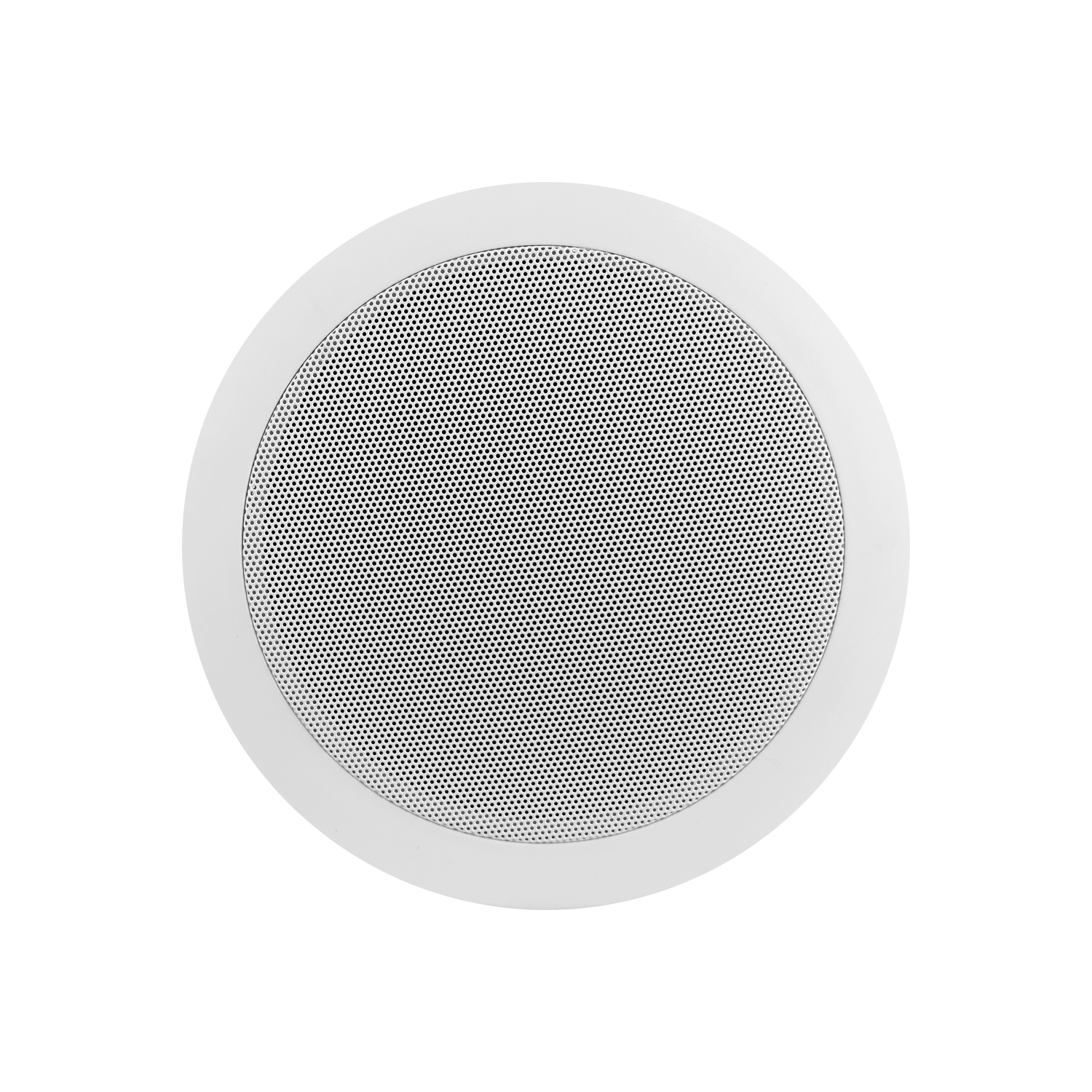

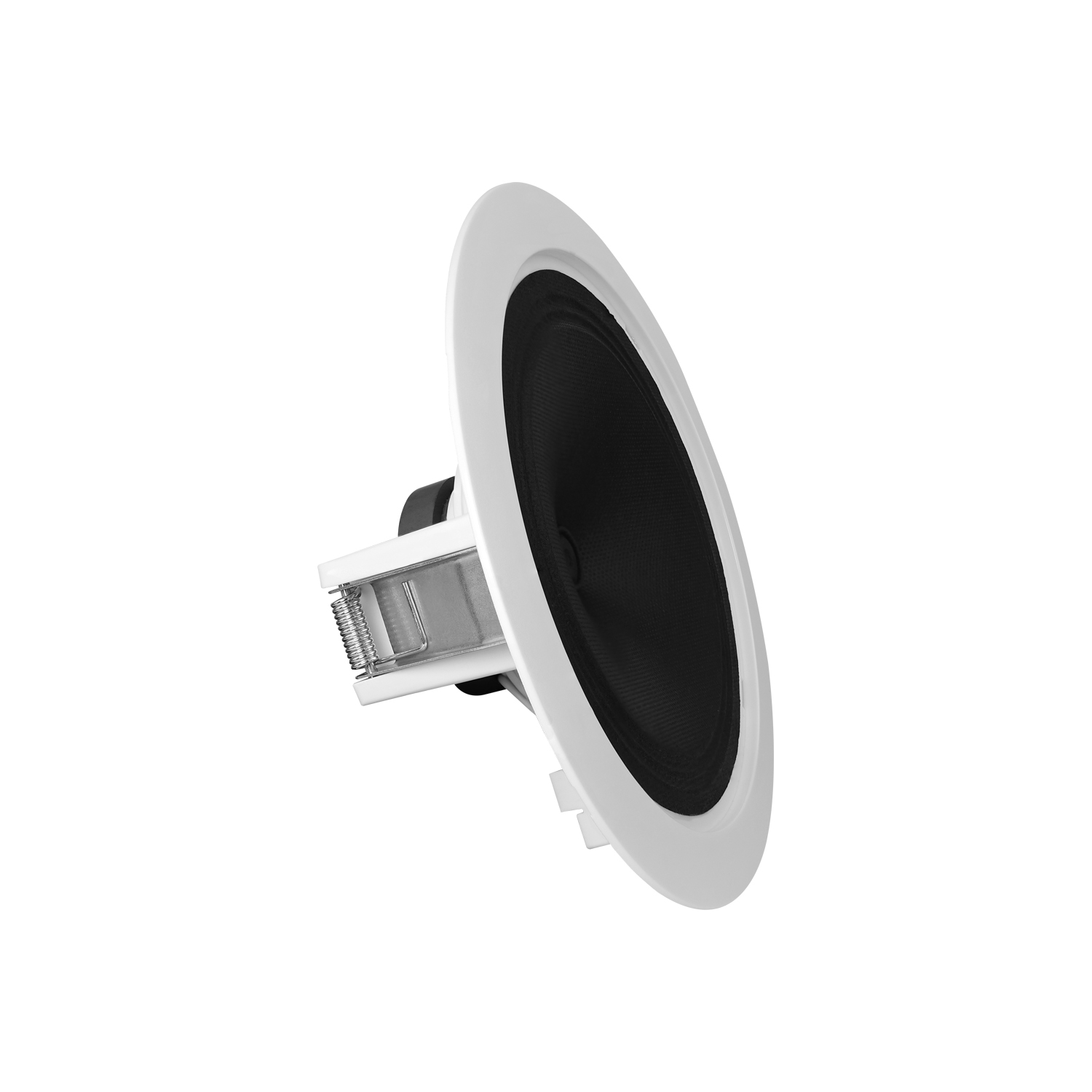

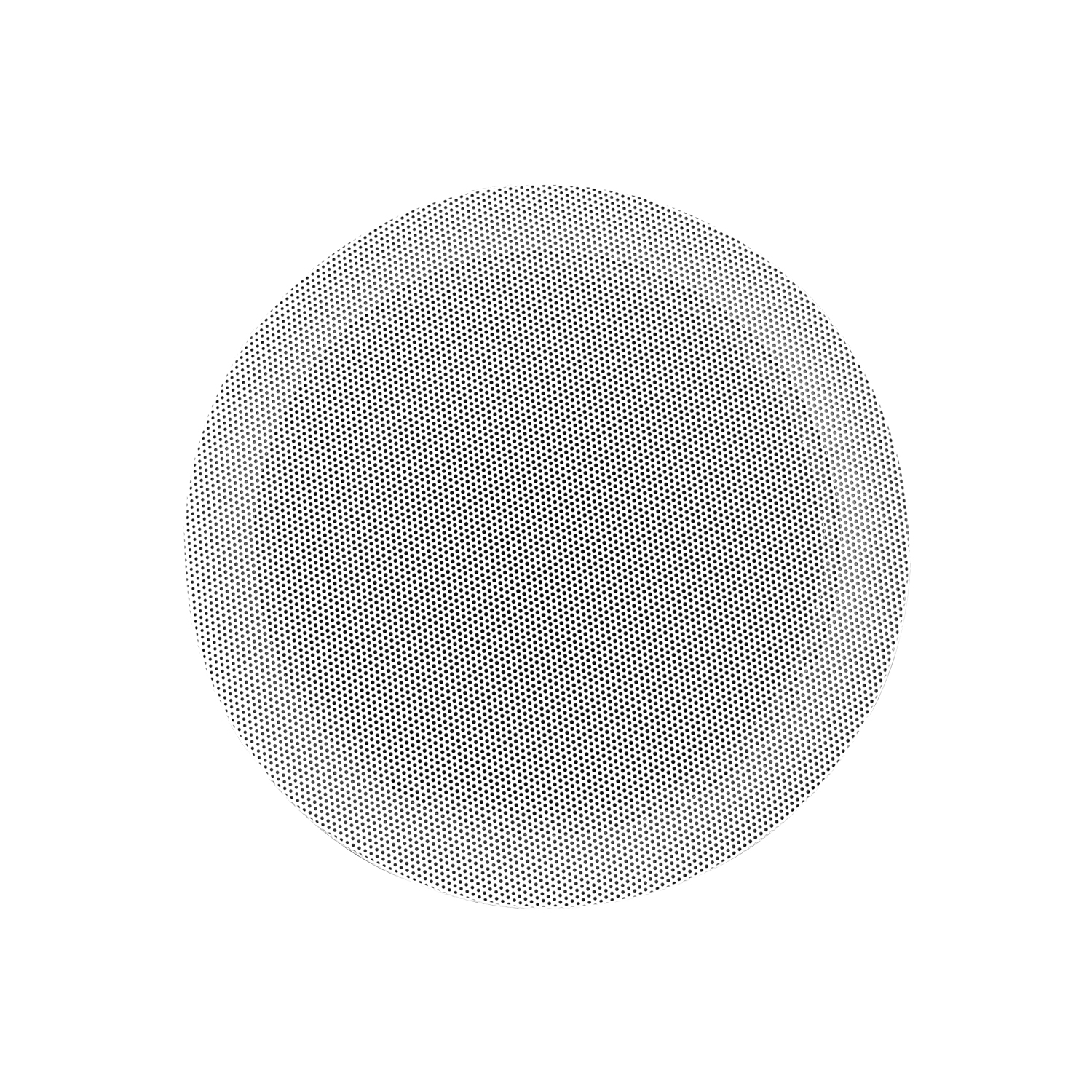

5.25-Inch Ceiling Speaker

  • Flexible 100V/8Ω Ceiling Speaker Seriesfor PA systems and commercial audio applications.
  • Dual Power Tapsfor flexible system configuration.
  • Wide Sound Dispersiondelivering clear and uniform audio coverage.
  • Spring-clamp mounting for fast and secure installation
  • Ultra-slim design for installations with limited ceiling space
  • Durable ABS enclosure with metal grille
  • Standard and Rimless Designs Availablefor different architectural applications.
  • Suitable for background music and voice paging
Get a Quote
Downloads
Model CSP-5T CSP-5TL CSP-5 CSP-5L
Product Type Standard Design Rimless Design Standard Design Rimless Design
Rated Power 3W/6W@100V 8W@8ohm
Frequency Response 100Hz-16.5KHz±1
Sensitivity(1M/1W) 90dB ±1dB
Vertical Dispersion Angle 120 degree
Product Size Dia 180*57mm
Cutout Size Dia 150-155mm
Color White
Enclosure Material ABS
Speaker Size 5.25-Inch
Net Weight 456g 470g 342g 358g
