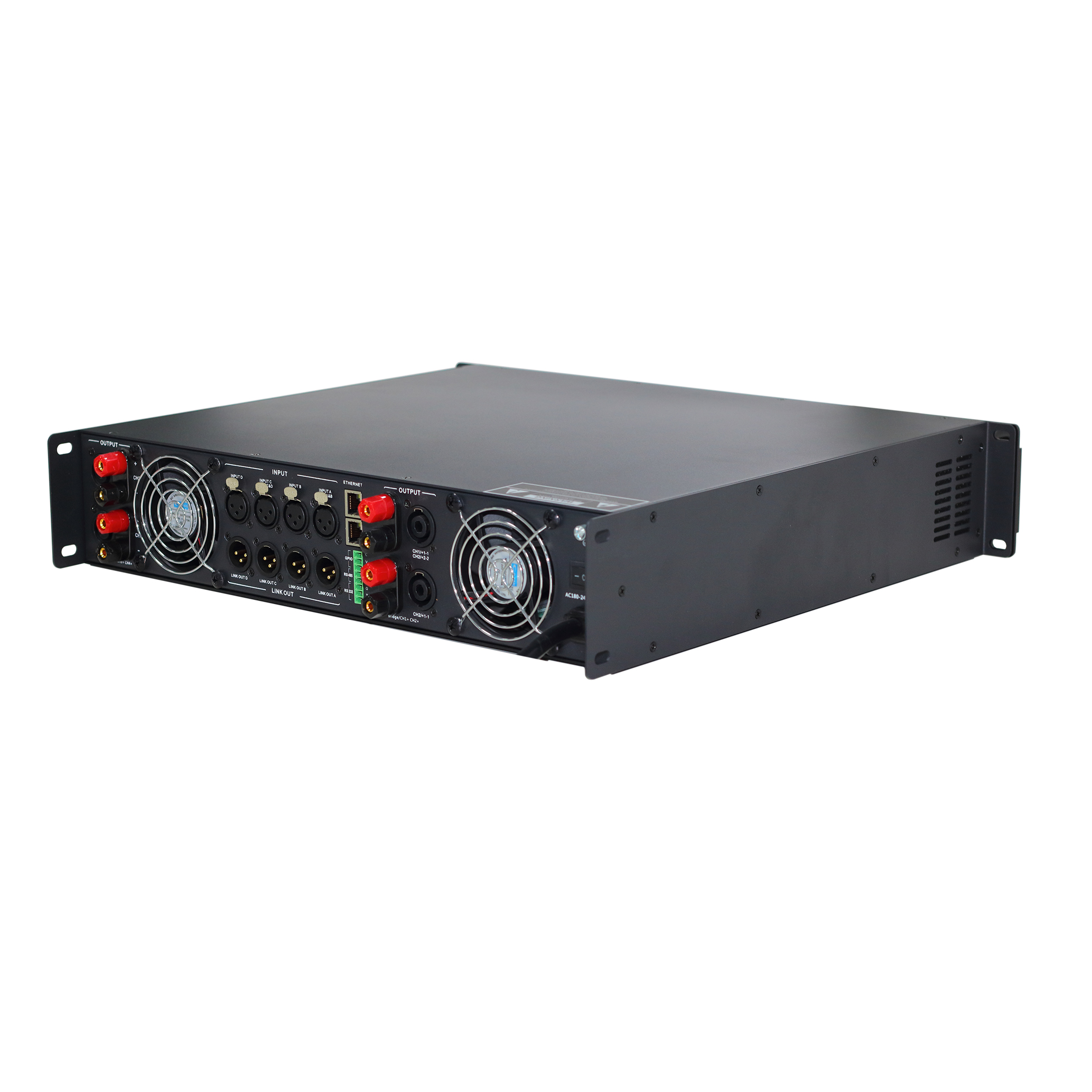

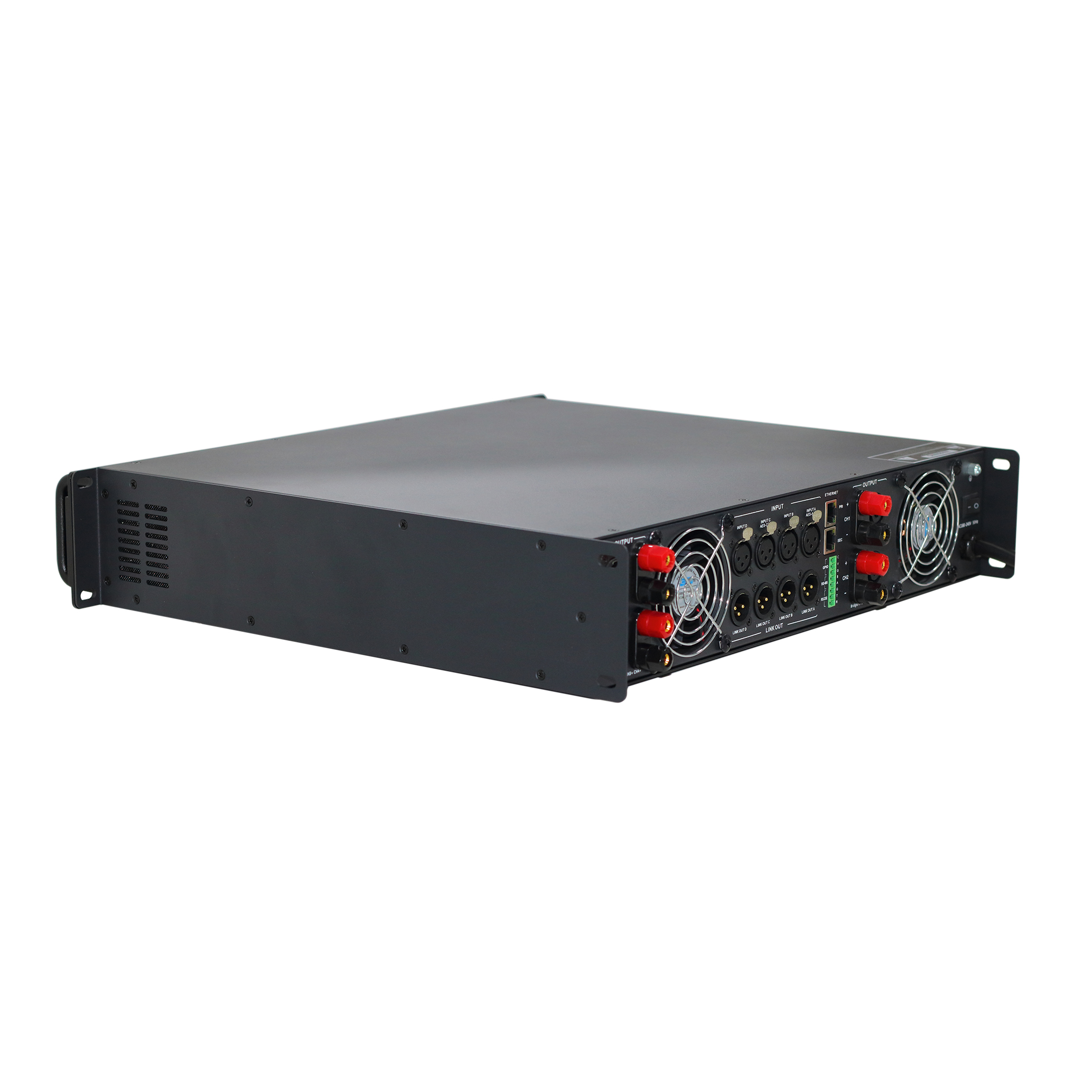

PA Series is a multifunctional network DSP digital power amplifier, which can remotely monitor the status of the power amplifier in real time, and it can set the compressor, limiter, noise gate, parametric equalization, matrix routing, delay as well as other DSP functions in real time. A simple software interface provides customers with simple and convenient settings and operating experience. Besides, the multiple connection methods can achieve good configurability and scalability, which is suitable for various environments.
Features
1. Optional for Dante network audio
2. With network TCP/IP control, and it can realize the management of multiple devices
3. Power on or off remotely

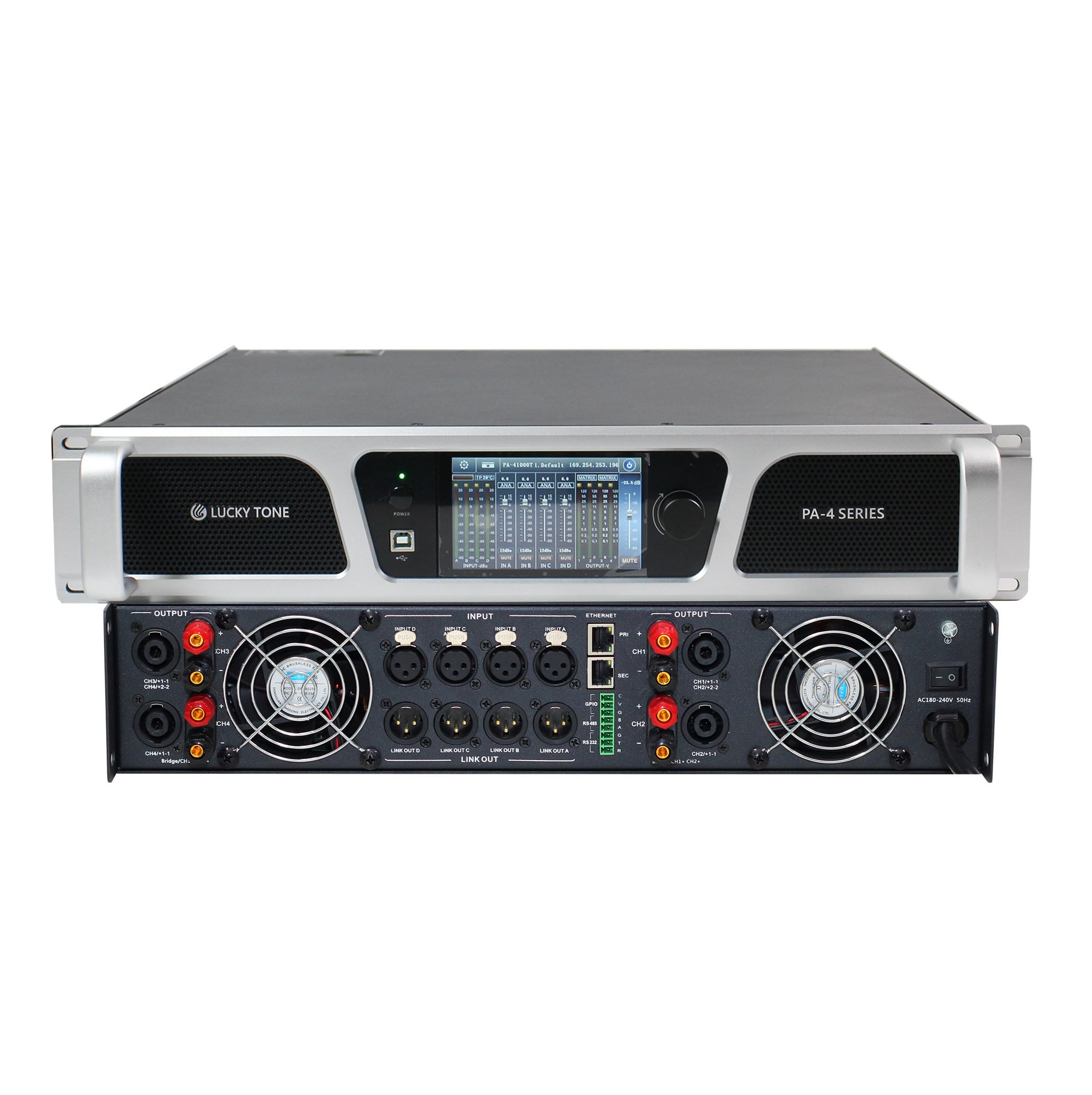

4. Use 4.3 inch IPS capacitive touch screen
5. With built-in DSP digital processor
6. Support multiple connection method: USB, TCP/IP, RS232, RS485
7. Monitor the working status of the power amplifier remotely in real time
8. The power amplifier can be identified by software on site
9. Switch to bridging or matrix mode freely
10. Three levels of input sensitivity can be adjusted 0dBu/6dBu/12dBu, software or color LCD screen setting
11. With standard Fir function, support 4×2048 Taps
12. Support constant voltage and constant resistance: 100V, 70V, 8 ohms, 4 ohms
13. Software control, it can control media matrix and professional processor at the same time
14. Wide voltage operation 180-264VAC
Ordering code
PA-41500TD
4*1500W@8Ω,4*2000W@4Ω,100V (4*1250W); 70V(4*600W); Amplifier with DANTE AND DSP
PA-41500T
4*1500W@8Ω,4*2000W@4Ω,100V (4*1250W); 70V(4*600W); Amplifier with DSP
PA-41000TD
4*1000W@8Ω,4*1600W@4Ω,100V (2*1250W); 70V(4*600W); Amplifier with DANTE AND DSP
PA-41000T
4*1000W@8Ω,4*1600W@4Ω, 100V (2*1250W); 70V(4*600W); Amplifier with DSP
PA-4800TD
4*800W@8Ω,4*1600W@4Ω,100V (2*1250W); 70V(4*600W); Amplifier with DANTE AND DSP
PA-4800T
4*800W@8Ω,4*1600W@4Ω,100V (2*1250W); 70V(4*600W); Amplifier with DSP
|
MODEL
|
PA-41500T |
PA-41000T
|
PD-4800T |
|
Channels
|
4
|
4
|
4
|
|
Rated power
|
4*1500W@8Ω,4*2000W@4Ω, 100V (4*1250W); 70V(4*600W); |
4*800W@8Ω,4*1600W@4Ω, 70V(4*600W) |
|
|
Bridge power
|
2*3200W@8Ω |
2*2560W@8Ω, 2*1250W@100V
|
2*3200W@8Ω;100V(2*1250W) |
|
Minimum output impedance
|
4Ω for each channel |
4Ω for each channel
|
4Ω for each channel
|
|

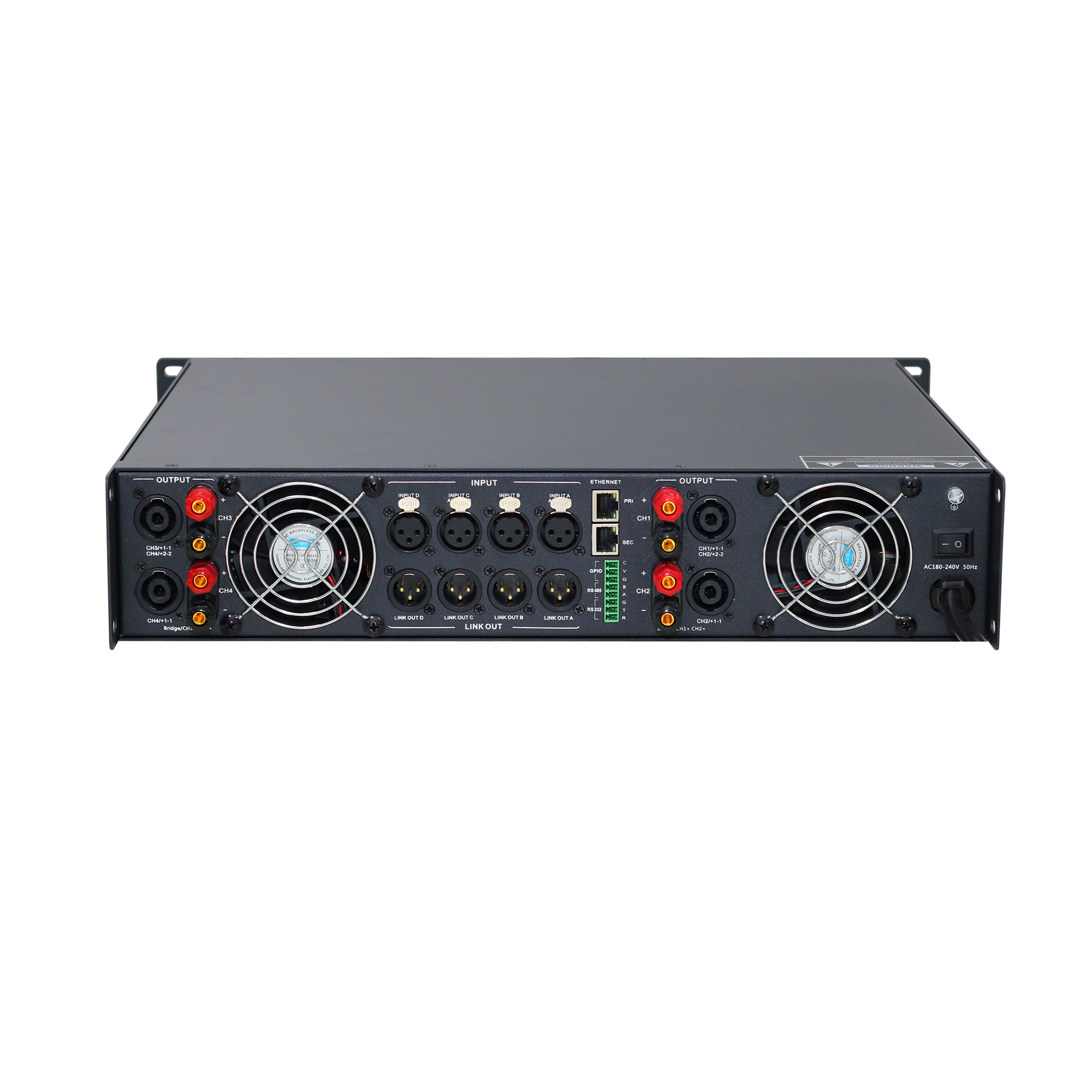

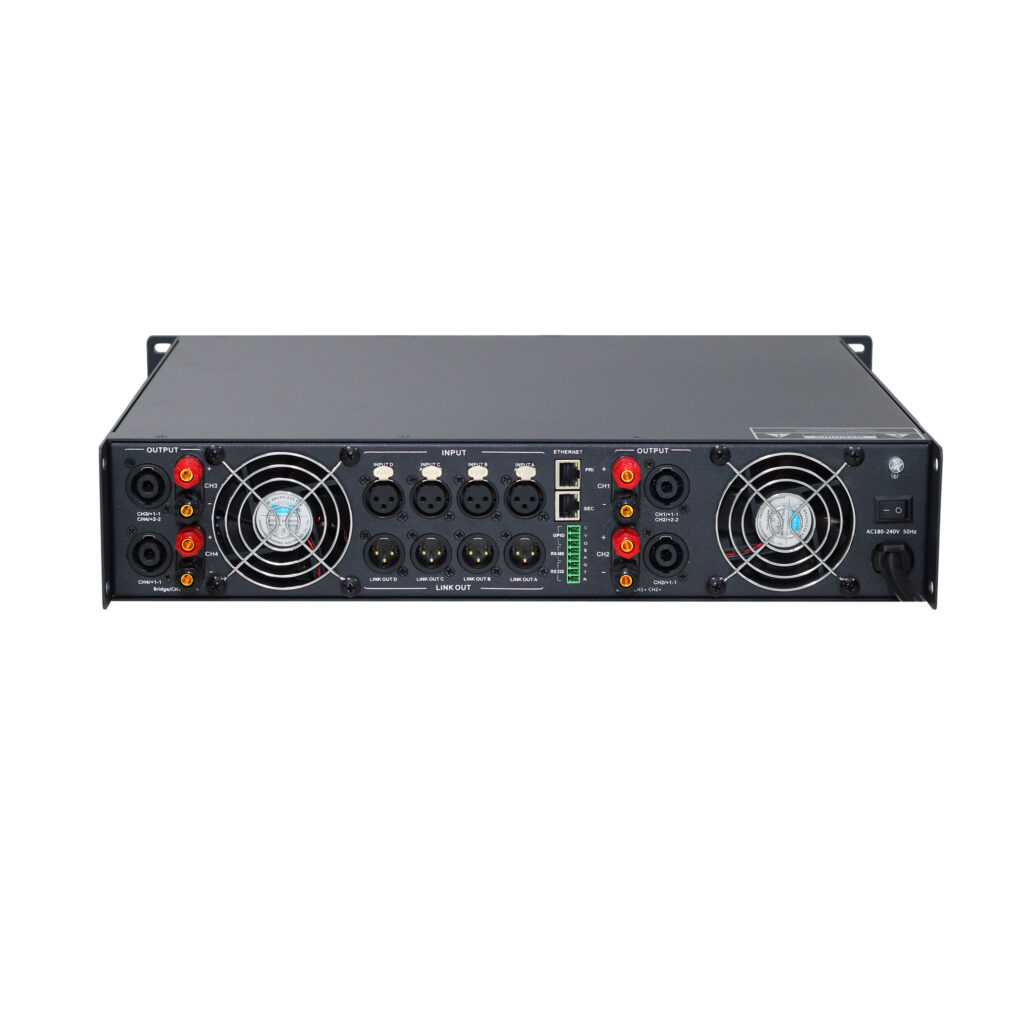

Input
|
Balanced input, 4*XLR
|
Balanced input, 4*XLR
|
Balanced input, 4*XLR
|
|
Output
|
4*Spoken; 4*Terminal
|
4*Spoken; 4*Terminal
|
4*Spoken; 4*Terminal
|
|
Maximum input level
|
20dBu/7.75V
|
20dBu/7.75V
|
20dBu/7.75V
|
|
Sensitive
|
12dBu:31dB/6dBu:37dB/0dBu:43dB |
12dBu:29.3dB/6dBu:35.3dB/0dBu:41.3dB
|
12dBu:28.3dB/6dBu:34.3dB/0dBu:40.3dB |
|
Signal to noise ratio
|
103dB@12dBu/ 1kHz
|
103dB@12dBu/ 1kHz
|
103dB@12dBu/ 1kHz
|
|
Frequency
|
20Hz ~20kHz (±0.5dB) @1W，8Ω
|
20Hz ~20kHz (±0.5dB) @1W，8Ω
|
20Hz ~20kHz (±0.5dB) @1W，8Ω
|
|
THD+N
|
<0.08%@1W
|
<0.08%@1W
|
<0.08%@1W
|
|
Sampling rate
|
48k/24bit
|
48k/24bit
|
48k/24bit
|
|
Dante（Optional）
|
4 Dante channels
|
4 Dante channels
|
4 Dante channels
|
|
Display
|
4.3 inch IPS capacitive touch screen
|
4.3 inch IPS capacitive touch screen
|
4.3 inch IPS capacitive touch screen
|
|
Protection
|
Audio limiter, high temperature, DC, high frequency,short circuit, back-EMF, peak current limiter, inrush current
limiter, start-up delay, power circuit breaker protection, power supply overvoltage/undervoltage protection |
||
|
PC software
|
Software can control media matrix, audio processor, DSP power amplifier, active DSP module
|
||
|
Power supply
|
180-264VAC
|
180-264VAC
|
180-265VAC |
