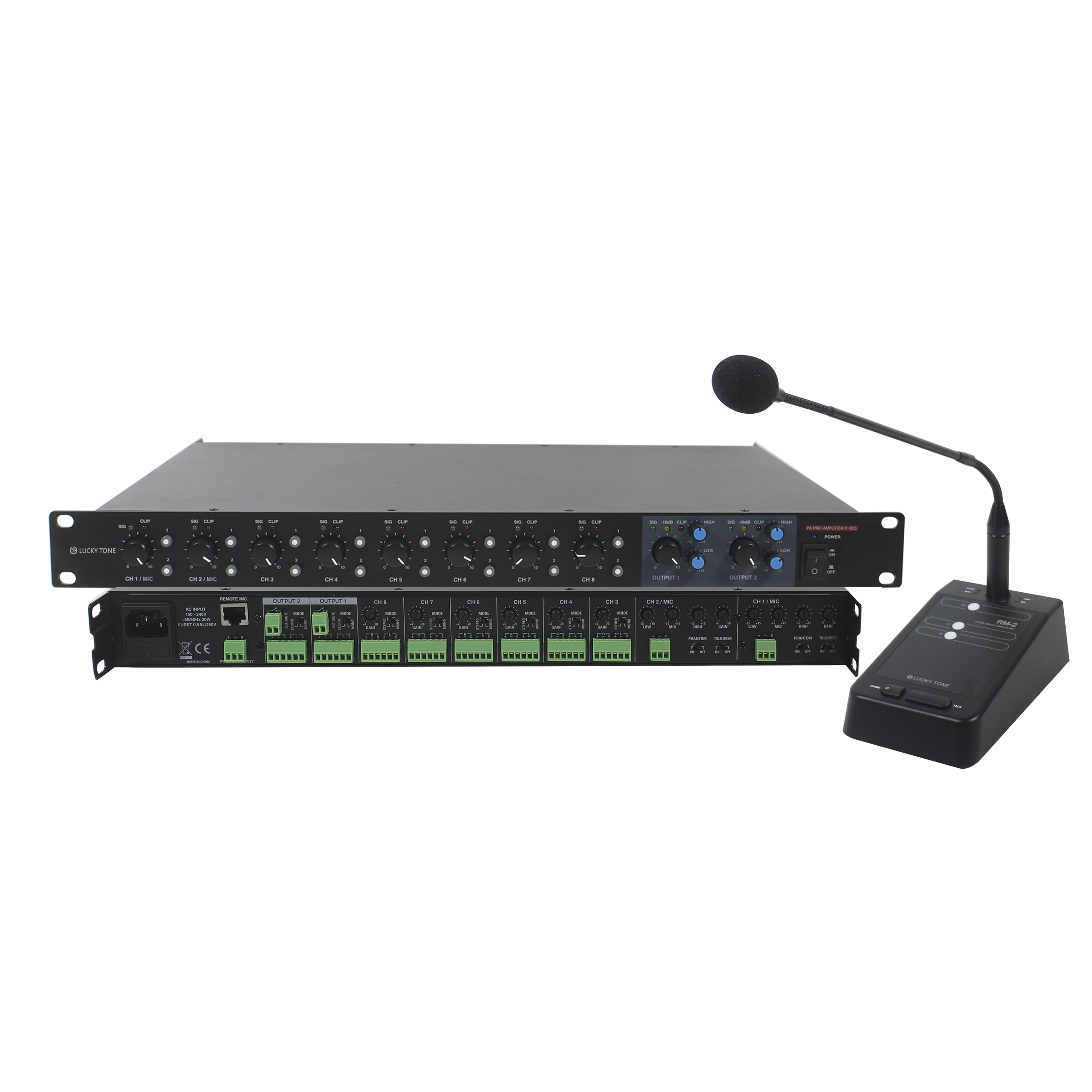

2 Zone Paging Microphone for P82S

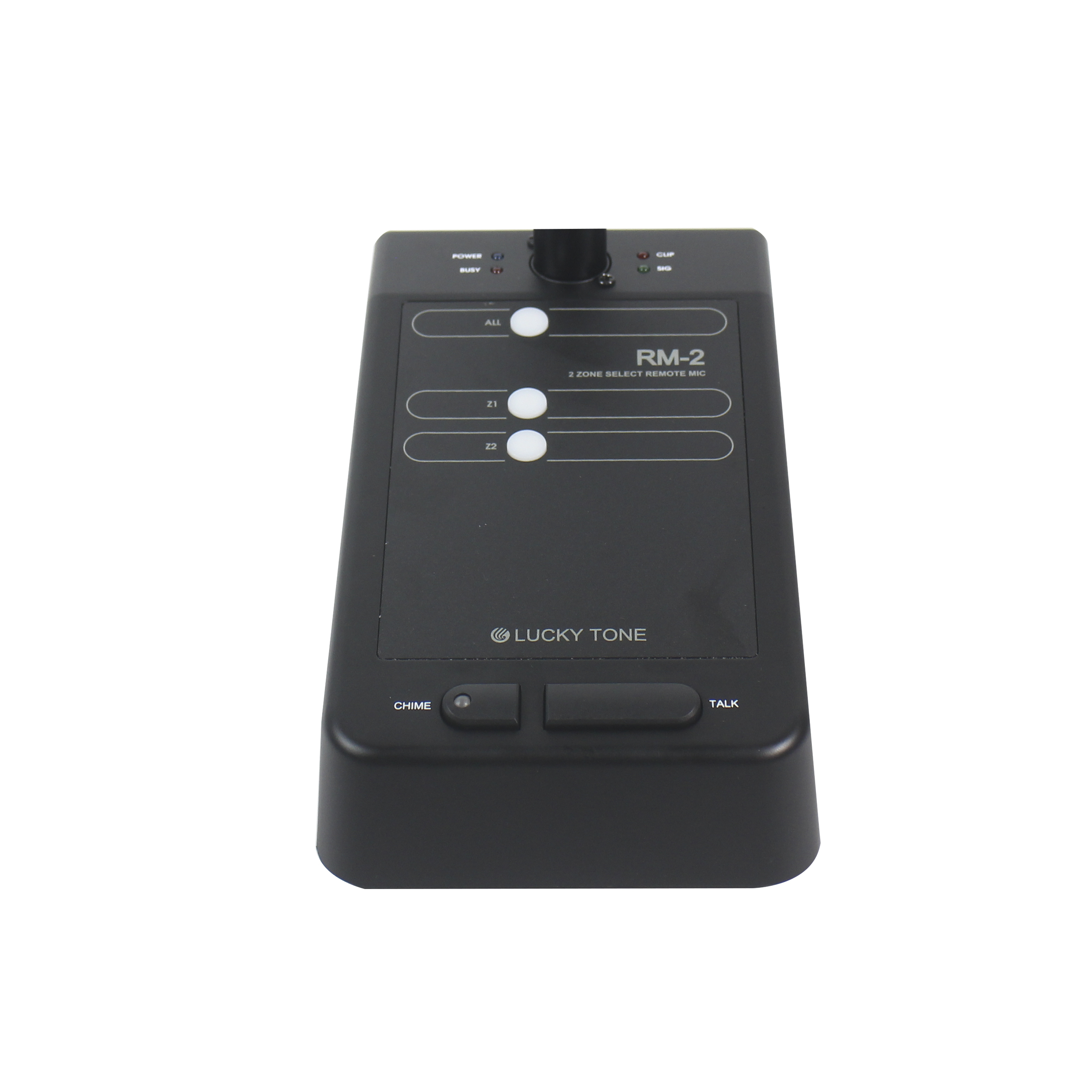

Controls

Zone selector switch, All & 2 Zones. Talk & Chime switch.

Level control volume for MIC and Chime output.

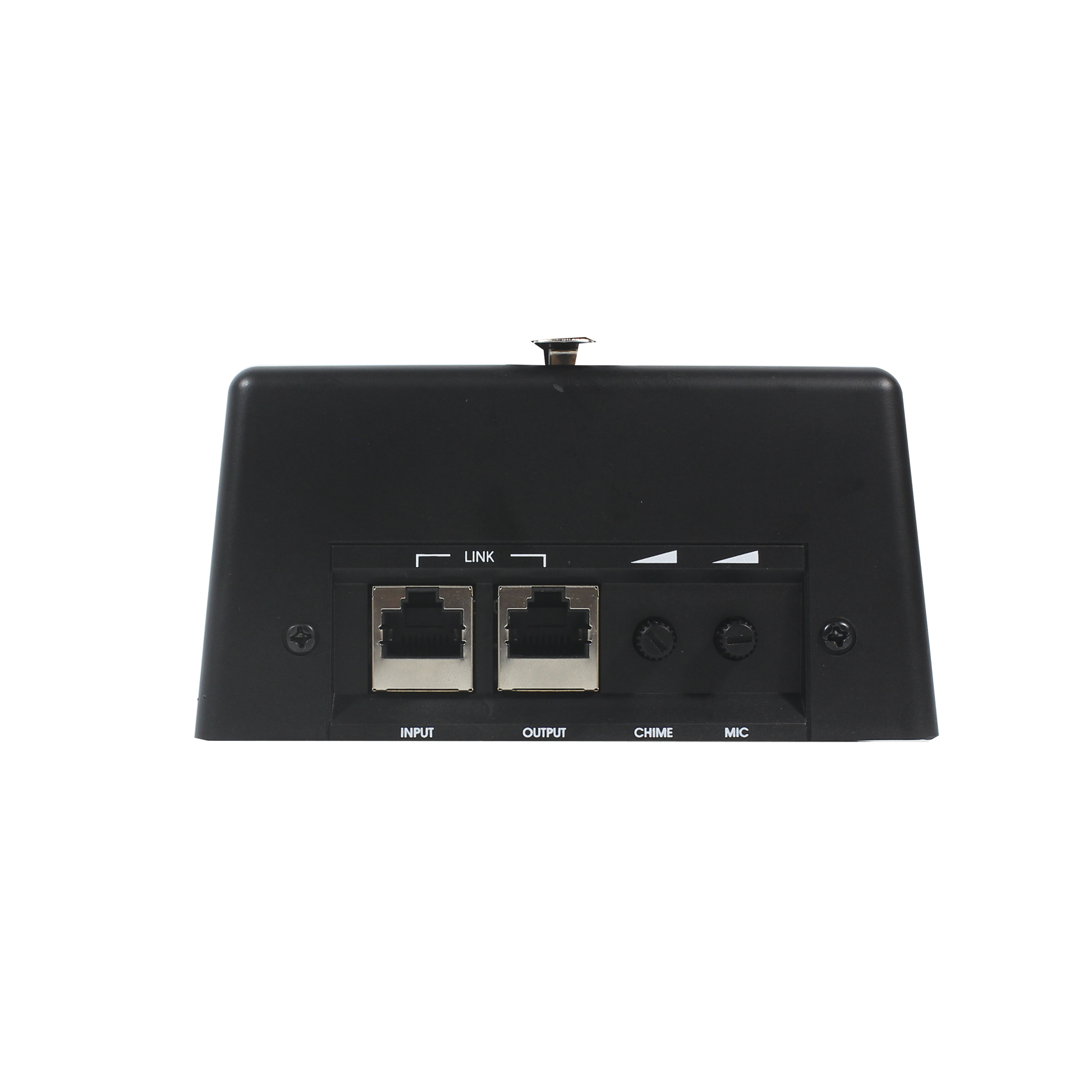

Connectors

RJ45 to connect with Model P82S.

Indicators: Power, Busy, Signal , Clip

Model	RM-2
Rated Output Level / Impedance	0dB / 600 Ω Balanced
Input sensitivity / Impedance	-36dB / 20kΩ Balanced
Frequency Response (-1dB)	80Hz – 15kHz
T.H.D	< 0.1%
Hum & Noise	> 90 dB
Number of Zone	2 Zones
Weight (Net)	1.2 kg
Dimensions (W x H x D)	120 x 60 x 200mm (only body)
