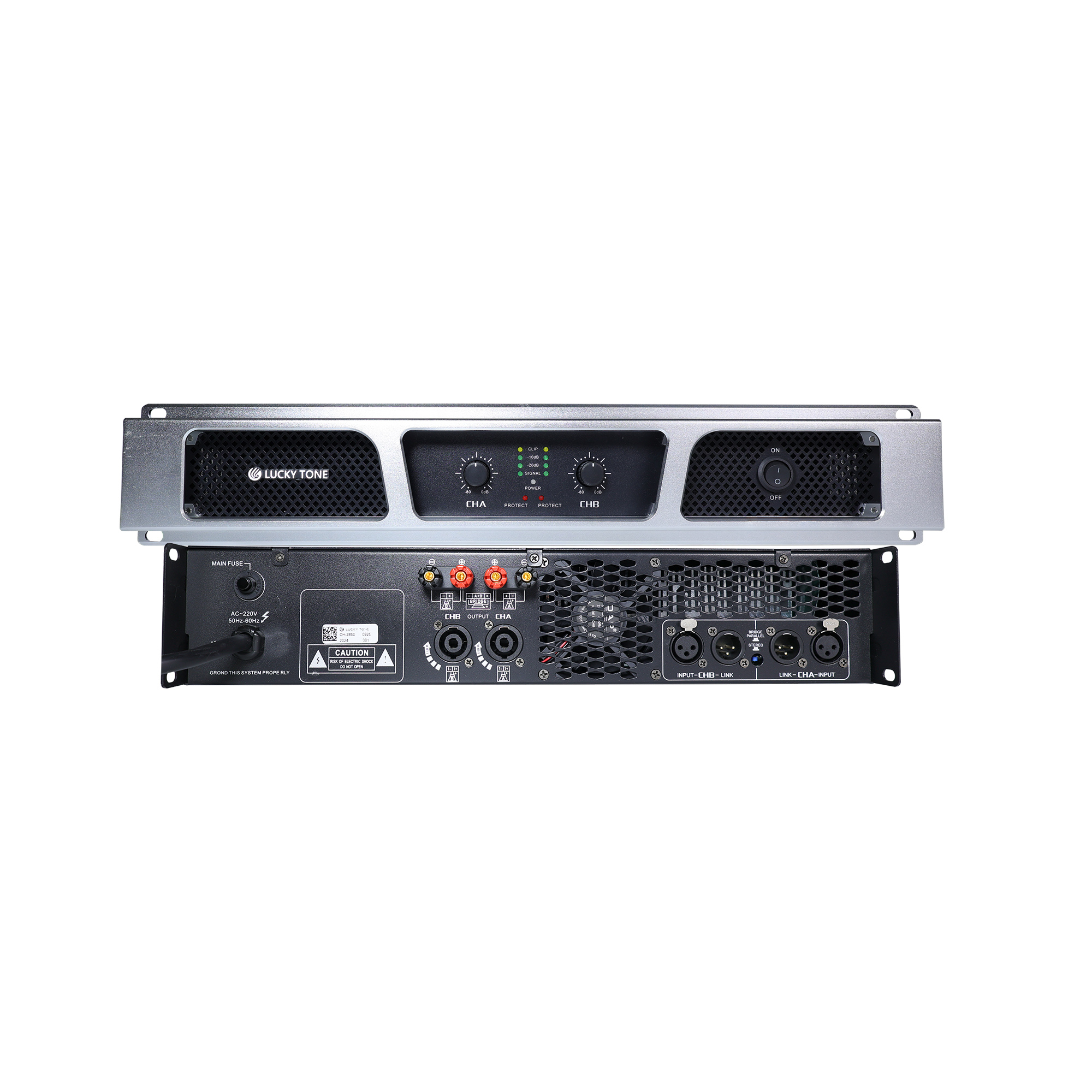

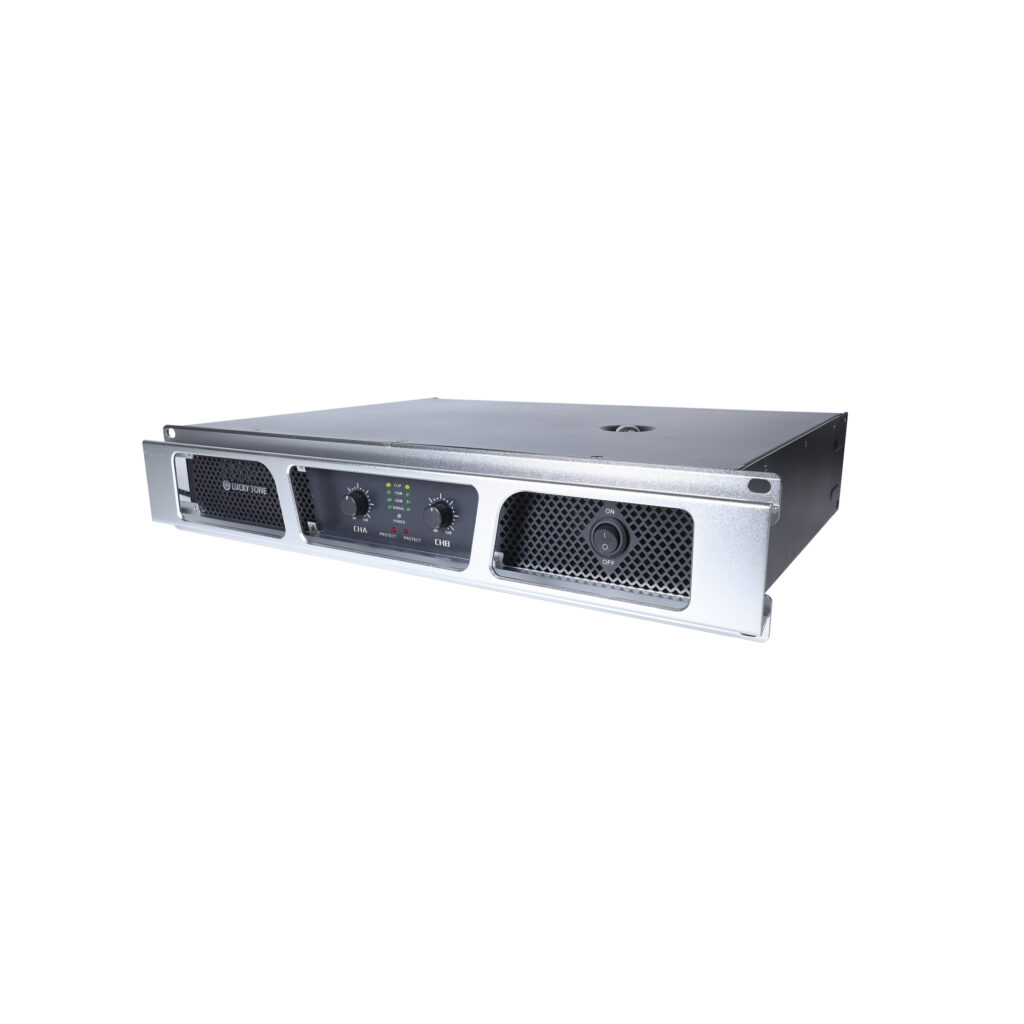

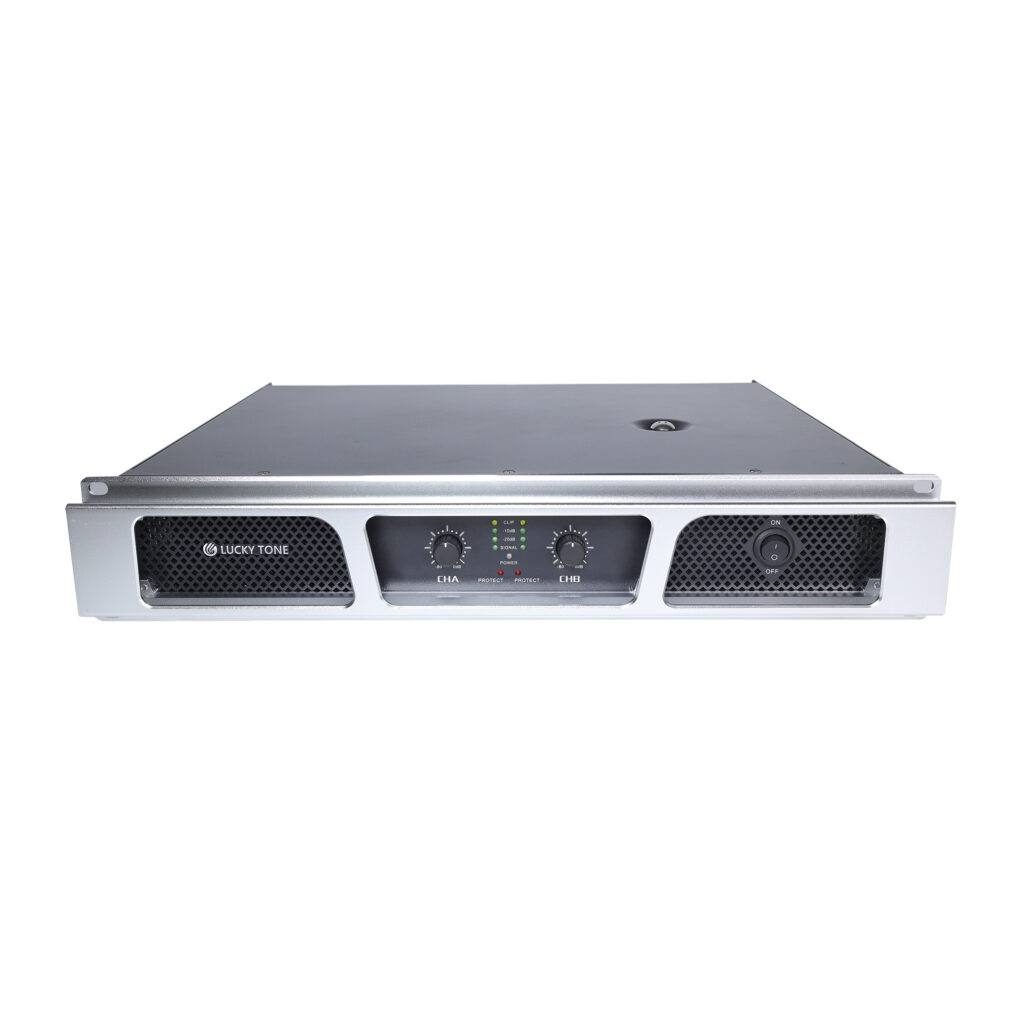

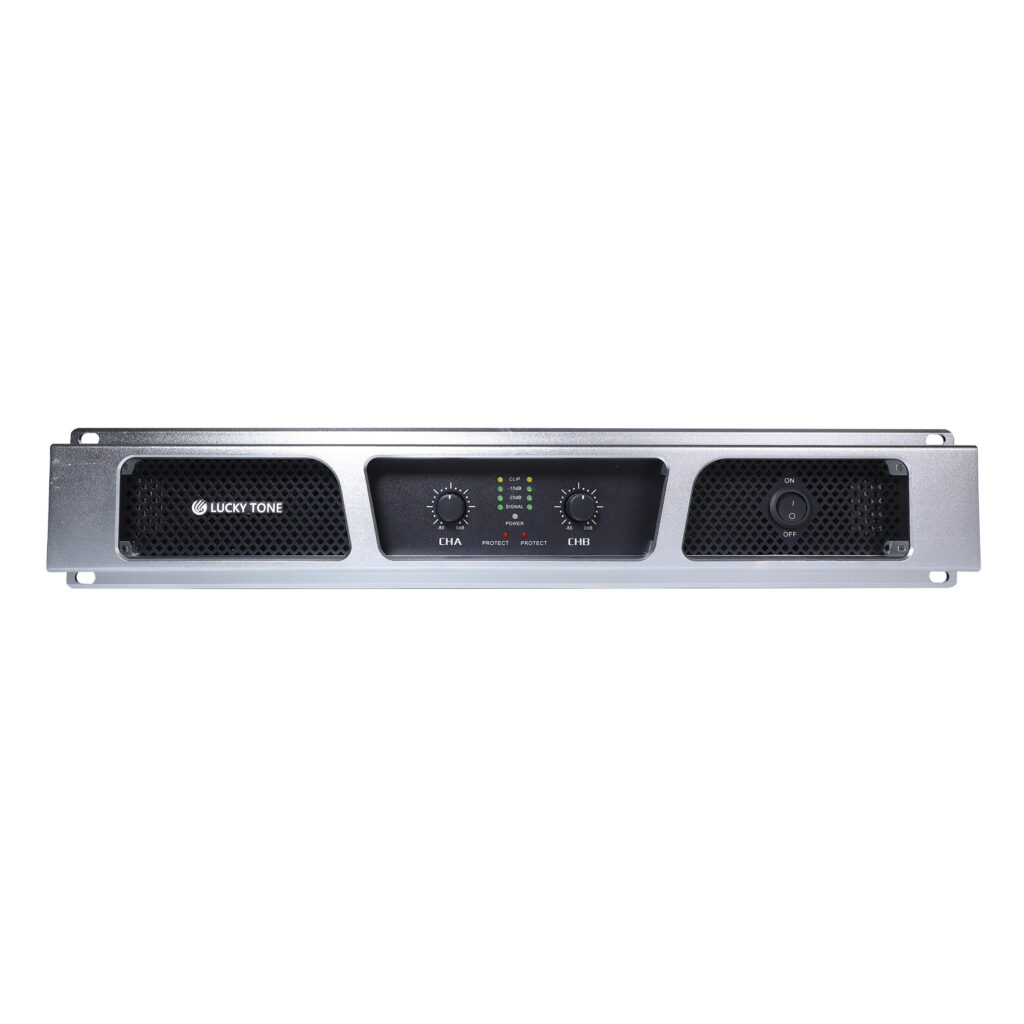

2-Channel Power Amplifier

2U standard
Large energy power supply , high-efficiency and super ring transformer
With protection, signal, clip, bridge and power LED
Lift and right channel with dual polar cooling fan, high- efficiency air cooling channel
With a power star soft, DC protection, short protection, thermal protection, overload protection

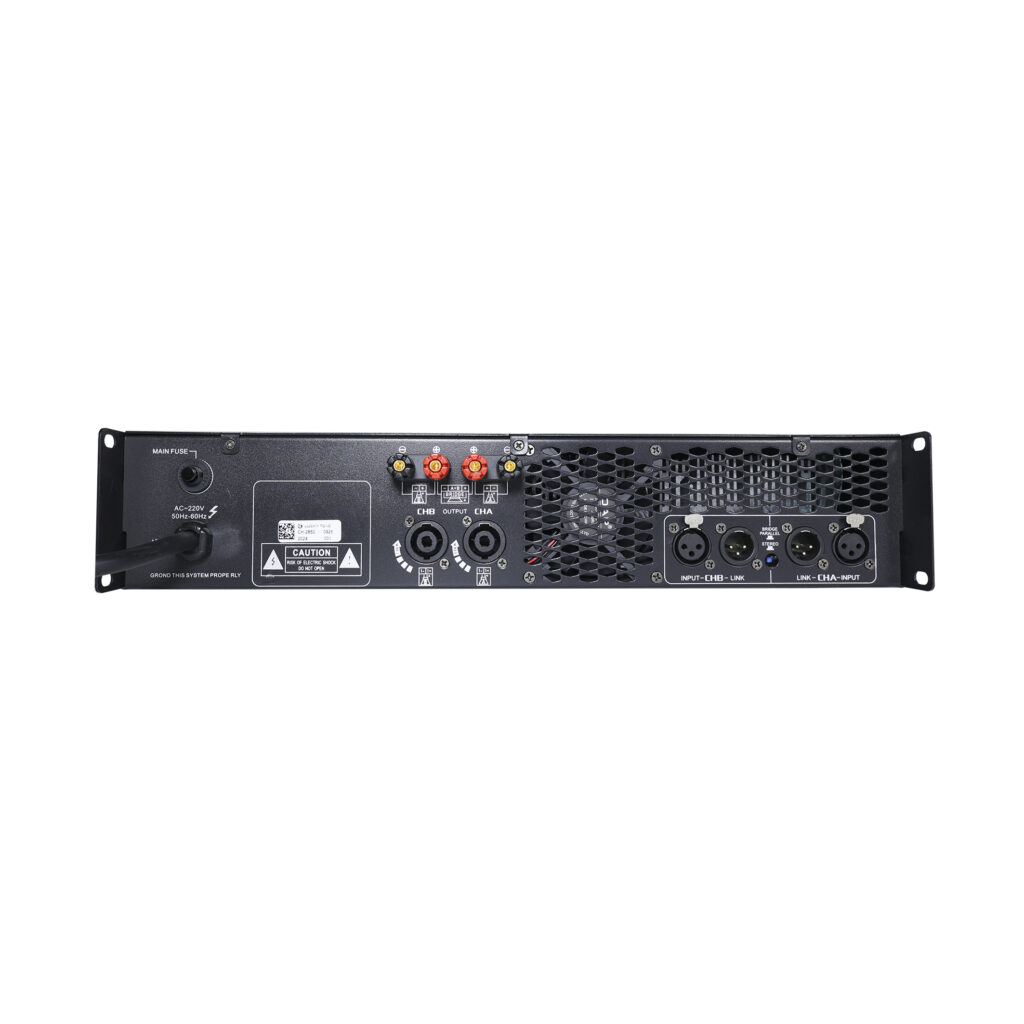

Equipped with dual input options (XLR male and XLR female) and dual output options (SpeakON), this professional amplifier series is designed to adapt to various system installation requirements.
This device features three operating modes: STEREO (A and B work independently), PARALLEL (for easy wiring), and BRIDGE (for high-power amplification).

Model	CH-2650	CH-2850	CH-21050	CH-21250	CH-21500
Output Power	2x650W@8ohm, 2x900W@4ohm	2x850W@8ohm, 2x1200W@4ohm	2x1050W@8ohm, 2x1500W@4ohm	2x1250W@8ohm, 2x1800W@4ohm	2x1500W@8ohm, 2x2150W@4ohm
Power Supply	AC190V-250V 50/60HZ	AC190V-250V 50/60HZ	AC190V-250V 50/60HZ	AC190V-250V 50/60HZ	AC190V-250V 50/60HZ
Harmonic Distortion (1kHz, 8 ohm)	<0.01%	<0.1%	<0.1%	<0.1%	<0.1%
Frequency Response	20Hz-20kHz(+/-1dB)	20Hz-20kHz: +/-1dB	20Hz-20kHz: +/-1dB	20Hz-20kHz: +/-1dB	20Hz-20kHz: +/-1dB
Sensitivity	0.775V*40	0.775V*40	0.775V*40	0.775V*40	0.775V*40
SNR	≥100dB(A-weighted)	≥100dB(A-weighted)	≥100dB(A-weighted)	≥100dB(A-weighted)	≥100dB(A-weighted)
Damping Factor	≥300@8ohms	≥300@8ohms	≥300@8ohms	≥300@8ohms	≥300@8ohms
Slew Rate	25V/US	25V/US	25V/US	25V/US	25V/US
Input Impedance	Balanced: 20K Unbalanced: 10K	Balanced: 20K Unbalanced: 10K	Balanced: 20K Unbalanced: 10K	Balanced: 20K Unbalanced: 10K	Balanced: 20K Unbalanced: 10K
Channel Isolation	60dB@8ohms 1Khz	60dB@8ohms 1Khz	60dB@8ohms 1Khz	60dB@8ohms 1Khz	60dB@8ohms 1Khz
Output Type	Class-2H	Class-2H	Class-2H	Class-TD	Class-TD
LED Indicators	Power/Signal/Distortion/Clipping	Power/Signal/Distortion/Clipping	Power/Signal/Distortion/Clipping	Power/Signal/Distortion/Clipping	Power/Signal/Distortion/Clipping
Input Connectors	Balanced XLR (Male/Female)	Balanced XLR (Male/Female)	Balanced XLR (Male/Female)	Balanced XLR (Male/Female)	Balanced XLR (Male/Female)
Output Connectors	SPEAKON, Binding Posts	SPEAKON, Binding Posts	SPEAKON, Binding Posts	SPEAKON, Binding Posts	SPEAKON, Binding Posts
Cooling System	Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting	Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting	Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting	Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting	Overheat, Overload, Short Circuit, DC Output Protection, Soft Start, Surge Limiting
Product Size(WxDxH)	482x378x88mm	482x378x88mm	482x378x88mm	482x440x88mm	482x440x88mm
Net Weight	13.5Kg	17.65Kg	17.65Kg	20.5Kg	20.5Kg
