In modern commercial audio projects, system integrators are looking for solutions that are easier to install, simpler to manage, and more flexible for future expansion. This is where PoE audio becomes an important technology.
PoE, or Power over Ethernet, allows audio devices to receive power and network data through a single Ethernet cable. In commercial audio systems, this means that one RJ45 connection can support audio transmission, power supply, and control signals, reducing the need for separate power wiring and simplifying the overall installation process.
For public address, background music, paging, conference, and commercial sound applications, PoE audio helps create a cleaner, more scalable system architecture.
What Is PoE Audio?
PoE audio refers to audio devices that can be powered through standard network cabling while receiving digital audio signals over the same cable. Instead of connecting a speaker to both an amplifier line and a local power supply, PoE-enabled speakers or amplifier modules can be connected directly to a compatible network switch.
This approach is especially useful in commercial buildings where cable routing, ceiling access, equipment room space, and future maintenance are important project considerations.
Lucky Tone’s Dante 6-inch coaxial ceiling speaker with PoE and DSP, for example, supports connection and power through a single Ethernet cable, helping reduce the need for additional power sources during installation.
Why One Cable Matters in Commercial Audio
Traditional commercial audio systems often require separate cabling for power, audio signal, and sometimes control. In larger projects, this can increase installation time, labor cost, and wiring complexity.
With PoE audio, the system design becomes more efficient:
| Traditional Wiring | PoE Audio Wiring |
| Separate power cable | Power through Ethernet |
| Separate audio cable | Digital audio over network |
| Local amplifier or speaker line required | Built-in amplification on selected devices |
| More complex cable routing | Cleaner single-cable deployment |
| Harder to expand or relocate | Easier network-based expansion |
For offices, hotels, retail stores, schools, restaurants, meeting rooms, and public facilities, this single-cable architecture can make installation faster and system maintenance more convenient.
PoE Speakers for Network Audio Systems
PoE is commonly used with Dante network audio and IP-based PA systems. Dante audio transmits high-quality digital audio over standard Ethernet networks, making it suitable for commercial audio distribution, multi-room paging, and centralized system control.
Lucky Tone’s Dante Wall Mounted Speaker can receive PoE power, audio transmission, and signal control through an RJ45 Ethernet port. It also supports routing and remote operation via Dante Controller software on PC or Mac.
For more demanding indoor or outdoor commercial applications, Lucky Tone also offers WIP Dante Wall Mounted Speakers with PoE. These models are available in 40W, 60W, and 80W versions, with IP66 protection for reliable installation in challenging environments such as retail spaces, restaurant patios, and outdoor venues.
PoE Amplifier Modules: Turning Passive Speakers into Network Audio Devices
PoE audio is not limited to active speakers. A PoE amplifier module can be integrated with passive loudspeakers or installed in ceilings, cabinets, under tables, or on walls, giving system designers more flexibility.

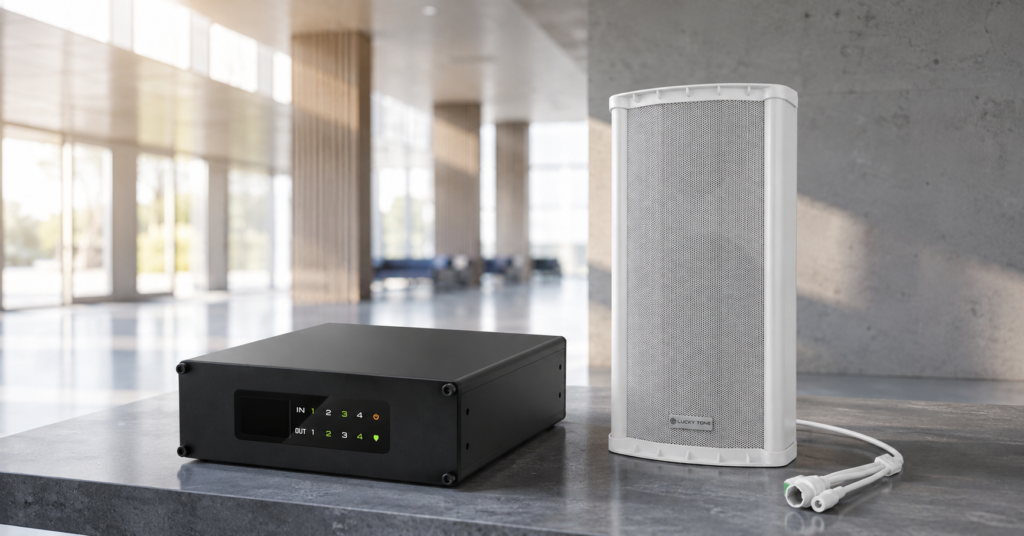

Lucky Tone’s Dante Network Amplifier Module with PoE and DSP is designed for high-quality, low-latency Dante audio distribution. It delivers audio transmission and PoE power through a standard RJ45 Ethernet port and supports DSP functions such as gain, EQ, crossover, limiter, and channel selection. It also enables remote monitoring of speaker temperature, audio level, and fault feedback.
This makes it suitable for small to medium fixed installations, commercial audio zones, meeting spaces, education facilities, and distributed paging systems.
DSP Makes PoE Audio More Flexible
A key advantage of many modern PoE audio products is built-in DSP, or Digital Signal Processing. DSP allows system integrators to adjust sound performance according to the room and application.
Common DSP functions include:
- Volume and mute control
- Equalization for room tuning
- Crossover adjustment
- Limiter protection
- Channel routing
- Fault and status monitoring
For commercial projects, this means the audio system can be tuned and managed more precisely without requiring manual adjustment at every speaker location.
Where PoE Audio Works Best
PoE audio is ideal for projects that require distributed sound coverage, network-based control, and flexible installation.
Typical applications include:
- Offices and corporate buildings
- Hotels and restaurants
- Retail stores and shopping centers
- Schools and campuses
- Meeting rooms and conference areas
- Public facilities and transportation spaces
- Outdoor commercial areas with weather-resistant speakers
In these environments, PoE audio helps reduce wiring complexity while supporting reliable background music, paging, voice announcements, and emergency notification functions.
Key Design Considerations
When designing a PoE audio system, it is important to consider the network switch standard, total PoE power budget, cable quality, transmission distance, speaker output power, and system topology.
For example, Lucky Tone’s Dante 6-inch coaxial ceiling speaker with PoE and DSP supports 802.3af / 802.3at / 802.3bt compatibility, while its network audio products typically use RJ45 interfaces and Cat-5 or Cat-6 cabling depending on the model.
A properly designed PoE audio system should balance power capacity, acoustic coverage, network stability, and long-term serviceability.
Conclusion
PoE audio provides a practical way to simplify commercial audio installation. By combining power, audio transmission, and control through a single network cable, it reduces wiring complexity and supports flexible system expansion.
For modern PA systems, Dante network audio, background music systems, and commercial paging applications, PoE speakers and PoE amplifier modules offer a clean, scalable, and professional solution.
With products such as Dante PoE ceiling speakers, Dante wall-mounted speakers, WIP Dante wall speakers, and Dante PoE amplifier modules, Lucky Tone provides integrators with reliable network audio solutions for today’s commercial spaces.
