SIP Explosion-Proof Phone, IP68

Description:

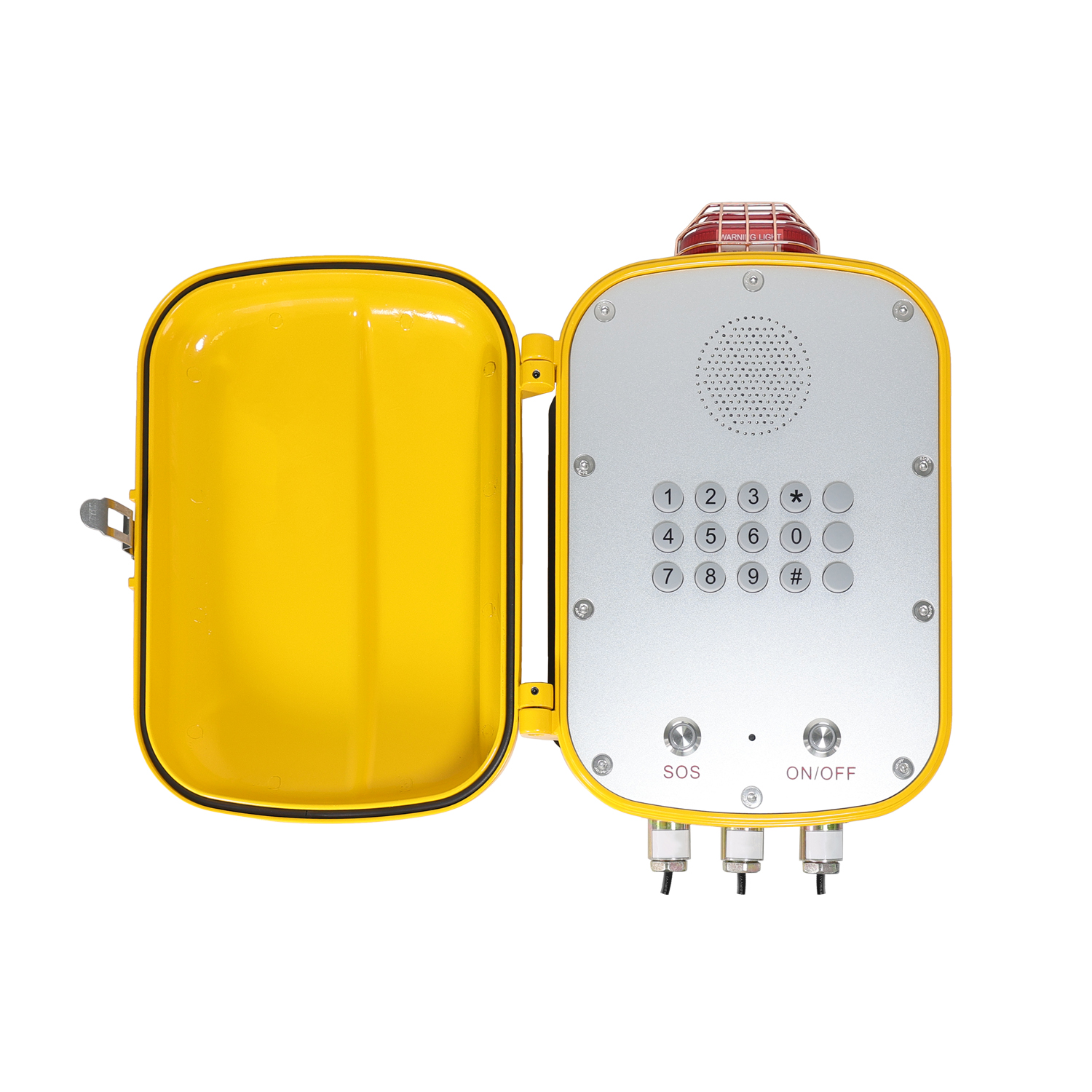

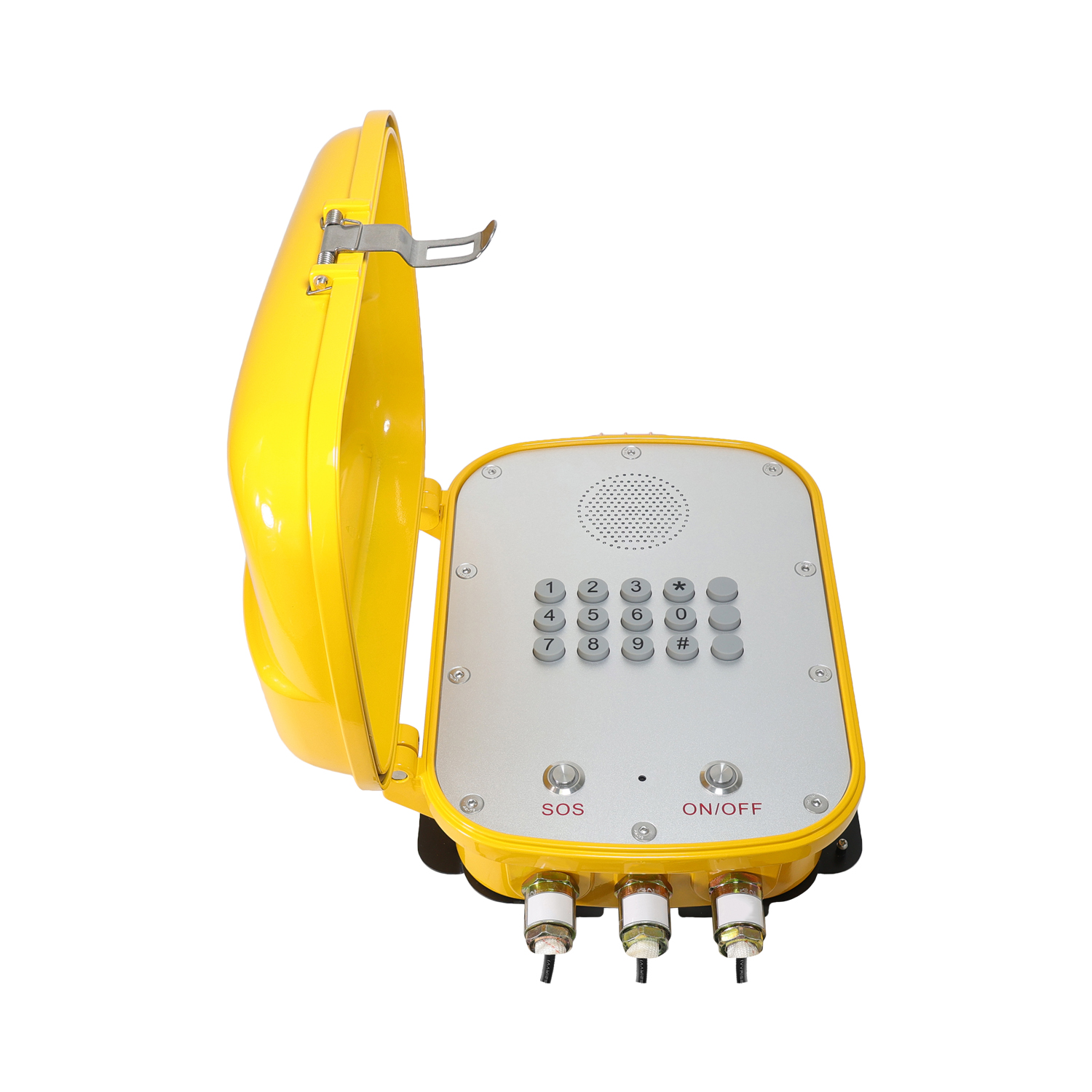

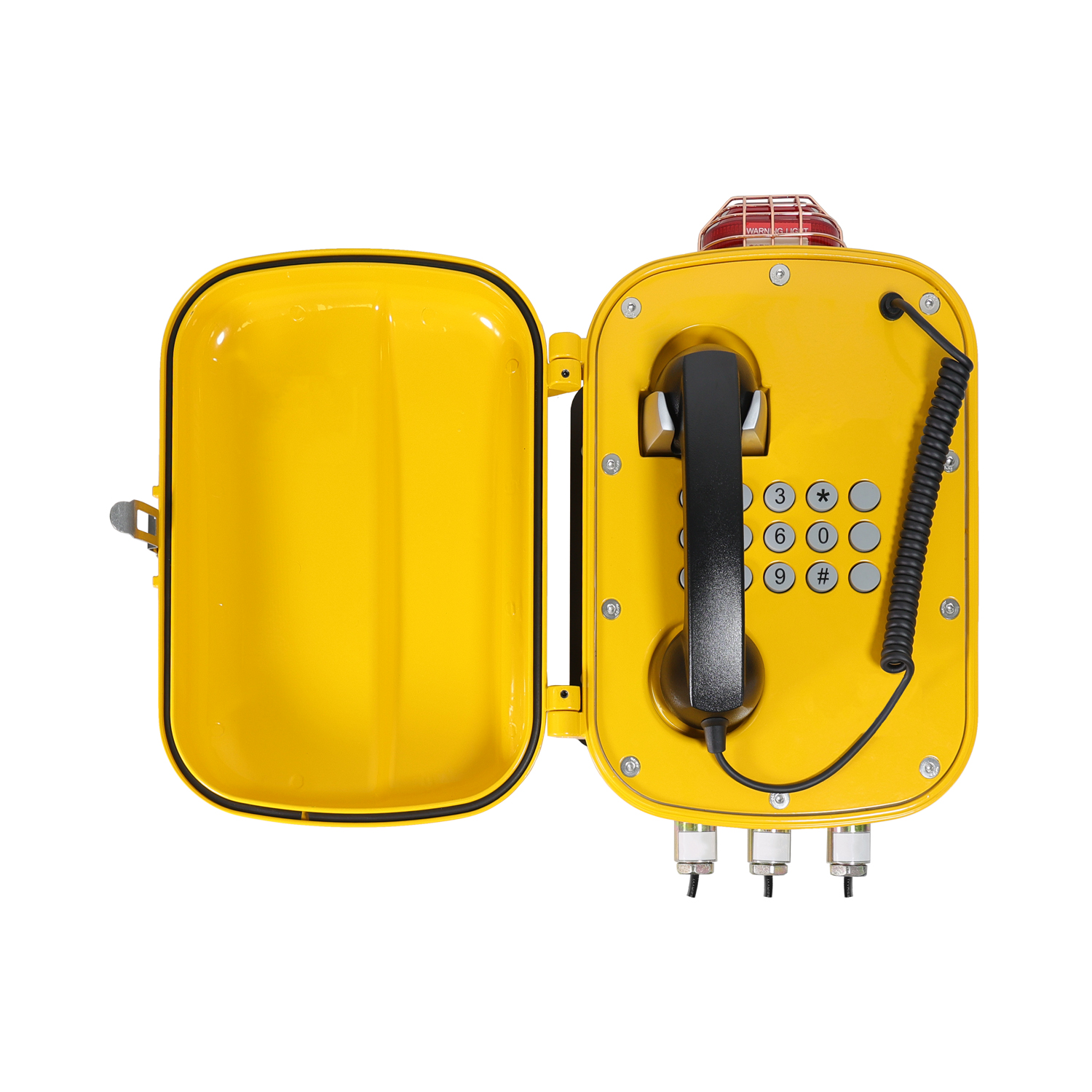

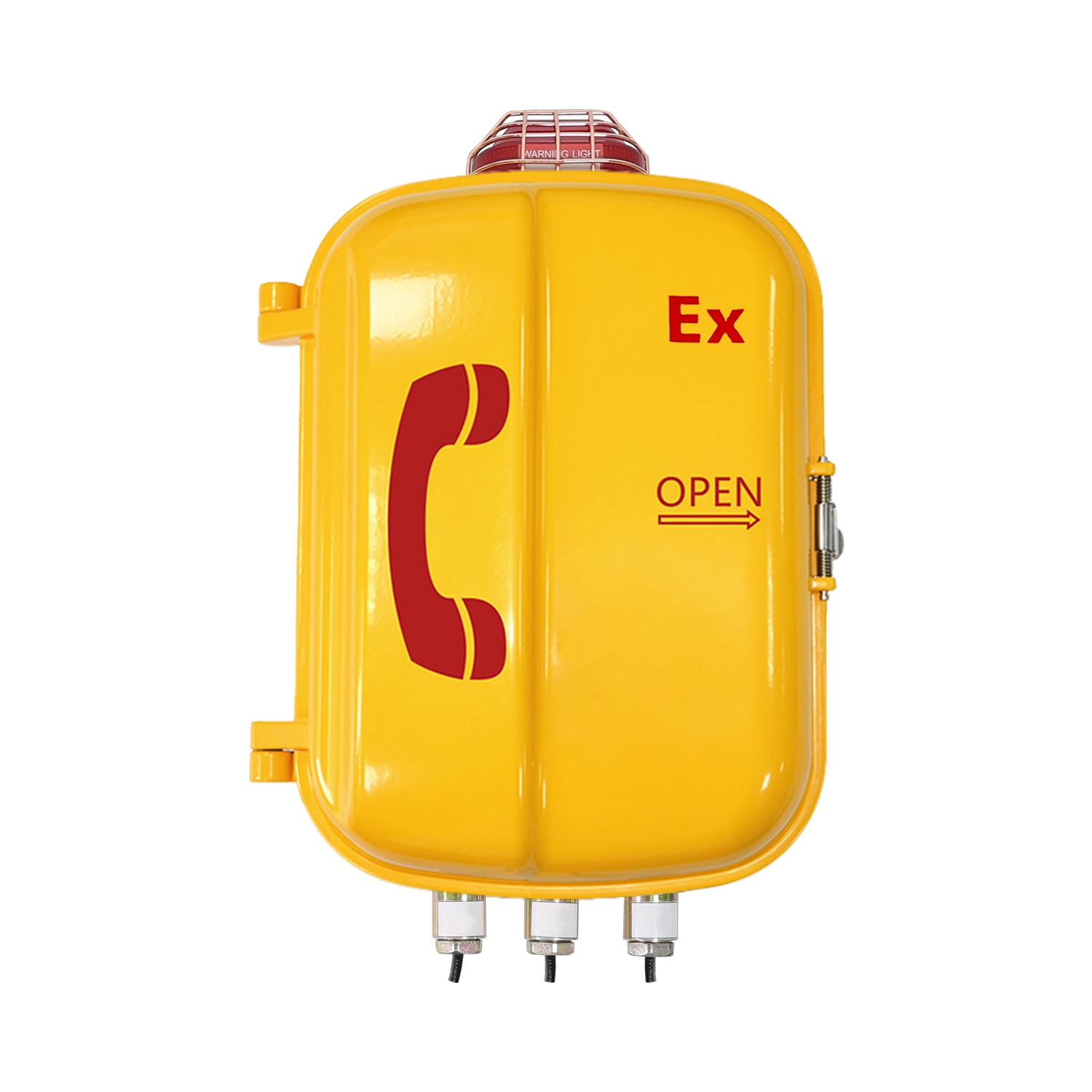

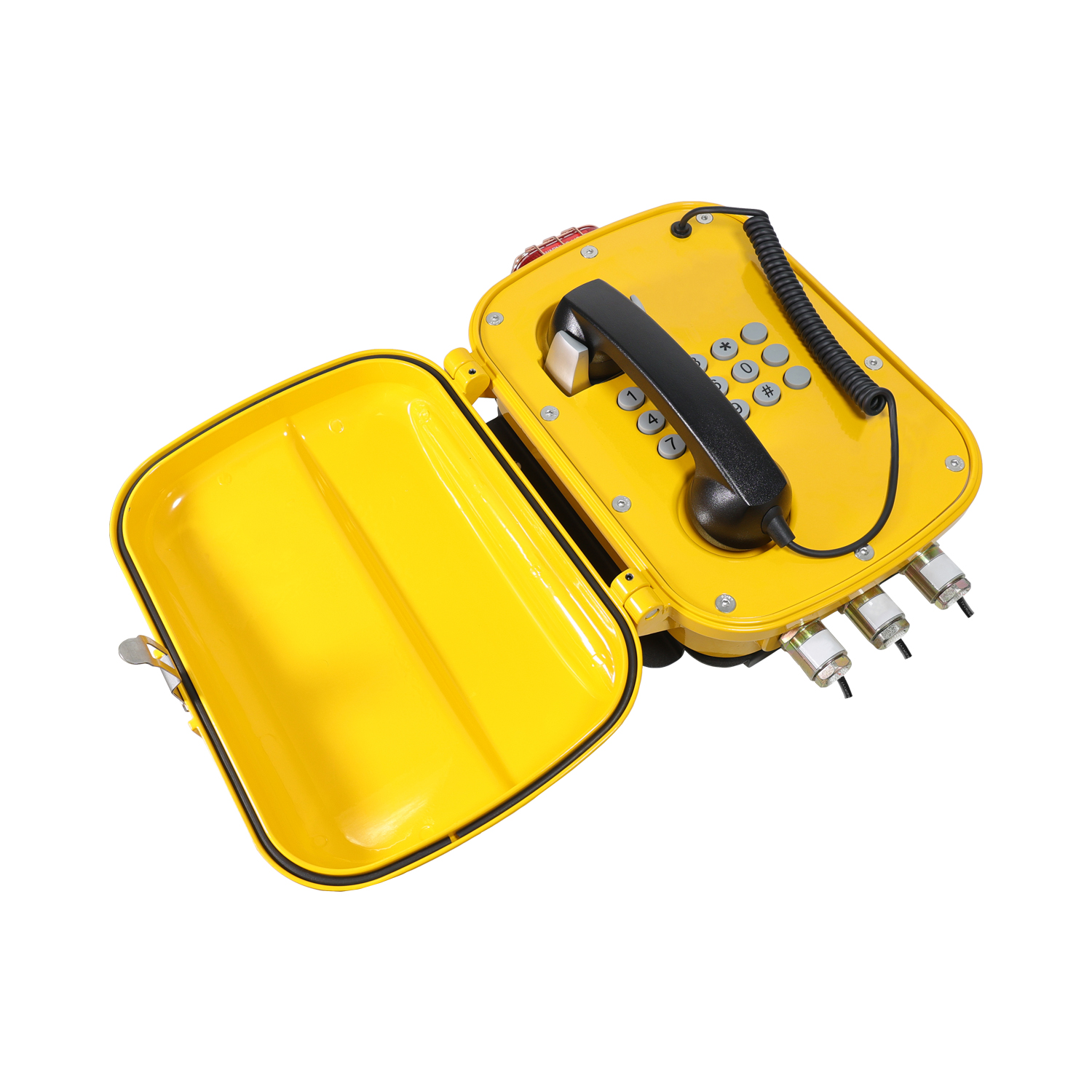

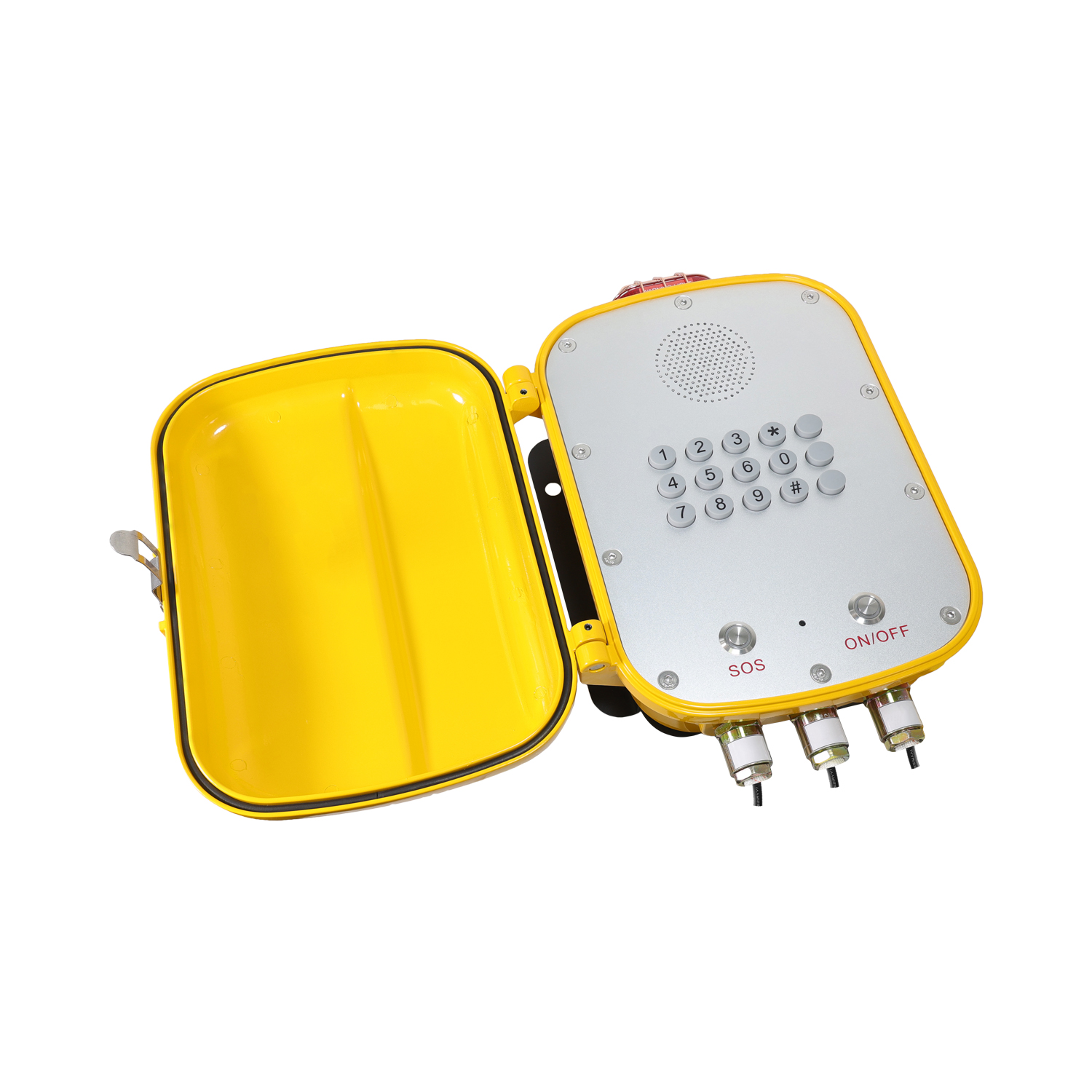

The SIP-EP68N/F Explosion-proof SIP Telephone supports standard SIP protocol, compatible with IP PBX and dispatch systems. Designed for harsh environments like tunnels, mines, and power plants, it resists water, dust, corrosion, and impact for reliable long-term use.

Features:

  • Manual Dialing – after pressing the hands-free key or lifting the handset (fiber version), users can manually dial numbers via the keypad.
  • Auto Dialing – after pressing the hands-free key or lifting the handset (fiber version), the phone automatically dials a pre-stored number.
  • One-Touch Dialing – designated keys can be configured for single-button quick dialing.
  • Point-to-Point Call – supports direct IP-to-IP calling within the same LAN without SIP server registration.
  • Dialing Rule Configuration – allows customized dialing logic, e.g., pressing ‘1’ automatically calls a predefined IP address or phone number.
  • IP Address Announcement – long-press ‘#’ to hear the device’s current IP address.
  • Dual SIP Line Support – supports registration of up to two SIP accounts for flexible communication management.
  • Adjustable Volume – ring and call volumes can be adjusted independently.
  • Network Compatibility – supports both IPv4 / IPv6, with DHCP or static IP configuration.
  • PoE Powered – compliant with IEEE 802.3af, supports power over Ethernet from compatible devices.
  • Integration Interface – multiple I/O contact points available for linkage with external equipment.
Model SIP-EP68N (Network Cable Version) SIP-EP68F (Optical Fiber Version)
SIP Lines 2
DTMF In-band/RFC2833/SIP info
DNS SRV RFC3263
SIP Protocol SIP 2.0
Ingress Protection IP68
Network Features LAN/WAN
Codec G.711(A/μ) / G.729A/B/AB / G.726 / iLBC / G.722/L16
Firewall VPN L2TP,DMZ
Installation Wall-mounted
Housing Material Aluminum Alloy
Color Yellow
Operating Temperature -40℃~70℃
Humidity ≥95%
Dimensions 420*260*150mm
Net Weight 6.2kg 6.5kg
Power Supply 220V AC/5V DC 220V AC
