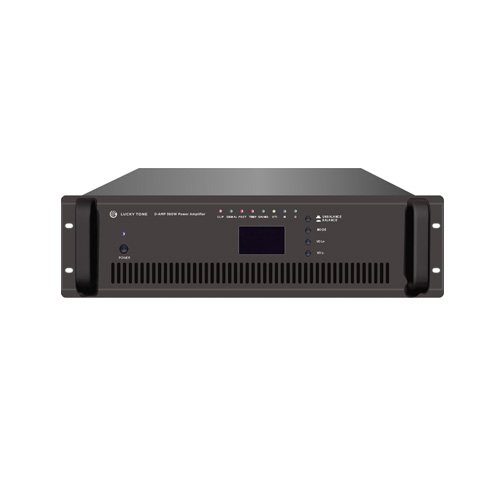

- Public Address and Commercial Audio Systems
Features:
● Ranging from 360W to 660W power capacity
● Reliable and mature technology prevent device from overheat
● Selectable output: 100V, 70V and 4-16 Ohm
● Loudspeaker output with short circuit protection
| MODEL | D-AMP360 | D-AMP460 | D-AMP660 | |
| Rated Power Output | 360W | 460W | 660W | |
| Output Regulation | Less than 3 dB (no load to full load) | |||
| Speaker Output | 13.6 ohms (70V), balanced | 10.7 ohms (70V), balanced | 7.4 ohms (70V), balanced | |
| 27.8 ohms (100V), balanced | 21.7 ohms (100V), balanced | 15.1 ohms (100V), balanced | ||
| Low impedance: 4-16 ohms, balanced | Low impedance: 4-16 ohms, balanced | Low impedance: 4-16 ohms, balanced | ||
| Input | Less than 1V, unbalanced, 10K ohm, XLR and phone jack | |||
| Output | 10K ohm, 0.775V, 0dB, XLR and phone jack | |||
| Frequency Response | 60 – 15,000 Hz, +/- 3dB | |||
| THD | Less than 0.5% at 1KHz (1/3 Rated Power) | |||
| S/N Ratio | Better than 70dB | |||
| Slew Rate | 15V/Us | |||
| Controls | Volume control and power switch | |||
| Cooling | Internal 12VDC fan, extensive heat sinking | |||
| Indicators | Power, Clip, Signal, Protect, and Temp LEDs | |||
| Protection | AC Fuse: 10A | AC Fuse: 12A | AC Fuse: 15A | |
| Current limiter, short circuit and thermal protection circuits | ||||
| Power Consumption | 485W | 620W | 880W | |
| Power Requirement | AC 220V ± 10% 50-60Hz | |||
| Dimensions | 133(H) x 496(W) x 483(D) mm | |||
| Net Weight | 15.50kg | 18.10kg | 20.1kg | |
| Gross Weight | 17.10kg | 19.70kg | 21.7kg | 21.7kg |
