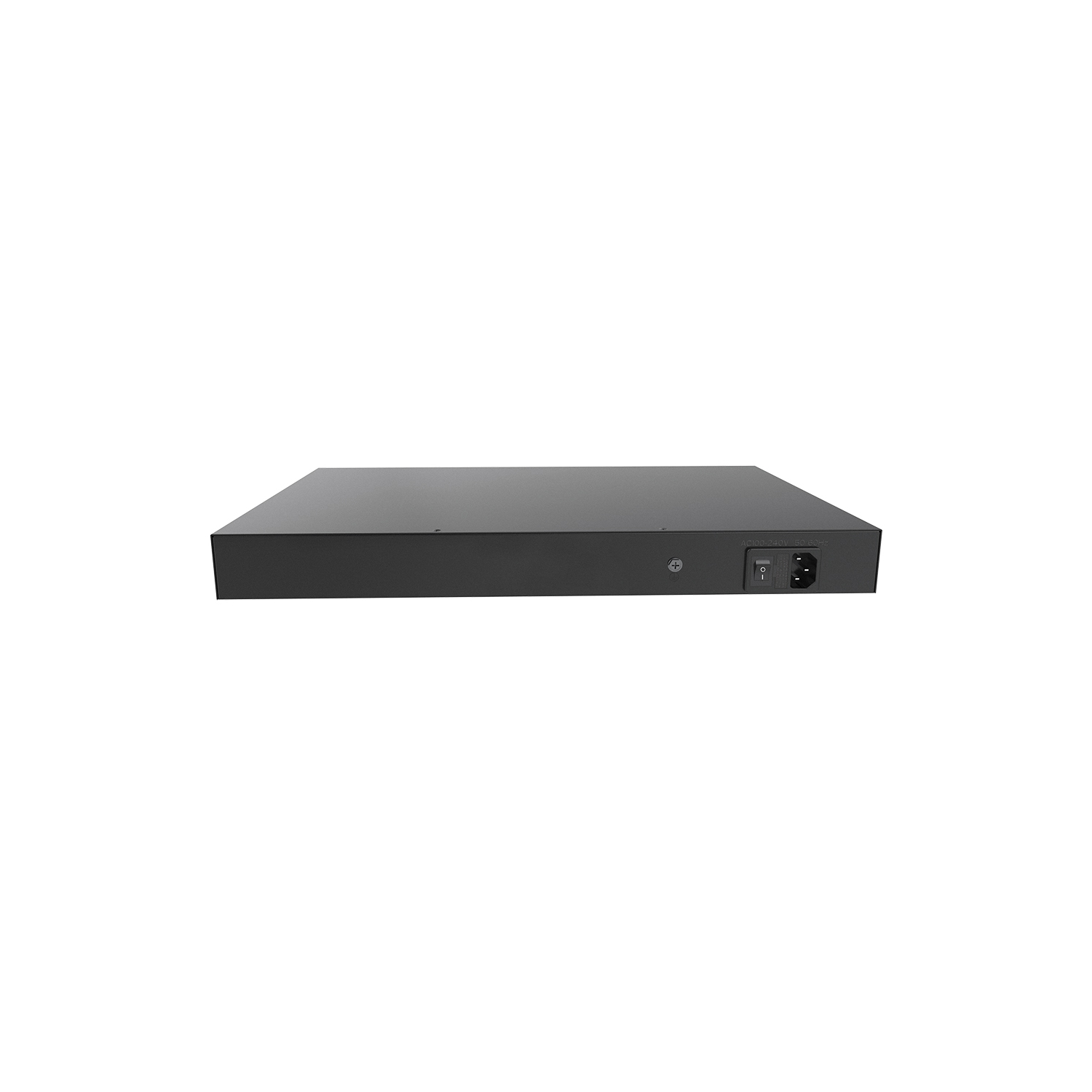

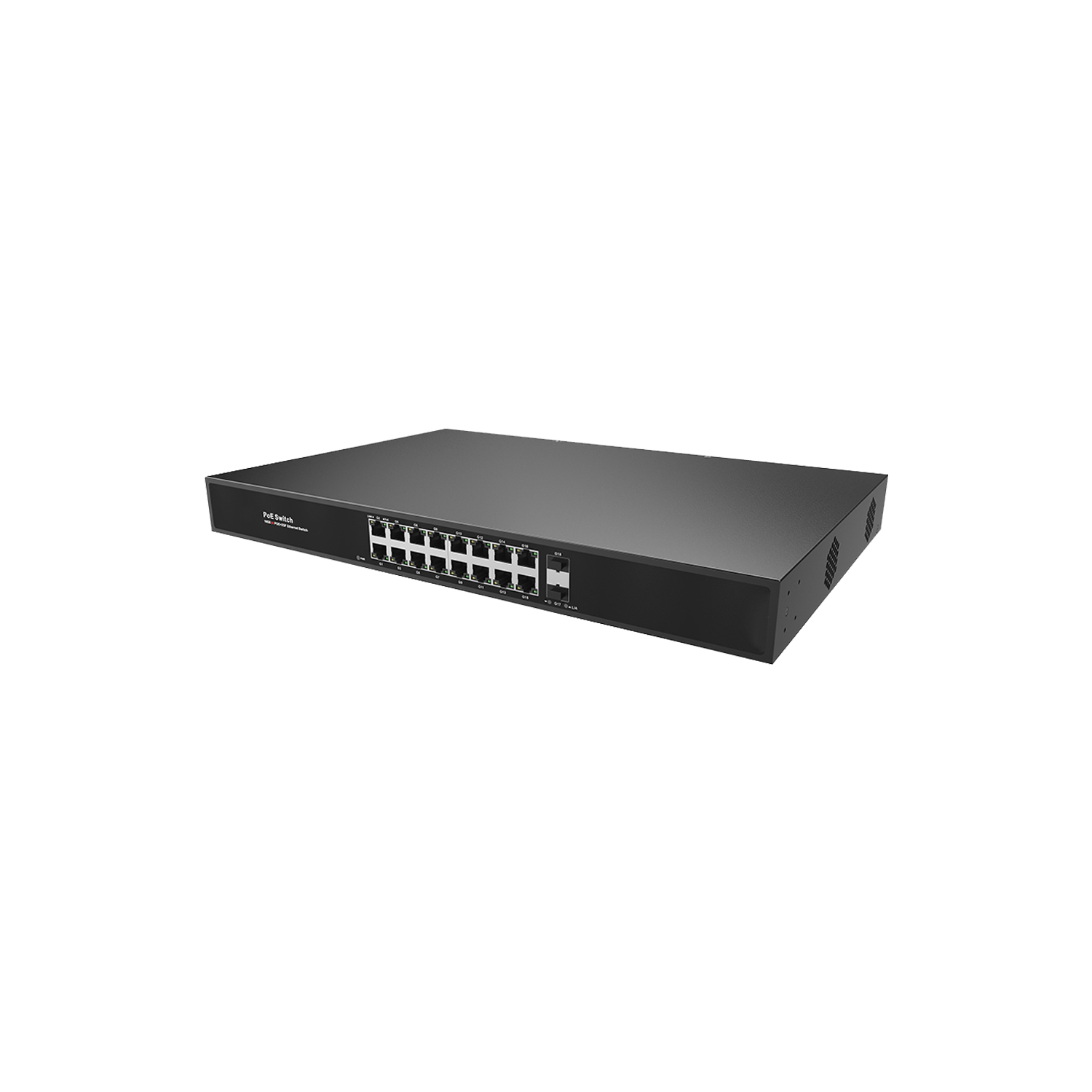

Network Switch with 16 POE Ports

  • Sixteen10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply.
  • Single port power supply up to 90W, total power supply up to 120
  • Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
  • Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
Get a Quote
Downloads
Model POE16P90
Transmission Rate 10/100/1000Mbps
Max. Power Per Port 90W; IEEE802.3af/at/bt
Total Power 1200W
Fixed Port 2*1000M uplink SFP ports (Data)

16*10/100/1000M bt PoE ports (Data /Power)
Ethernet Port Port 1-16?support 10/100/1000Base-T(X)

auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Switching Capacity 52Gbps (Non-blocking)
Power Supply AC100~240V 50-60Hz
Dimension (L*W*H) 440*378*44.5mm
Net Weight 5.2kg
