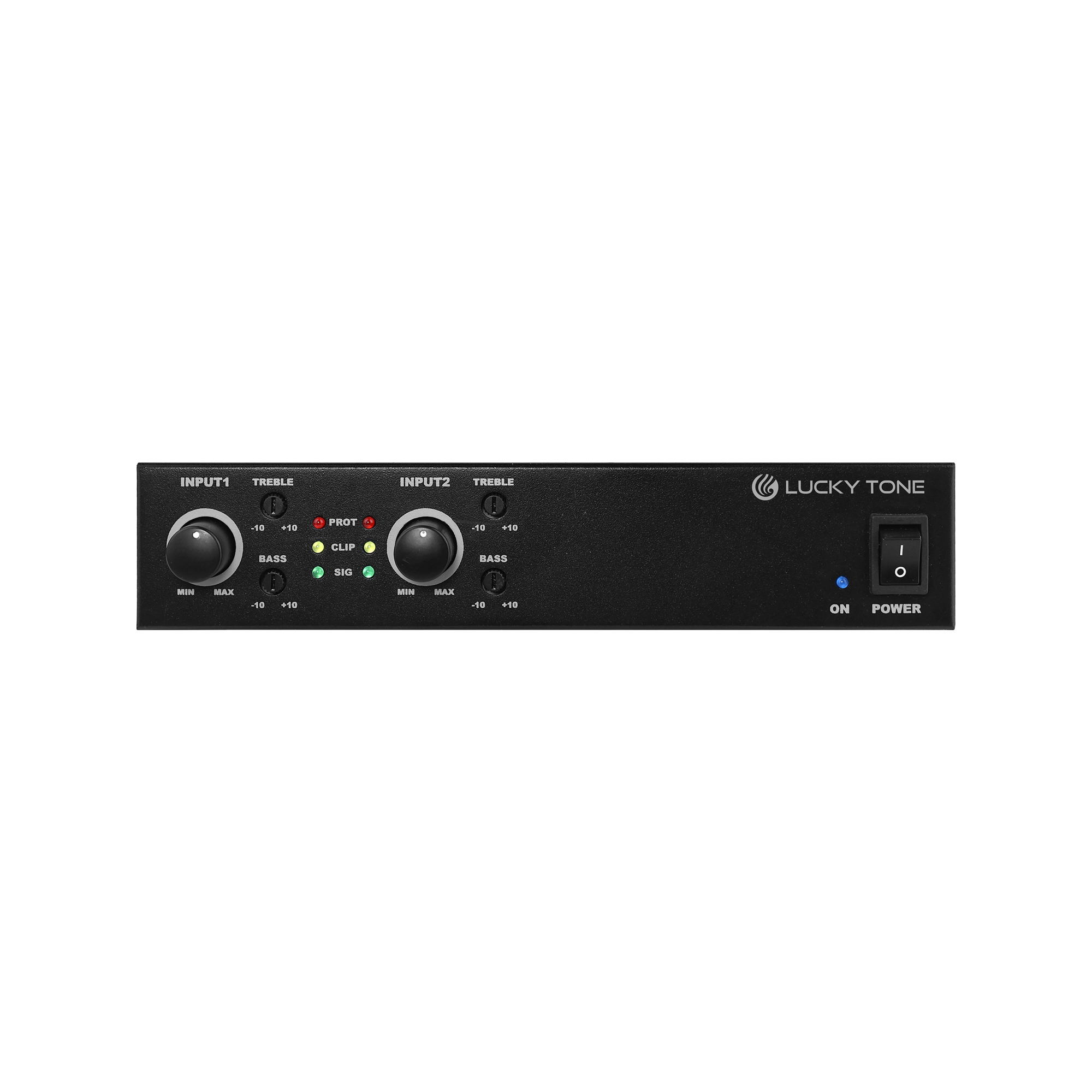

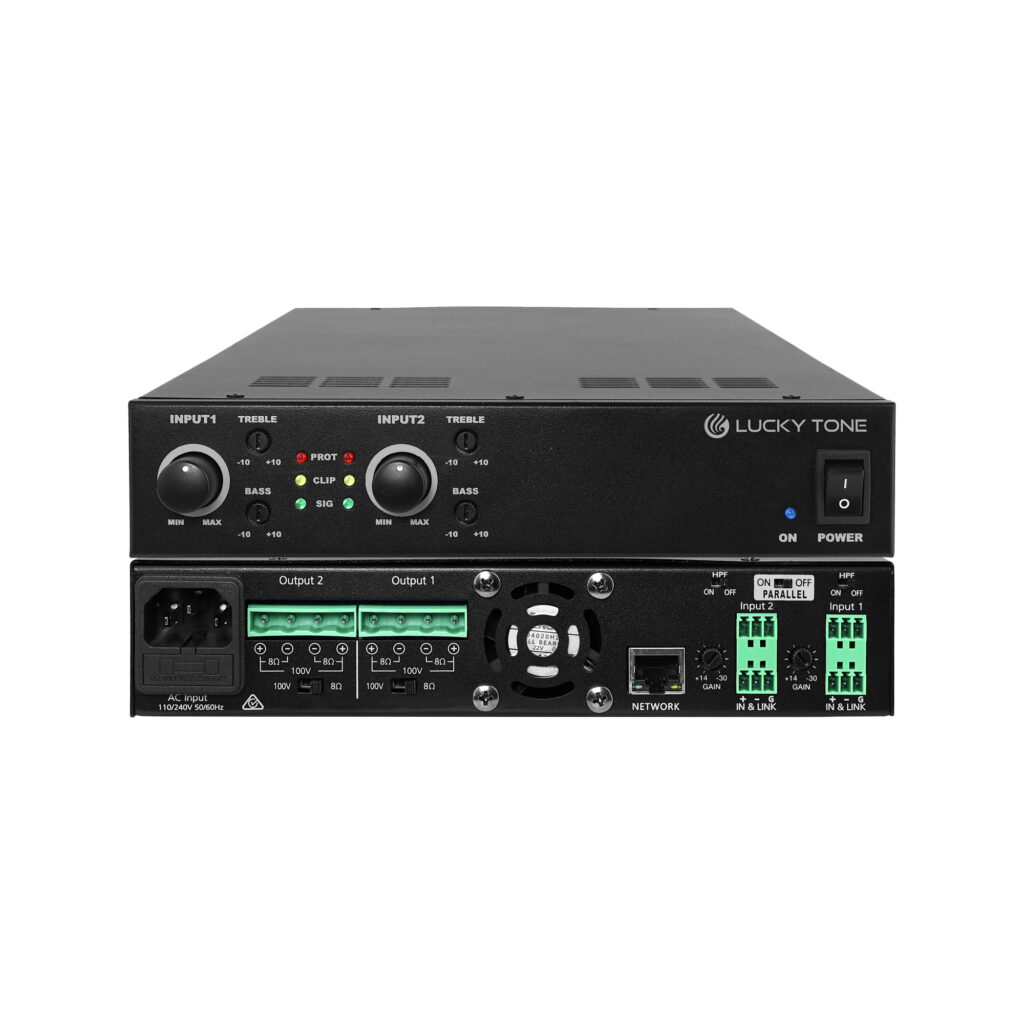

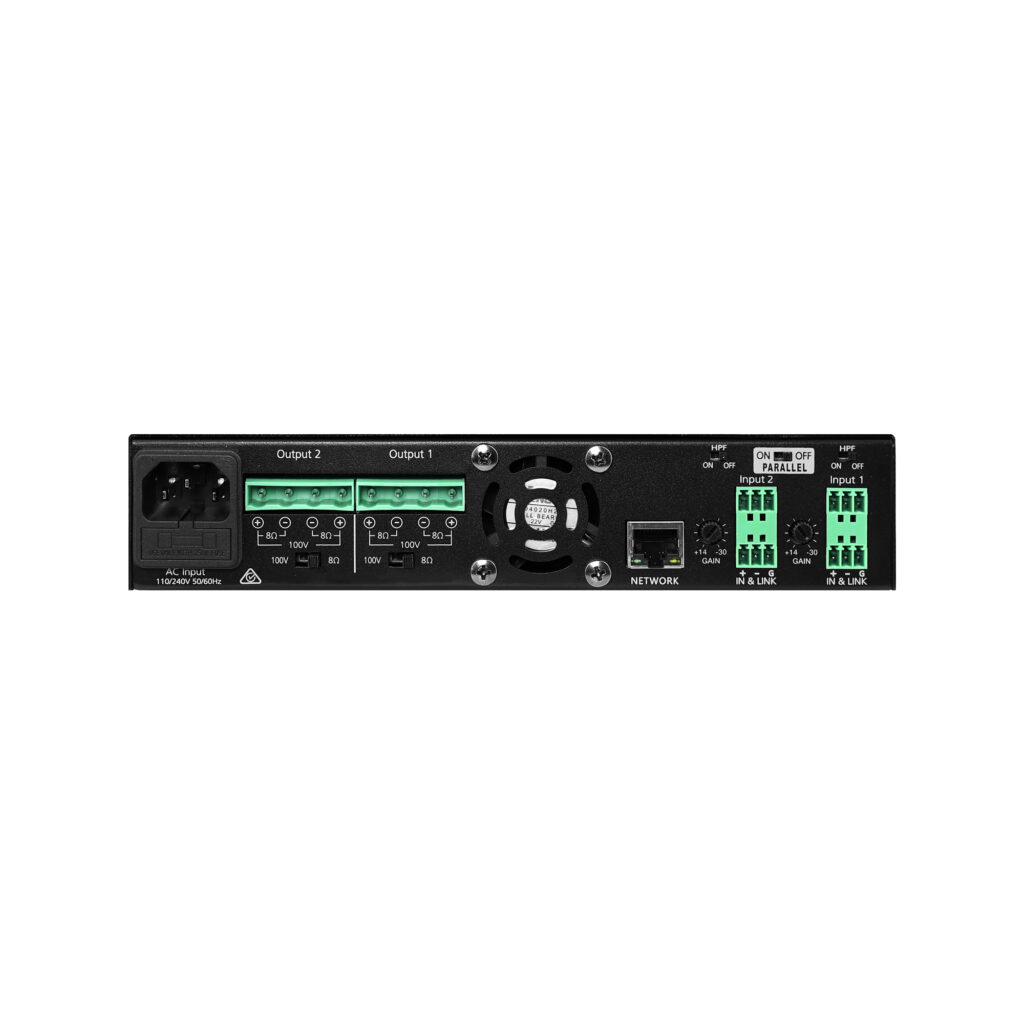

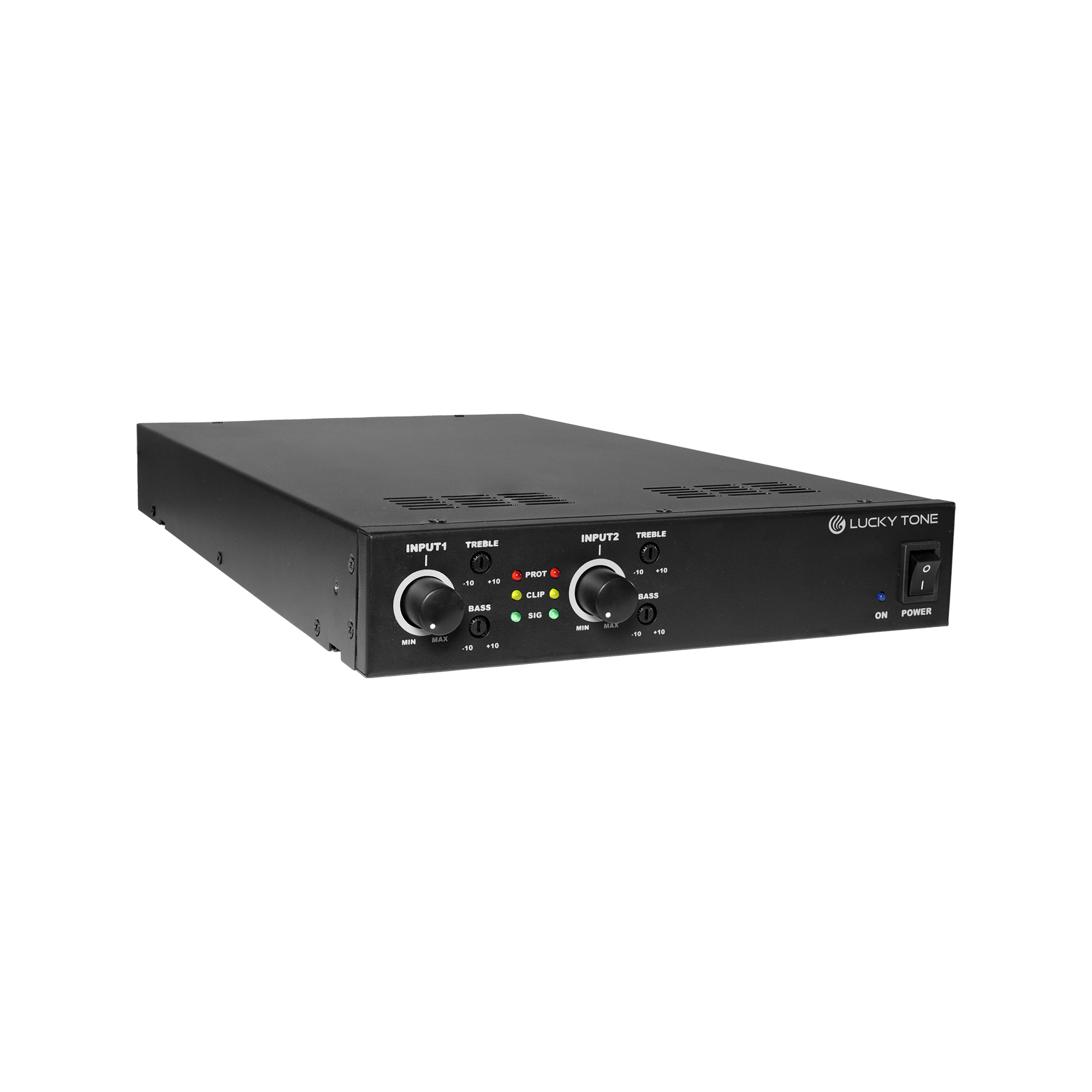

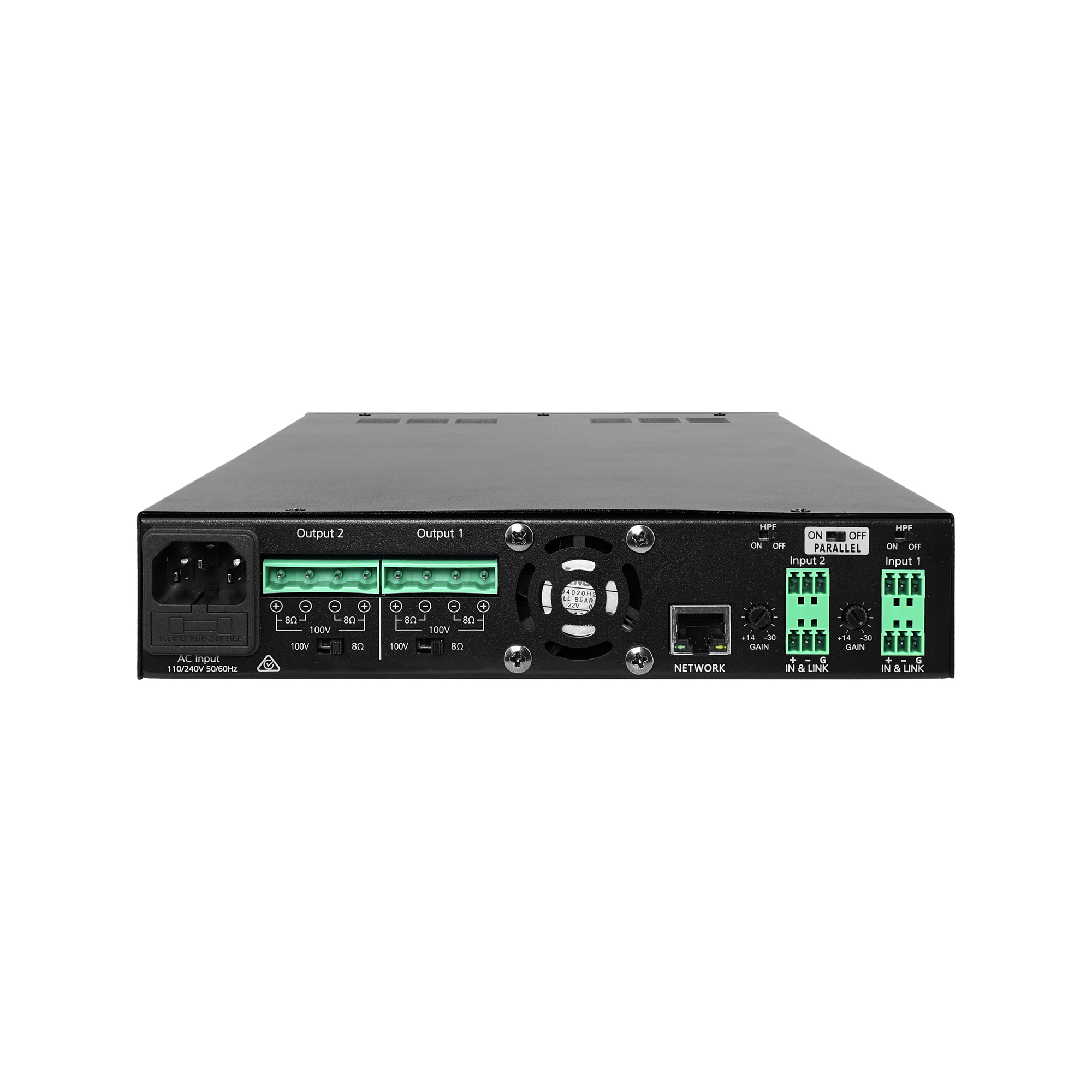

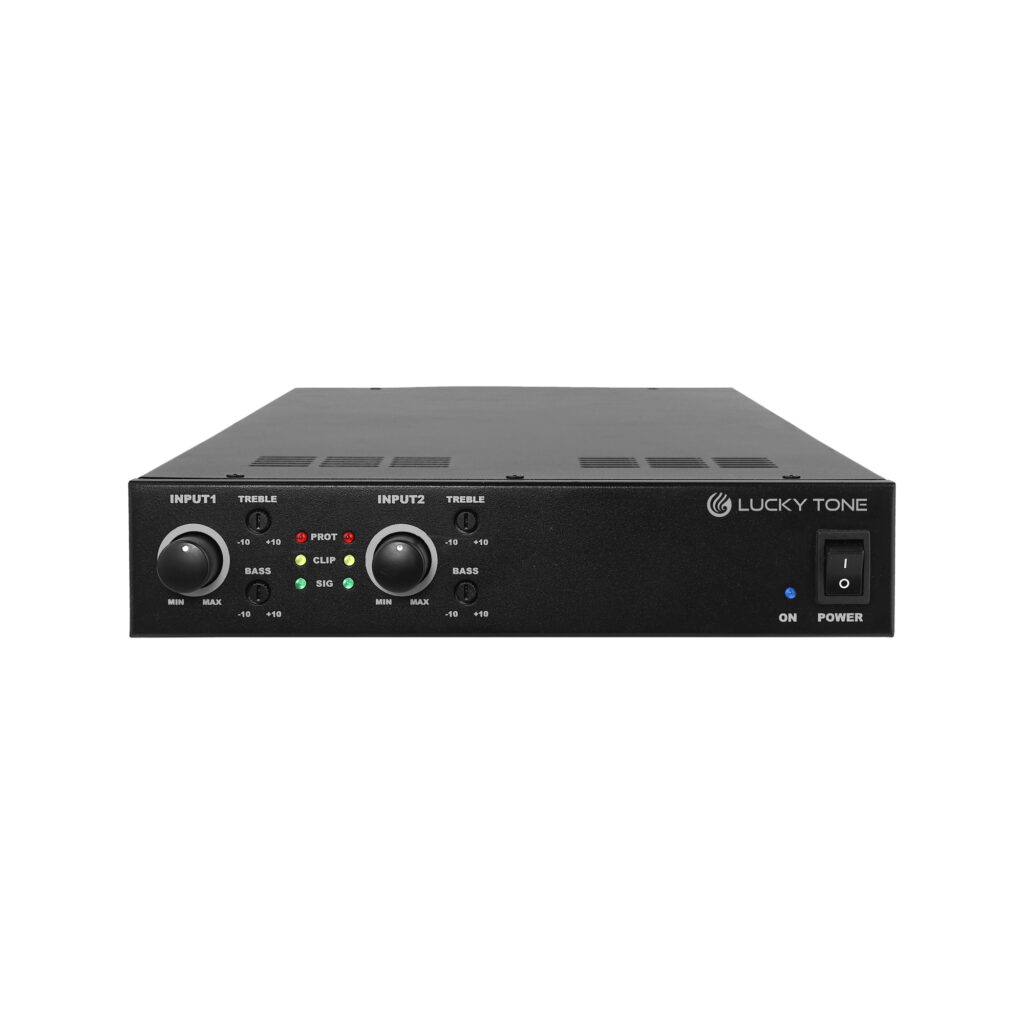

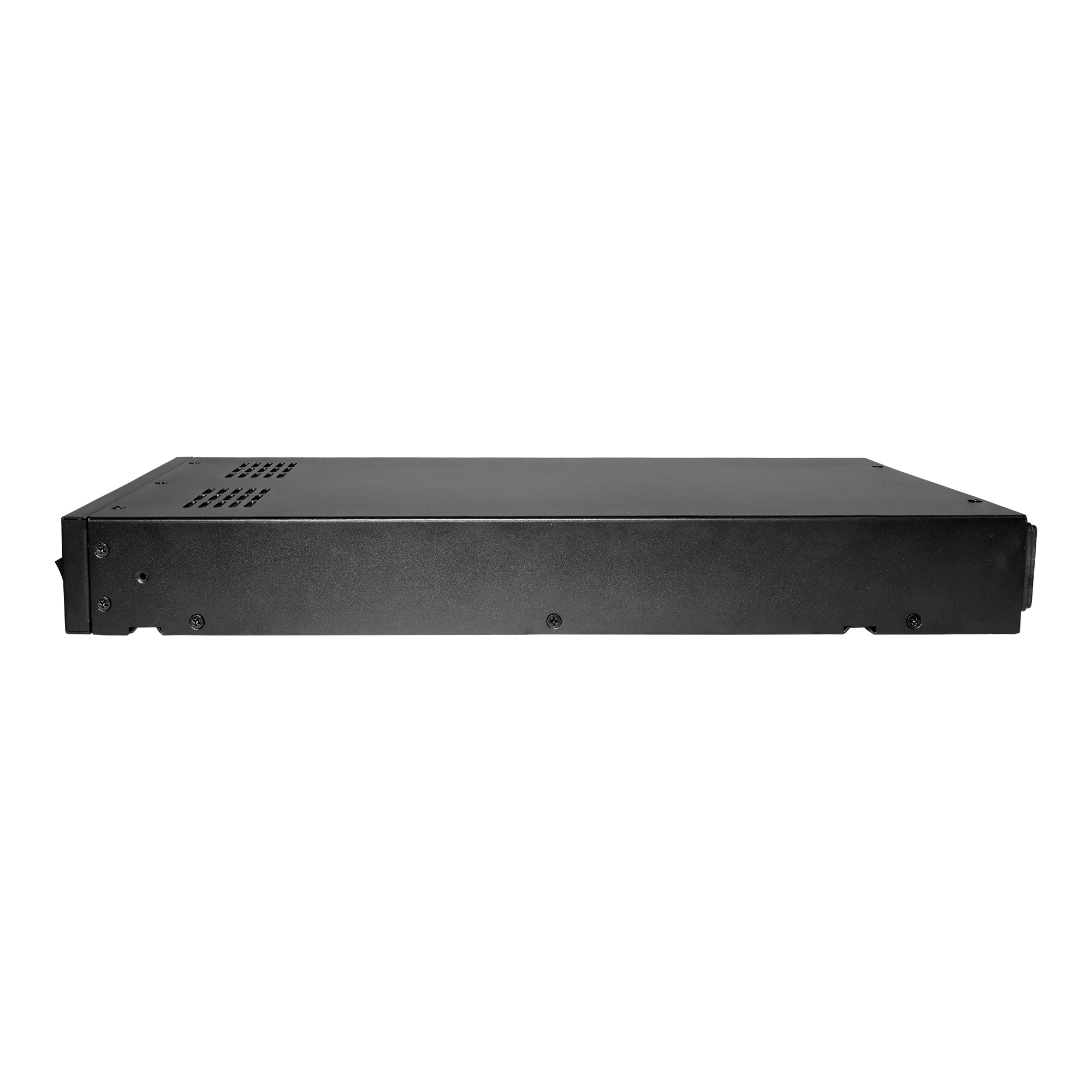

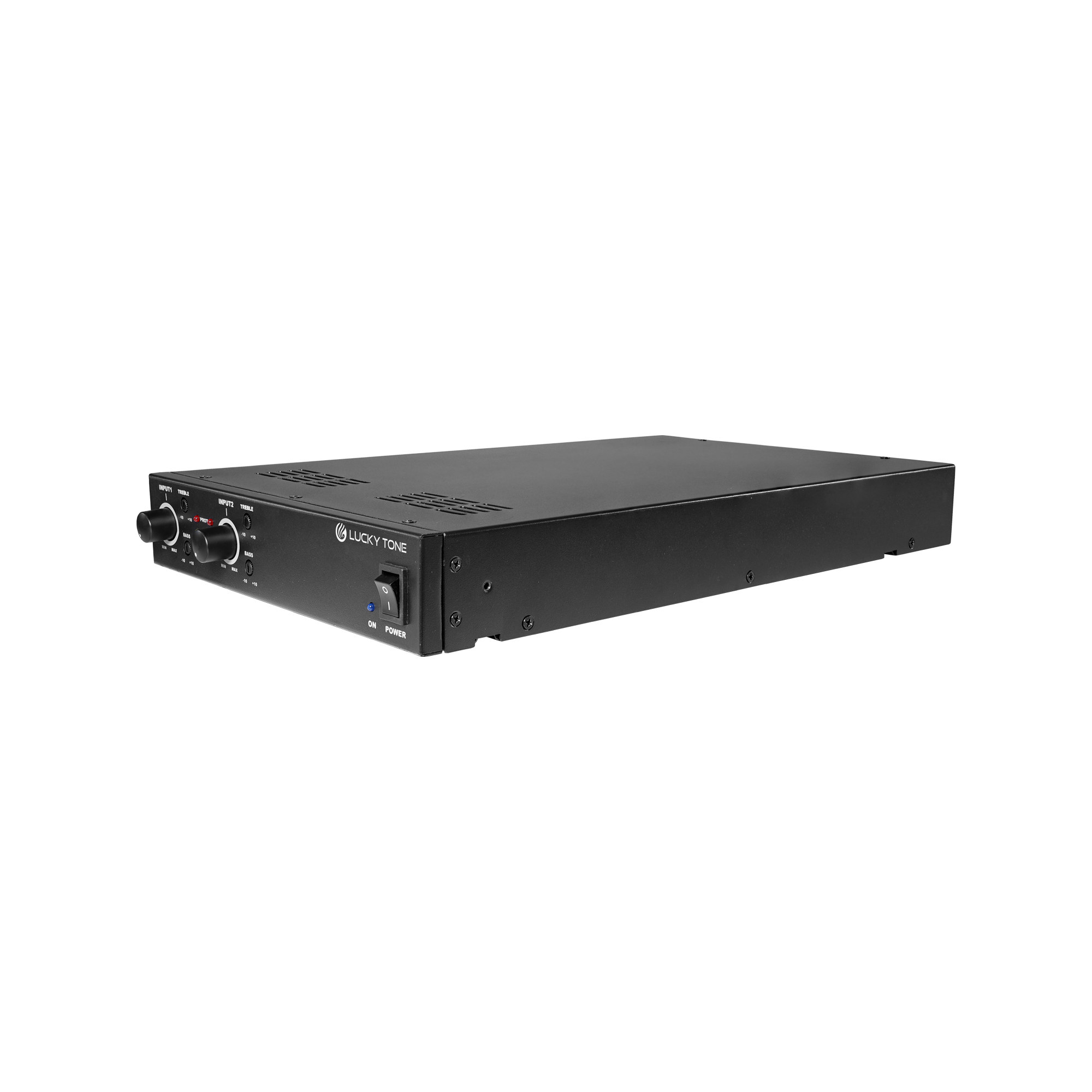

Dante Network Amplifier

Features

Receives input directly through Dante audio network
Expansive Dante network functionality for flexible system expansion
Seamless Dante-to-amp and amp-to-Dante audio conversion
Professional-grade SNR and THD+N performance
Ultra-low inrush current – no sequenced power required
Dante-enabled: Transmits high-quality, low-latency digital audio over standard Ethernet
120Watts ~ 480Watts output
Advanced protection system includes current limiting, over current and thermal protections
Desktop type with rack mount bracket
Two bands tone controls
Low distortion and low noise level
Compact in Size and easy to install
Ideal for commercial, educational, transportation, and industrial applications requiring networked audio solutions

Model	HA-1120 Dante HA-2120 Dante	HA-1250 Dante HA-2250 Dante	HA-1500 Dante HA-2500 Dante
Rated Power at 8ohm	2x60W/4x60W	2x120W/4x120W	2x240W/4x240W
Bridged Power at 100V	120W/2x120W	240W/2x240W	480W/2x480W
Power Consumption	195W/360W	325W/635W	588W/1120W
Network Communication Protocol	Dante
Network Interface	10/100Base-TX, RJ45
Input sensitivity / Impedance	-0dBu/10kohm Balanced
Power Supply Voltage	AC 100-120V, 50/60Hz or AC220-240V, 50/60Hz
Speaker Output	100V / 8Ω
Frequency Response	80Hz~17KHz ( +1dB /-3dB )
S/N Ratio	>80dB (with A-Weight)
T.H.D	<1% (at rated power, 1kHz)
Working Humidity	90%
Output Channel	1 or 2 channel
Tone Controls	Bass:100Hz(±10dB), Treble:10KHz(±10dB)
Working Temperature	0℃~+40℃
Product Dimension (WxHxD)	21544330 mm/21544380 mm (Half-Rack)
Net Weight	3.3kg/3.6kg
