Dante 4 In 4 Out Transmitter

Features:

  • Ideal interface to increase the number of microphones or AUX inputs
  • 4 balanced line outputs can be used simultaneously and all audio channels are used with Dante network.

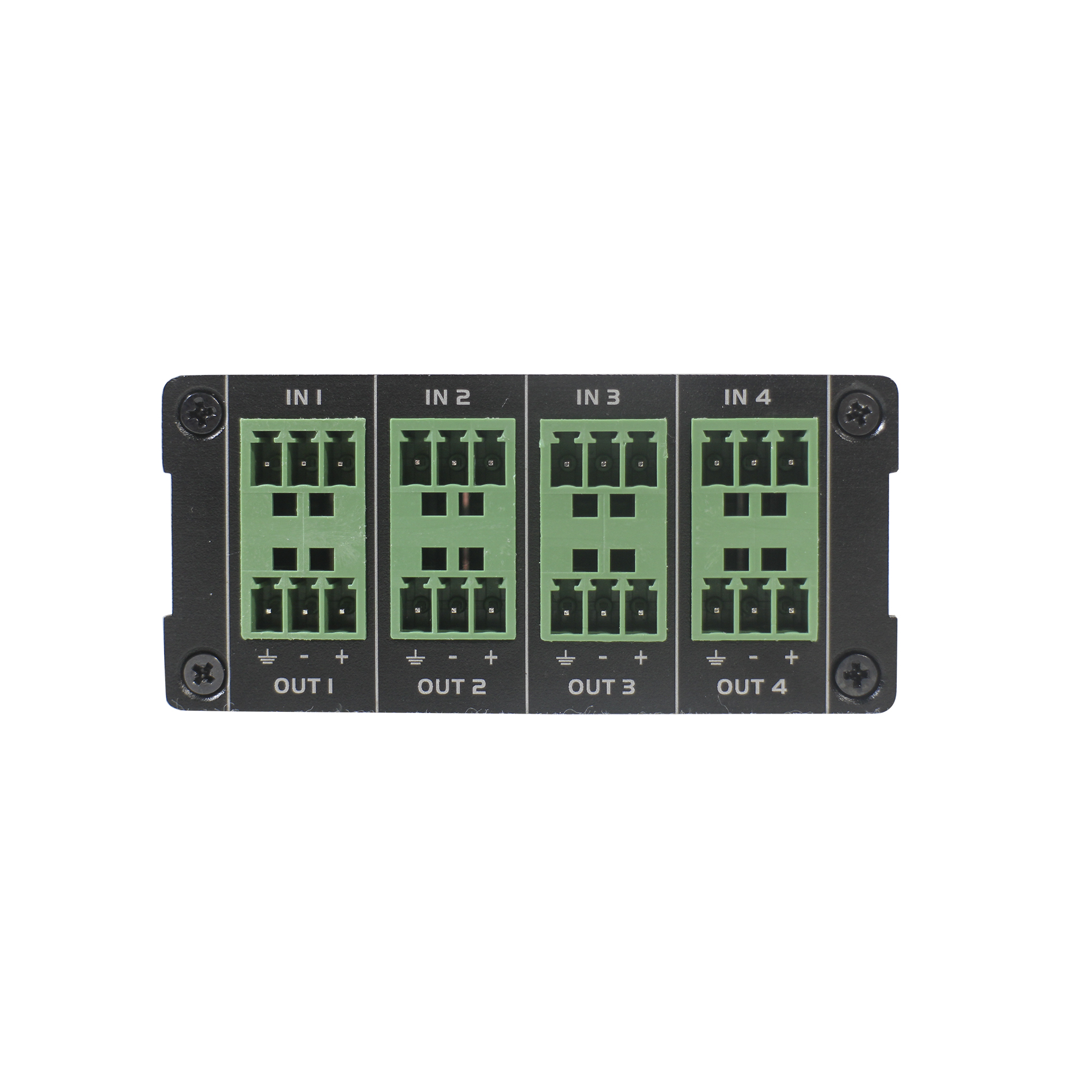

  • 4 balanced MIC/AUX inputs, and also 4 outputs using phoenix connector
  • CAT5/6 connector to link with Dante network and controlledby Audinate
  • Small size integrated mounting bracket which can be installed in very limited space
Model
Dante 4by4i/ Dante 4by4i POE
Input
4 balanced/unbalanced input
Input Impedance
10K Ohm
Max. Input Level
+2dB
Output
4 balanced/unbalanced output
Output Impedance
10K Ohm
Max. Output Level
+2dB
Freq. Response
20~20KHz, ±1dB
THD
0.01%
Power Requirements
12V DC or 12V DC or POE
Dimensions
123x75x35 mm
