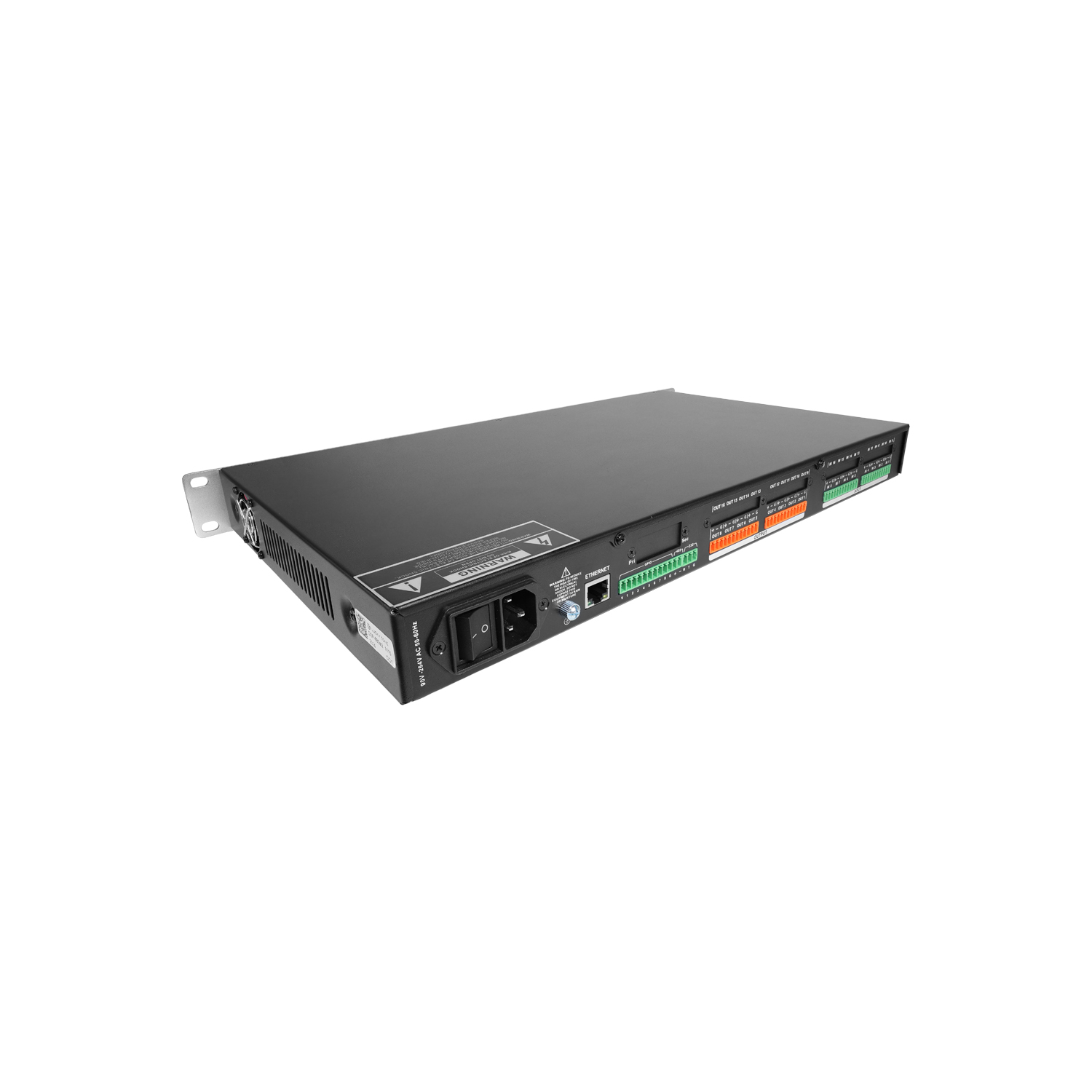

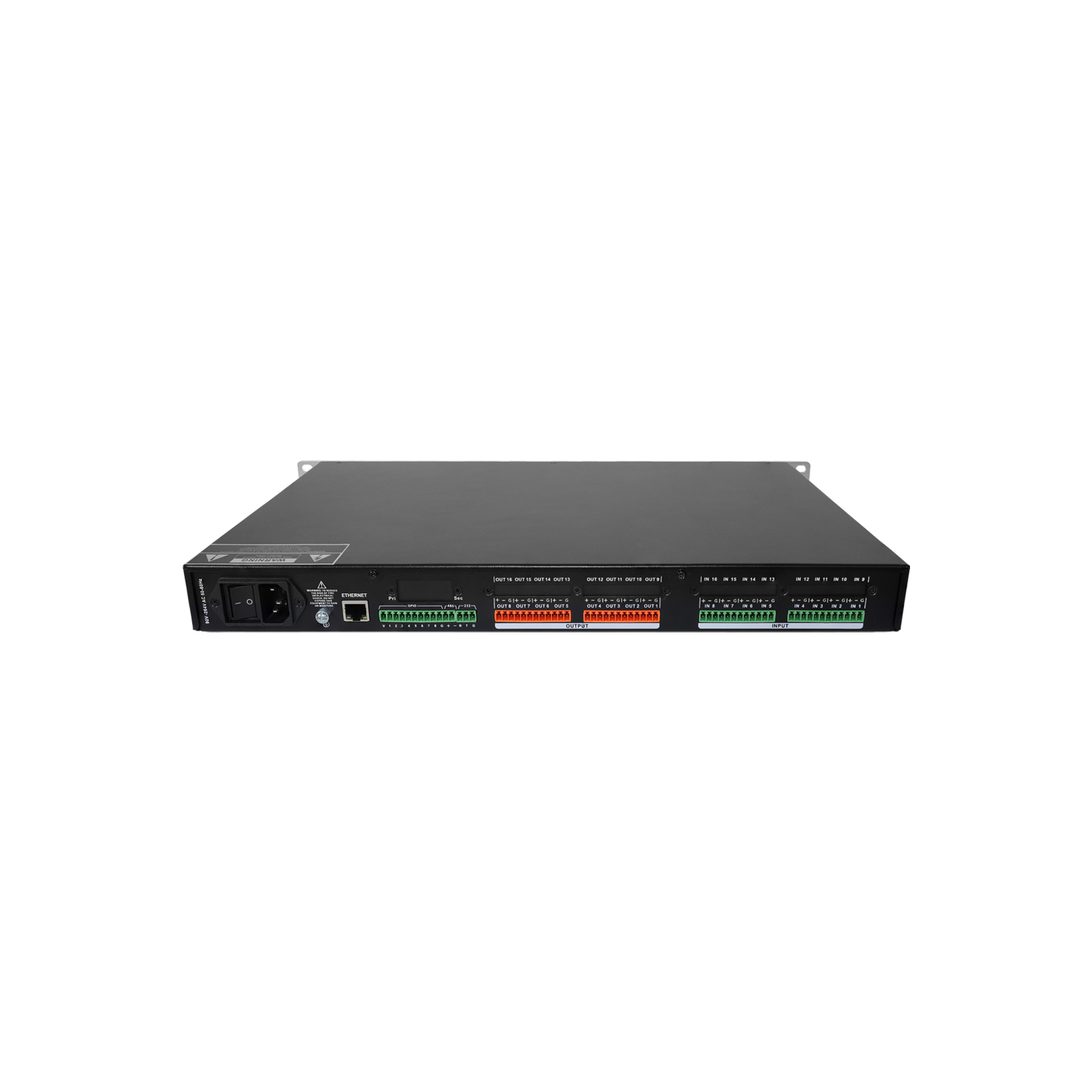

8 In 8 out DSP Audio Processor with AI Smart Function

Description

The DSP-880ai2 & DSP-880aid2 is an 8 in 8 out automatic mixing media matrix featuring 8 analog inputs and 8 analog outputs. It comes with built-in DSP functions such as feedback suppression, automatic mixing, matrix mixing, equalizer, crossover, compressor, AGC (Automatic Gain Control), AEC (Acoustic Echo Cancellation), and ANC (Active Noise Cancellation). The device is controlled via a driver-free USB connection to computer software, or remotely via RS232, RS485, or TCP/IP. Meet the needs of audio processors and transmission in various places, such as conference rooms, multi-function halls, conference centers, auditoriums, administrative centers, etc.

Features

• 48V phantom power for each input channel.
• Microphone preamplifier on each input channel, with adjustable gain from 0 to 40dB in 1dB steps.
• Stereo USB sound card functionality supporting playback and recording.
• USB interface for computer software control and sound card transmission.
• RS232 interface for computer software control and central control functions.
• RS485 interface for computer software control and central control functions.
• Network interface for computer software control and central control functions, allowing management of multiple devices via network connection.
• External 8-channel GPIO interface.
• LCD screen supporting configuration of device name, presets, IP, input/output volume, input mode, and device version viewing.
• Comprehensive DSP functions including AFC (Feedback Suppression), AEC (Acoustic Echo Cancellation), ANC (Active Noise Cancellation), AGC (Automatic Gain Control), AUTO MIX (Automatic Mixing), MATRIX MIX (Matrix Mixing), Noise Gate, PEQ (Parametric Equalizer), Delay, FIR Filter, High/Low Pass Crossover, Compressor, and Limiter.
• 15-band PEQ for input channels and 10-band PEQ for output channels.
• 512 Tap FIR available for each output channel.
• Voice activation function for each input channel, supporting camera tracking with PELCO-D, PELCO-P, and VISCA protocols.
• 60 preset memory locations.

Ordering Code:

DSP-880ai2: 8 In 8 out DSP audio processor AFC,AUTOMIX, RS 232 and camera control with AI smart function

DSP-880aid2: 8 In 8 out DSP audio processor AFC,AUTOMIX, RS 232 and camera control, DANTE Ultimo 4 Channel with AI smart Function
